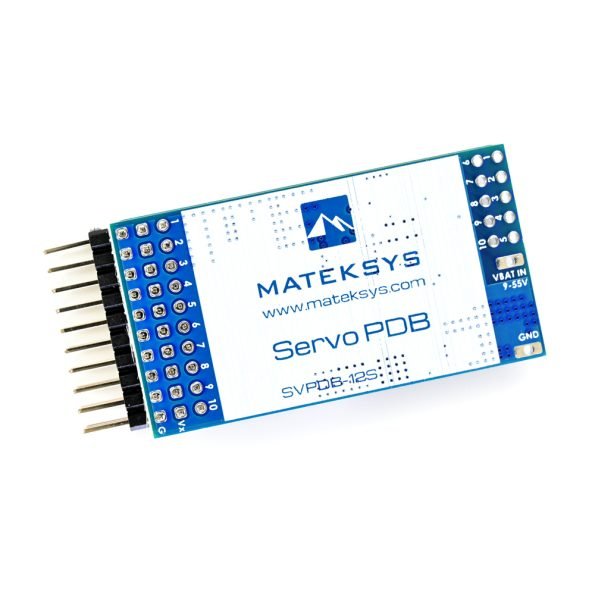

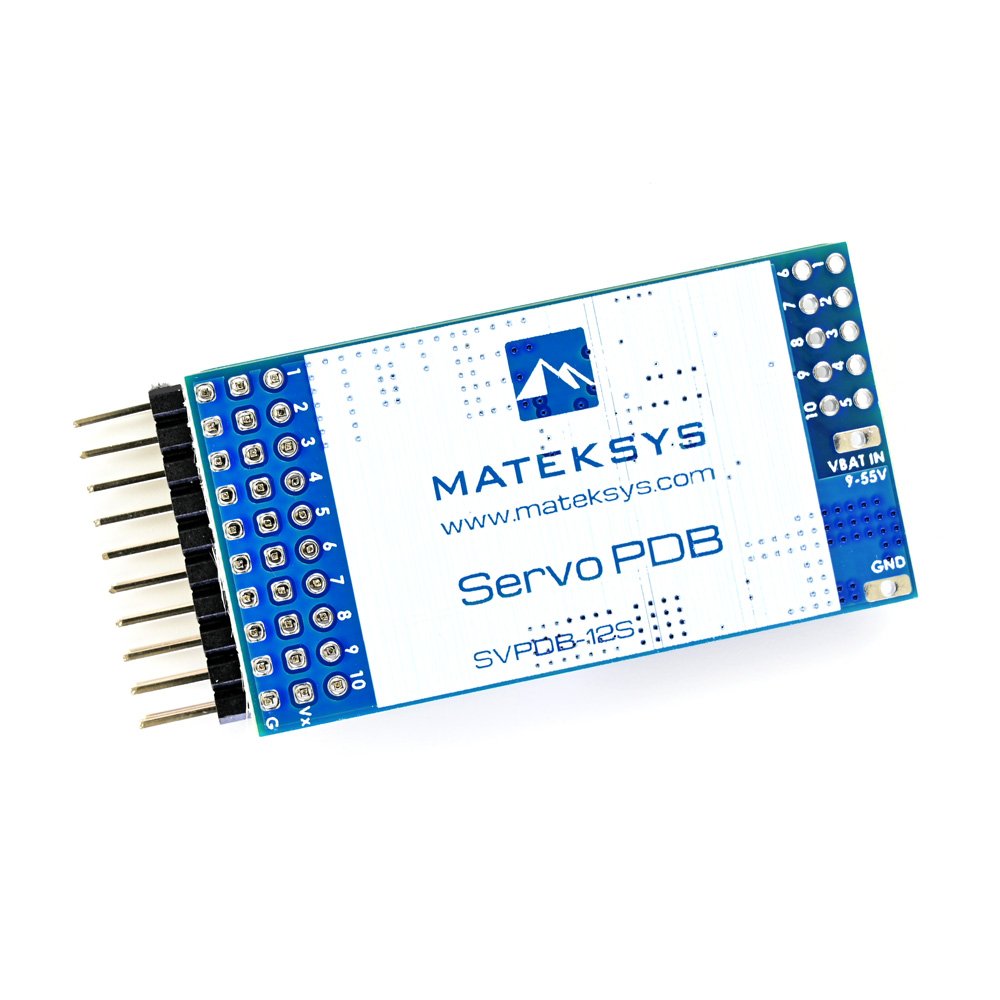

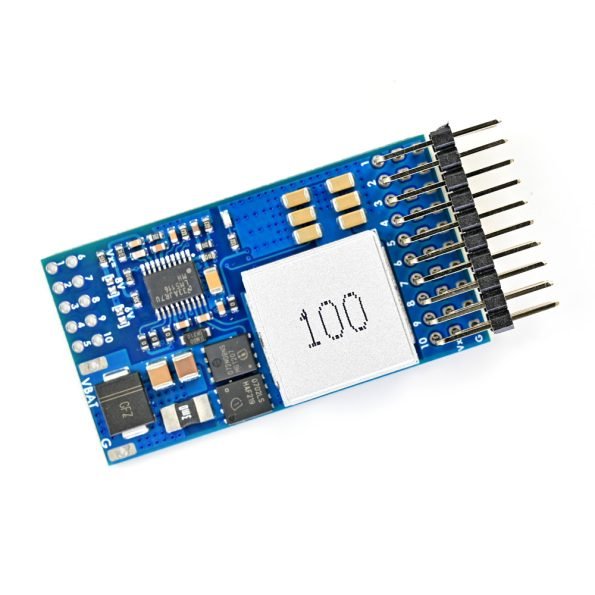

The MATEKSYS Servo PDB w/ 12A BEC 9-55V to 5/6/8V reduces circuit loss and voltage drop on servo power wires for big-scale RC Airplanes and flight controllers without dedicated BEC for servos.

Servo PDB 12S

  • 9V to 55V Operating Input Range
  • Vx for servos,  5V, 6V, 8V Adj. Default is 5V.
  • Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
  • Supports continuous output current of up to 12A,  peak current of 20A.
  • Standby current: 5~10mA
  • No protection for reversed input polarity
  • Thermal Shutdown
  • Output Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery
  • Dropout voltage: 2V  (Input>=10V is required for stable 8V output)
  • Pins distance: 2.54mm

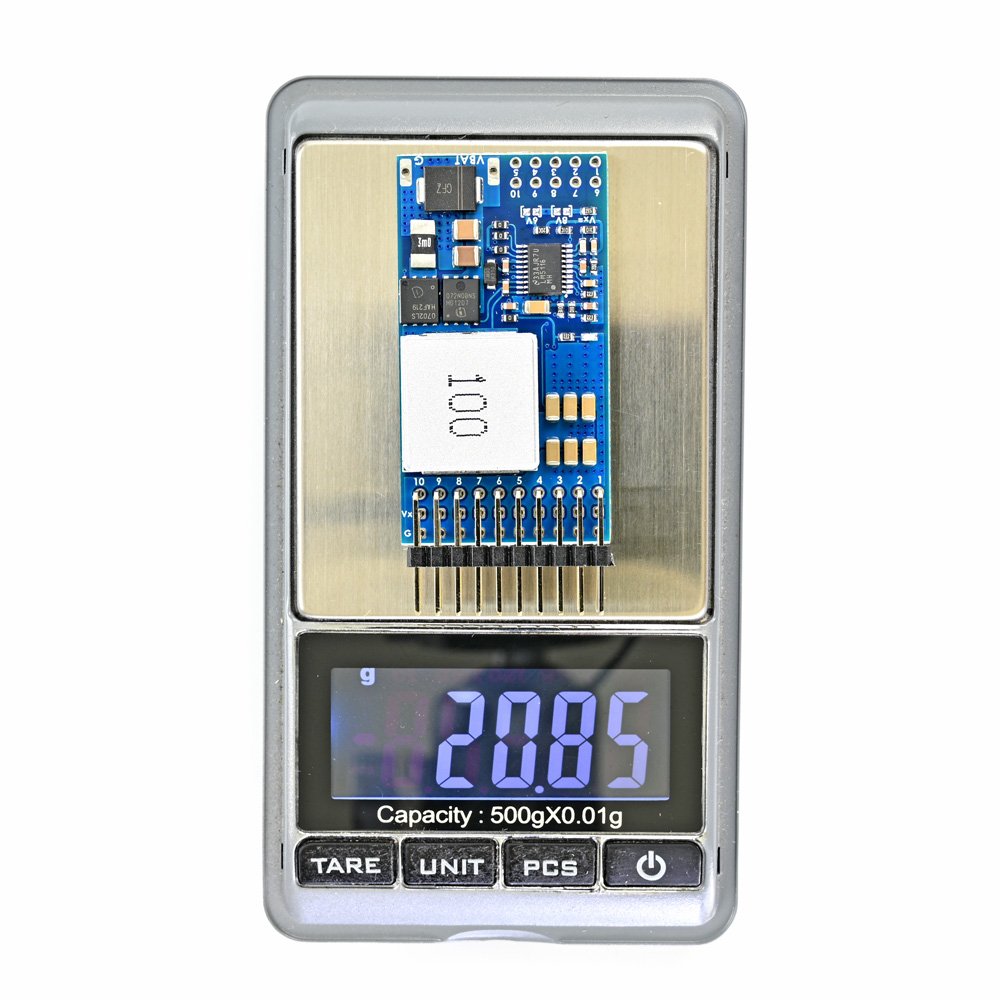

  • Size & Weight: 50 x 27 x 8mm, 18g
  • Packing: 1x SVPDB-12S,  Dupont 2.54mm pins shipped unsoldered
