    Matek H743-SLIM Flight Controller

    Matek H743-SLIM V3 Flight Controller

    $148.80

    Ask a Question


      Share

    The Matek H743-SLIM V3 Flight Controller arrives with new features and improvements over the original!

    This FC is equipped with STM32H743VI, IMU ICM42688P & ICM42605, DPS310, OSD, 7x UARTs, 2x I2C, 1xCAN, 13x PWM outputs, BEC5V, and much more!

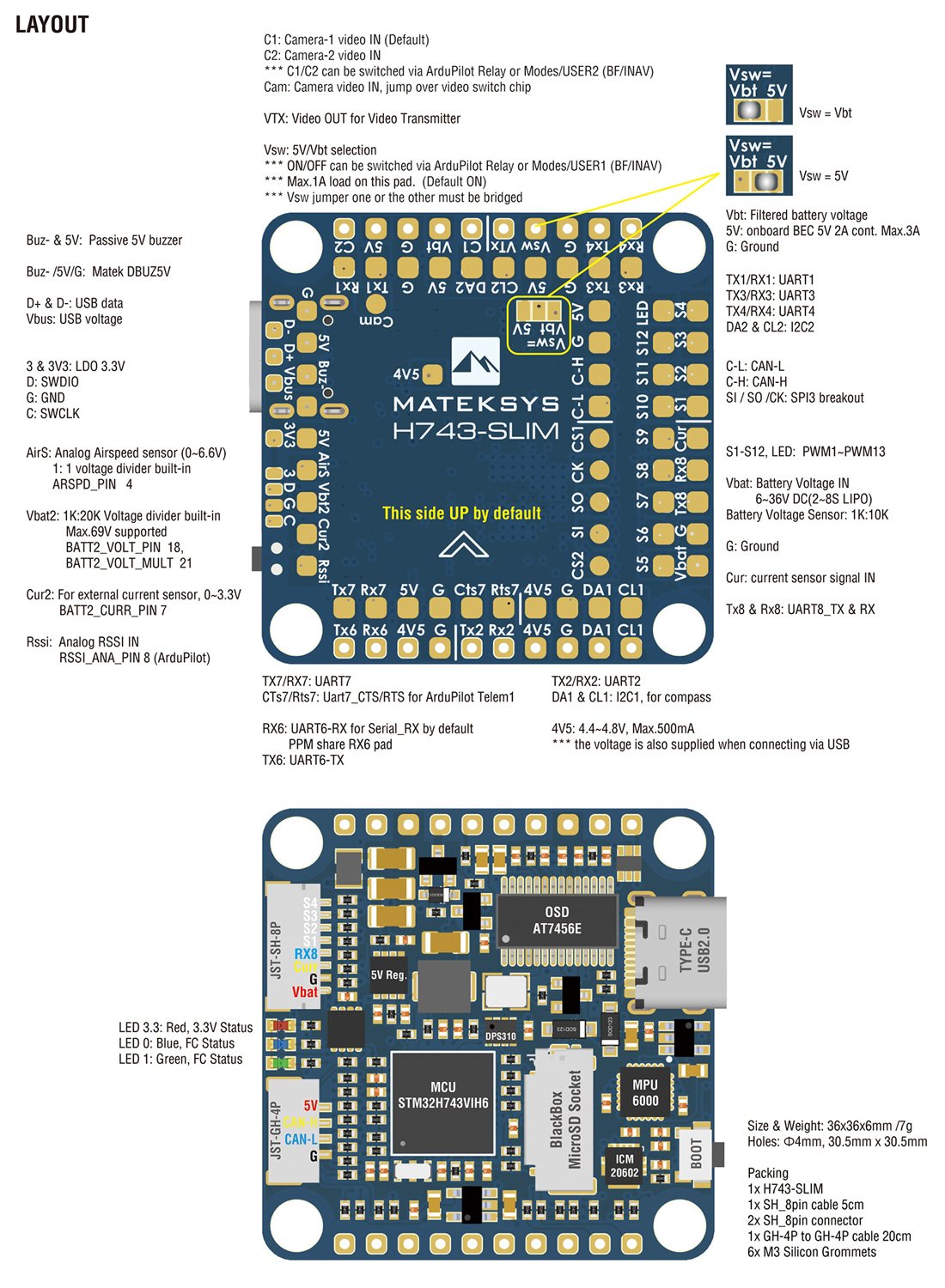

    H743-SLIM V3
    • MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
    • IMU: IMU ICM42688P, ICM42605
    • Baro: Infineon DPS310 (I2C2)
    • OSD: AT7456E (SPI2)
    • Blackbox: MicroSD card socket (SDIO)
    • 7 x Uarts (1,2,3,4,6,7,8) with built-in inversion
    • 13 x PWM outputs(including 'LED' pad)
    • 2 x I2C
    • 1 x CAN
    • 6 x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
    • 3 x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Red)
    • 1 x SPI3 Breakout
    • USB Type-C (USB 2.0)
    • 1 x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
    • 1 x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
    • Dual Camera Inputs switch
    • 5V/Vbat filtered power ON/OFF switch
    • DJI FPV OSD is supported by any spare UART
    Power
    • Vbat Input: 6~36V (2~8S LiPo)
    • BEC: 5V 2A cont. (Max.3A)
    • LDO 3.3V: Max.200mA
    • No Current Sensor Built-in
    • ADC VBat 2 pad supports Max. 69V (voltage divider: 1K : 20K)
    • Static power: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot
    FC Firmware
    • ArduPilot (ChiBiOS): MATEKH743
    • BetaFlight: MATEKH743
    • INAV: MATEKH743 (To be supported soon)
    Physical
    • Mounting: 30.5 x 30.5mm, Φ4mm with grommets Φ3mm
    • Dimensions: 36 x 36 x 5 mm

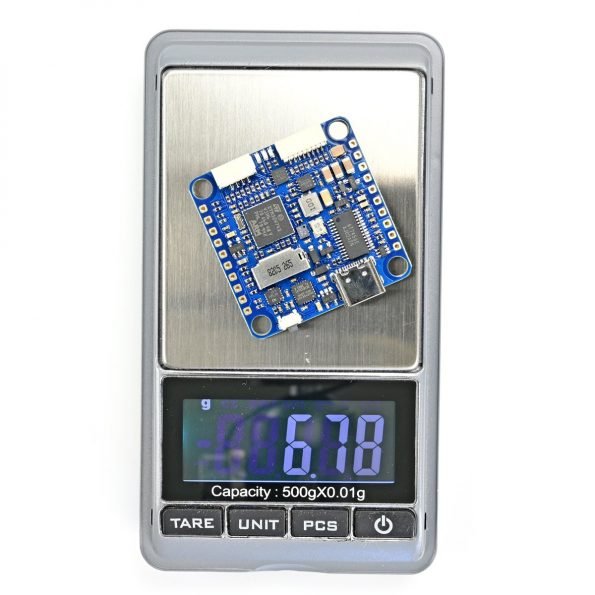

    • Weight: 7g
    Including
    • 1 x H743-SLIM
    • 6 x Silicon grommets M4 to M3
    • 1 x JST-SH1.0_8pin cable, 5cm
    • 2 x JST-SH1.0_8pin connectors
    • 1 x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
