    Matek CRSF-PWM-C PWM Converter

    Matek CRSF-PWM-C Converter


    Ask a Question

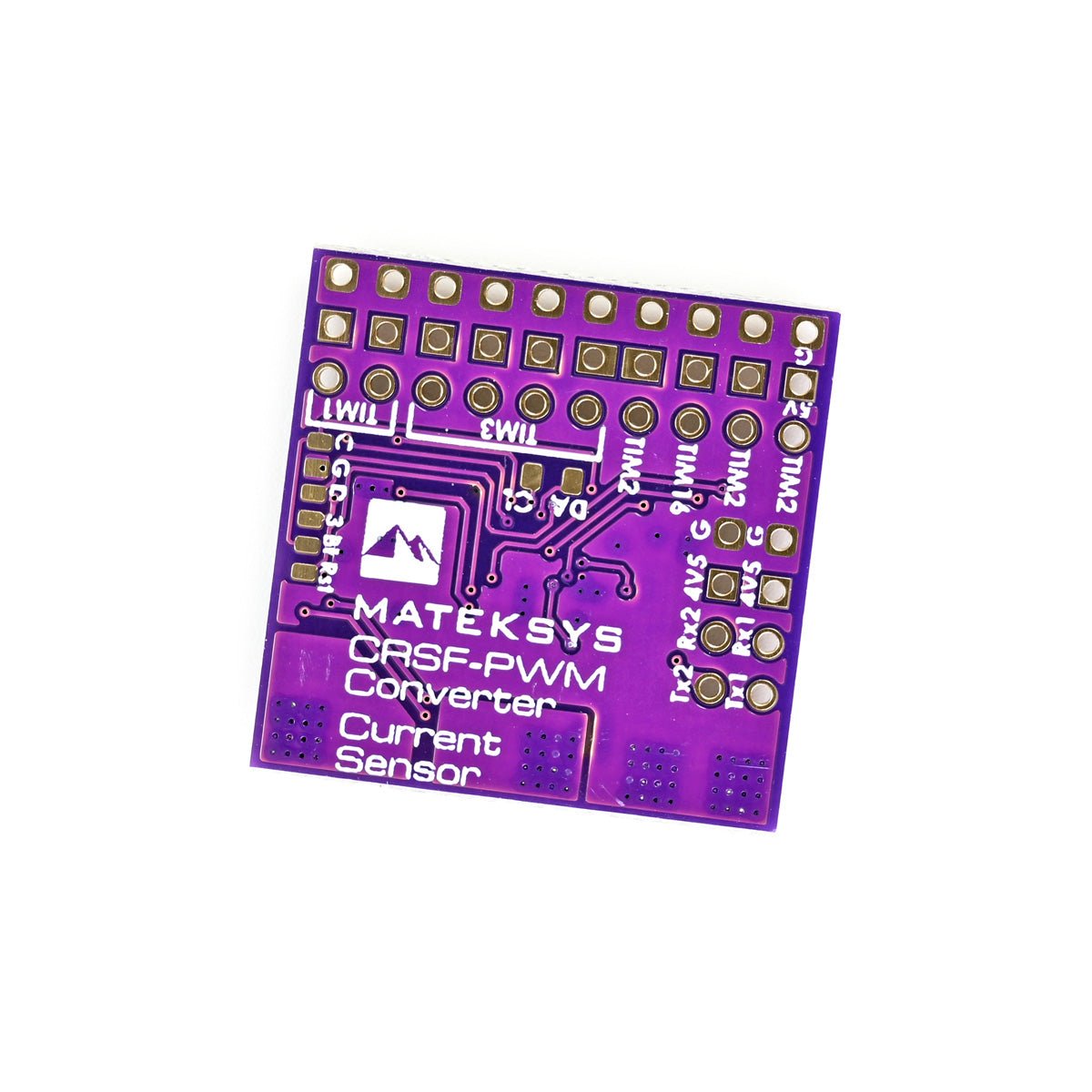

    The Matek CRSF-PWM-C is a Crossfire / ExpressLRS to PWM Converter with 2 UARTS and 10 PWM Outputs. This converter supports any Crossfire Protocol receivers, such as the 433MHz, 868MHz, 915MHz, or 2.4GHz.

    CRSF-PWM-C PWM Converter
    • Compatible with CRSF protocol receiver only
    • Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
    • 10 x PWM outputs
    • PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
    • 2 x UARTs (for Receiver and GPS)
    • Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
    • 36V Max. battery voltage sense (1K:10K voltage divider built-in)
    • Current sensor built-in (90A continuous /220A Peak), current scale = 150 by default
    • Vbat and Current sensor scale configurable
    • Failsafe value auto set
    • Firmware upgradeable
    • Rated voltage: 4~9V @5V pad, 0~36V @BAT+
    • No 5V regulator built-in, Servos must be powered via 5V pad by external 5V source

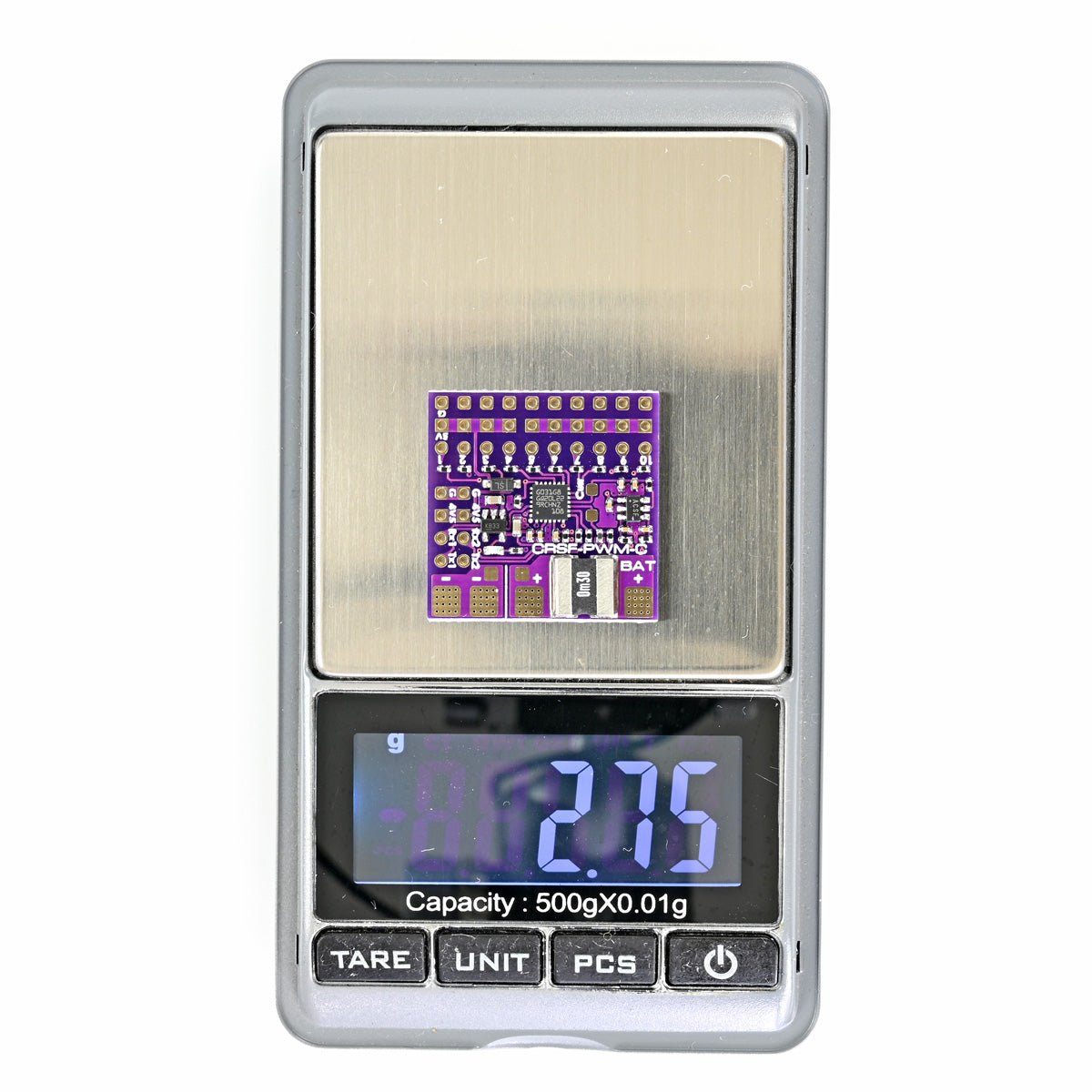

    • 26mm x 26mm, 2.8g

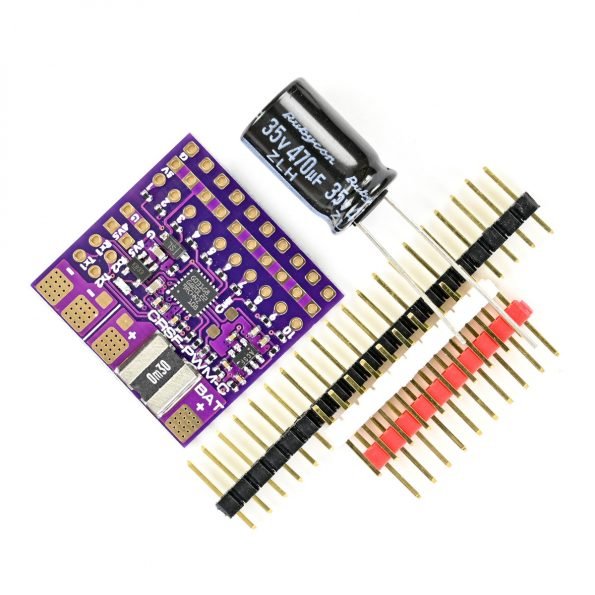

    • 1 x CRSF-PWM-C
    • 1 x Low ESR capacitor
    • 3 x Dupont 2.54 pins
