This Matek CRSF-PWM-V10 board allows you to attach your CRSF receiver and use PWM pins to connect to your wing or plane. This is perfect for those who want the stability of a plane or wing, but also want the dependable long range of the crossfire. It has 10 physical outputs and a built-in variometer.

CRSF-PWM Converter with Variometer, CRSF-PWM-V10

  • Compatible with CRSF protocol receiver only
  • Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
  • 10 x PWM outputs
  • PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
  • 2x UARTs (for Receiver and GPS)
  • Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats, Vspd, Baro Alt (Start with EdgeTX 2.7.1/OpenTX 2.3.15 and ExpressLRS 2.5)
  • 36V Max. battery voltage sense (1K:10K voltage divider built-in)
  • Compatible with external Current sensor (0~3.3V)
  • Vbat and Current sensor scale configurable
  • Failsafe value configurable
  • Firmware upgradeable
  • 5V LDO (300mA) integrated for GPS and external Receiver.
  • Rated voltage: 4~9V @BEC pad, 0~36V @Vbat, 0~3.3V @Curr
  • No regulator built-in for servos, Servos must be powered via BEC pad by external 5-9V source.

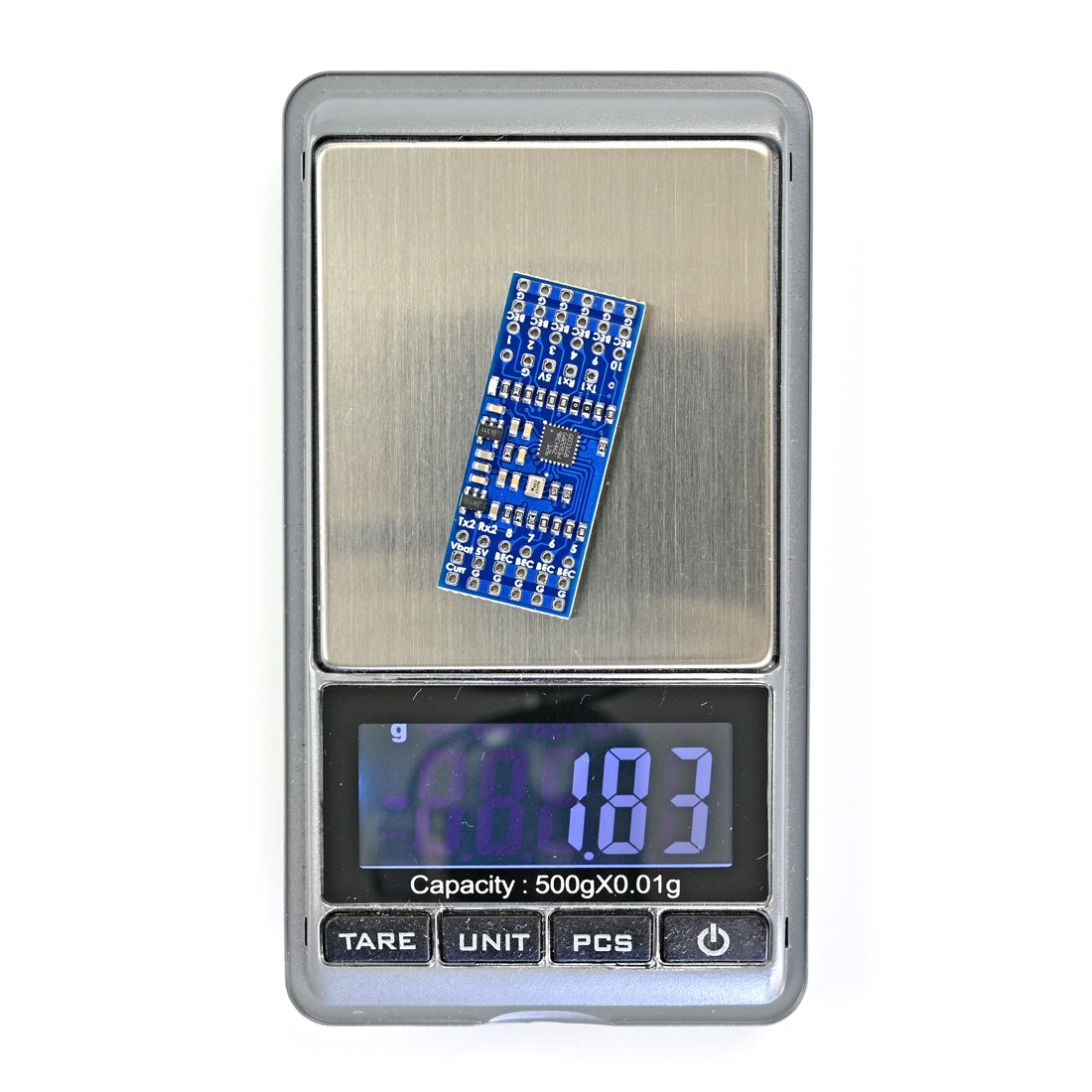

  • 38mm x 16mm, 1.8g

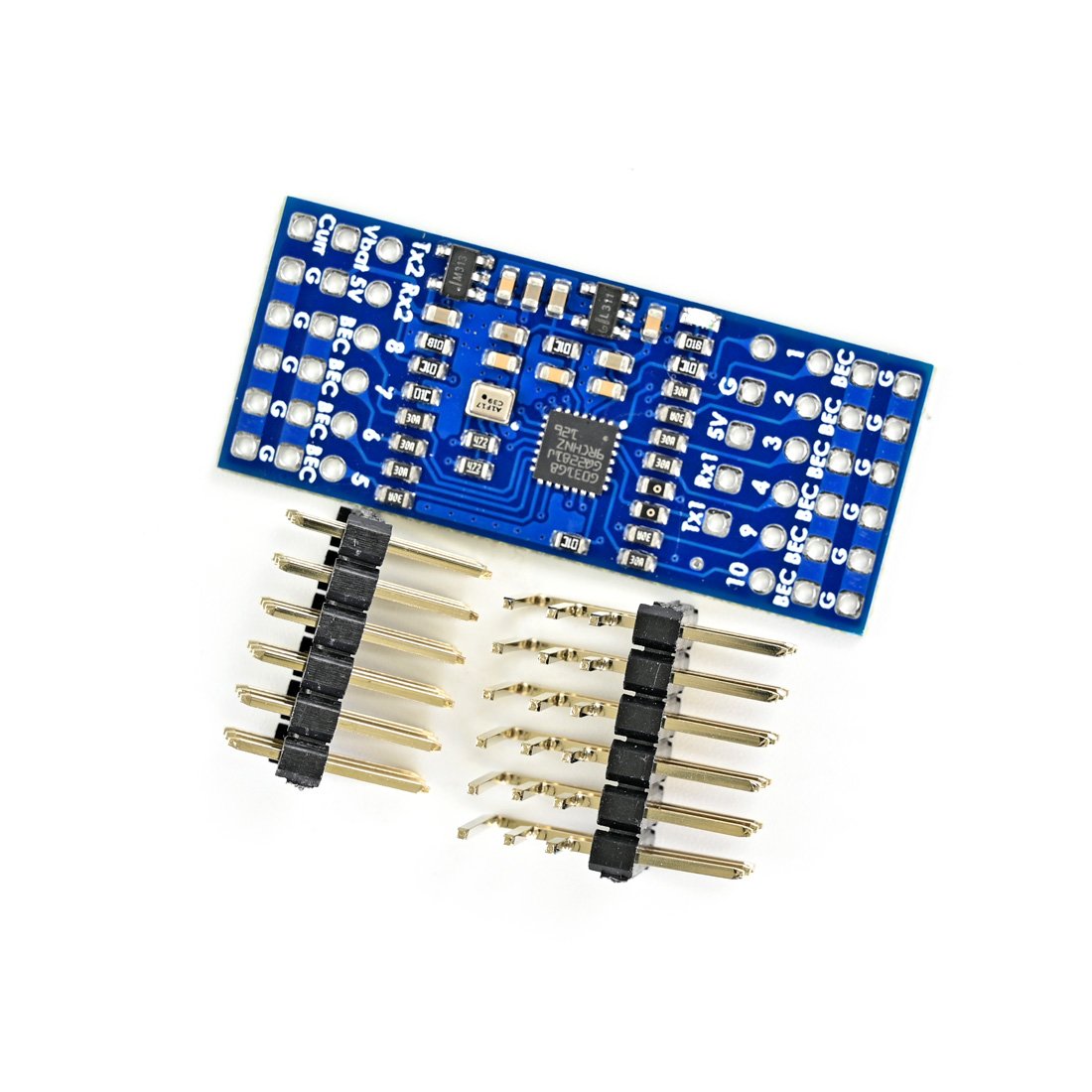

  • Packing: 1 x CRSF-PWM-V10, Dupont 2.54 pins

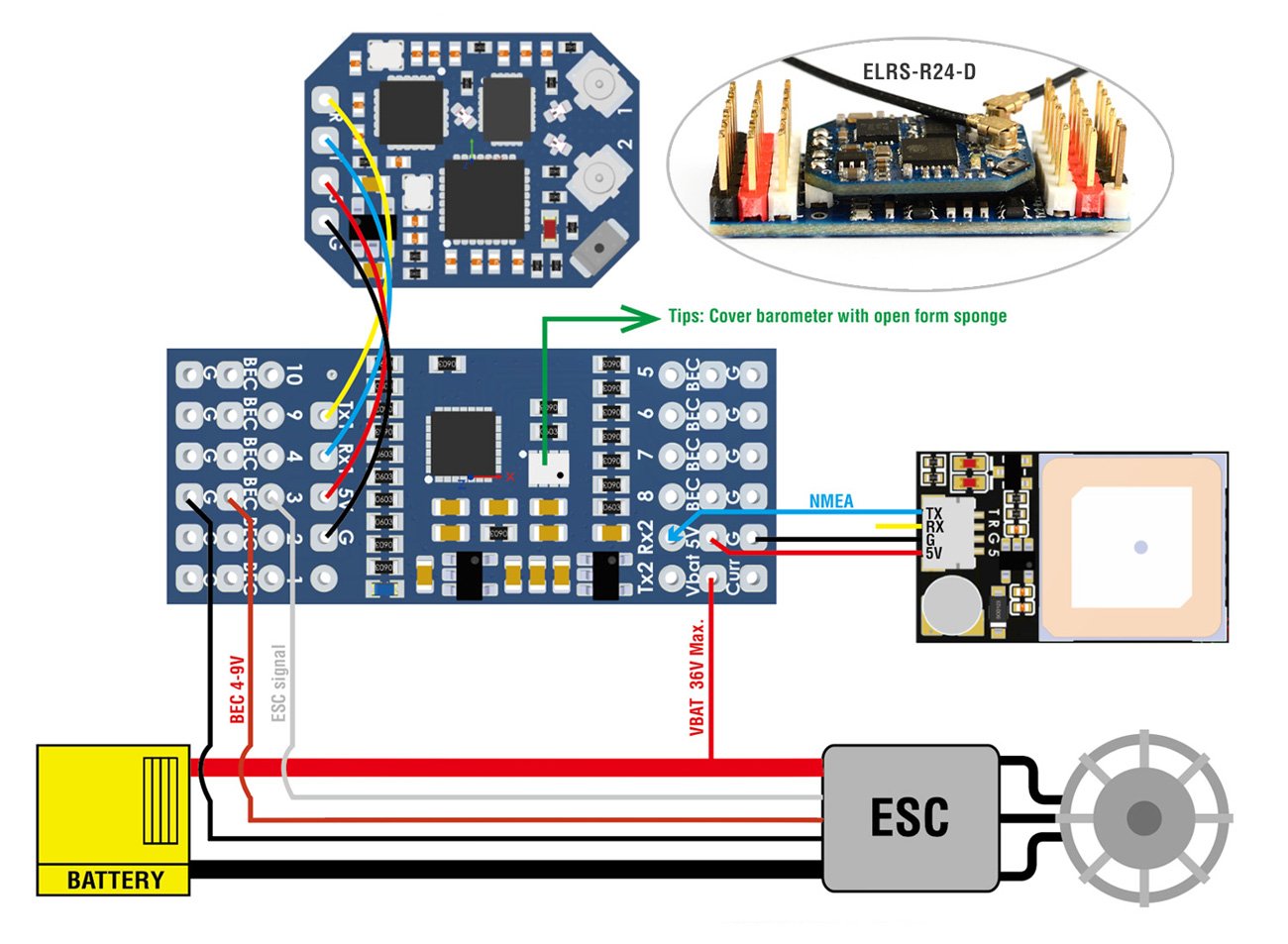

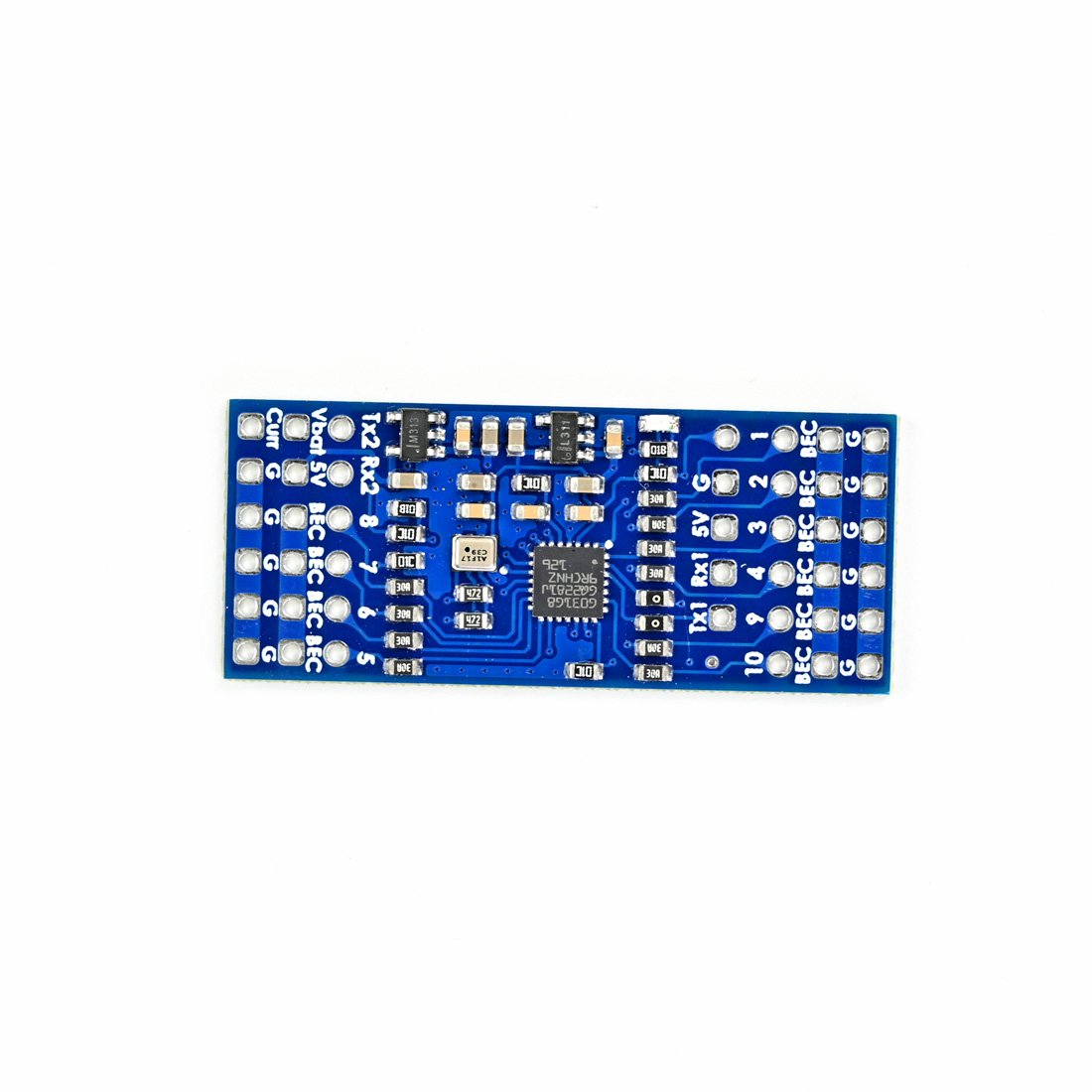

CRSF-PWM-V10 LayoutCRSF-PWM-V10 Wiring Diagram
