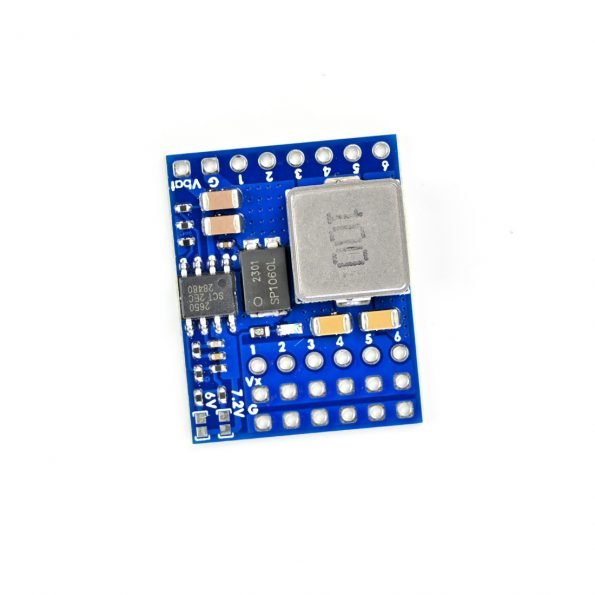

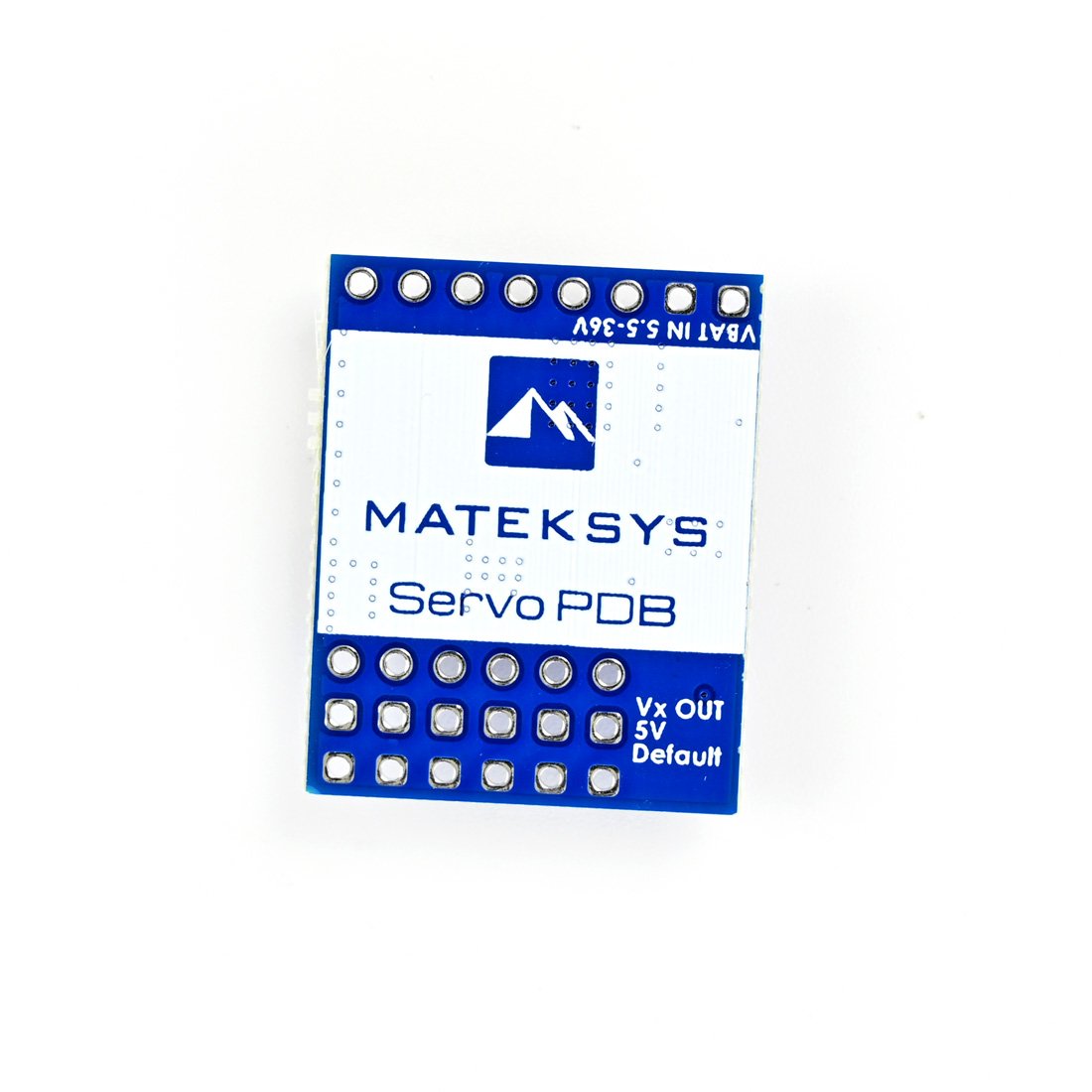

The MATEKSYS Servo PDB with BEC 5.5-36V to 5-8.2V reduces circuit loss and voltage drop on servo power wires for big-scale RC Airplanes and flight controllers without dedicated BEC for servos.

Servo PDB

  • 5.5V to 36V Operating Input Range
  • Vx for servos, 5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
  • 4A Continuous load current, 7A Burst
  • Maximum Duty Cycle: 100%, when input voltage< setting value,  Regulator output voltage = Input voltage
  • Output Short-circuit tolerant (3 seconds)
  • No protection for reversed input polarity
  • Pins distance: 2.54mm
  • Size & Weight: 26 x 21 x 5mm, 4g

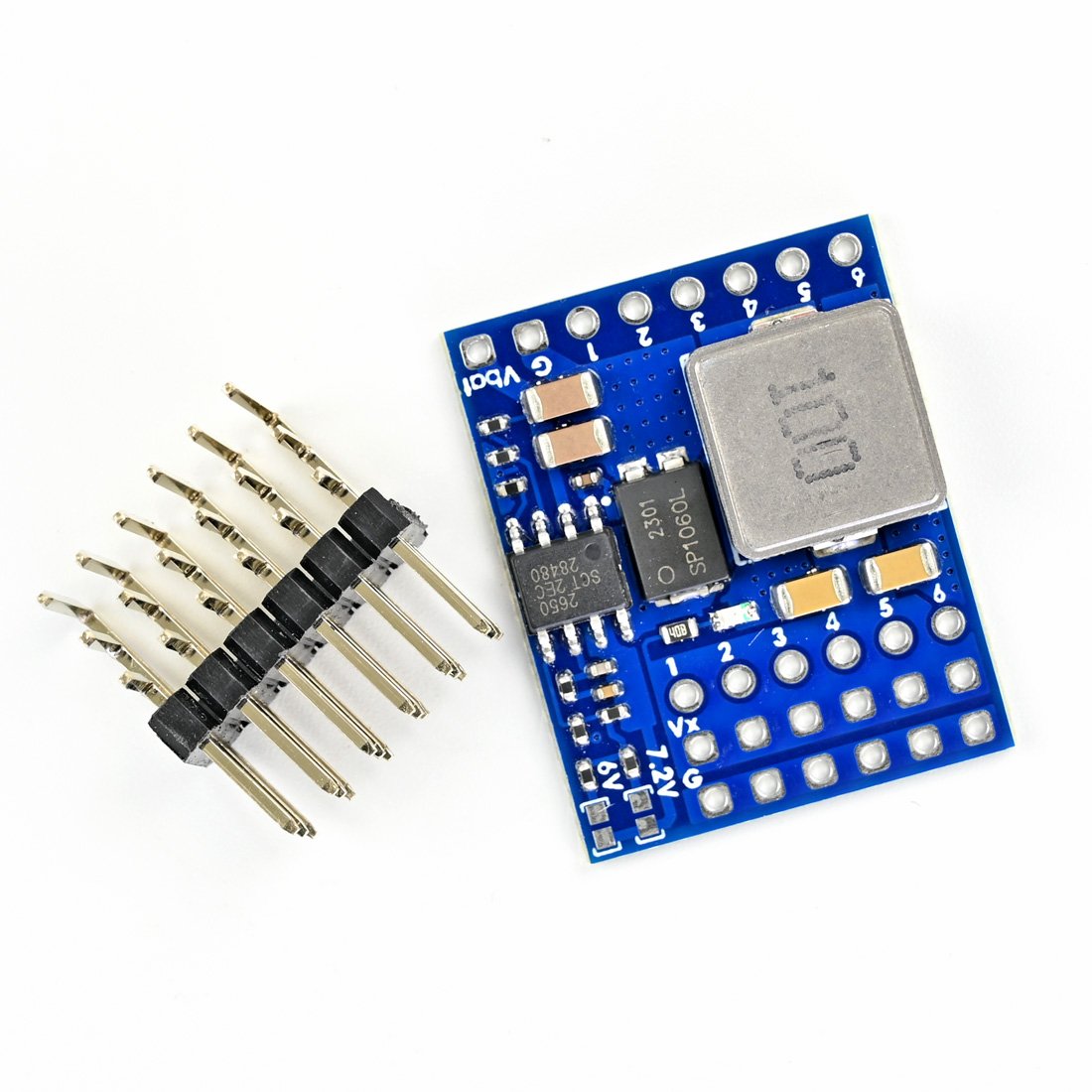

  • Packing: 1 x SVPDB-8S, Dupont 2.54mm pins


  • Flight controllers without dedicated BEC for servos
  • Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane

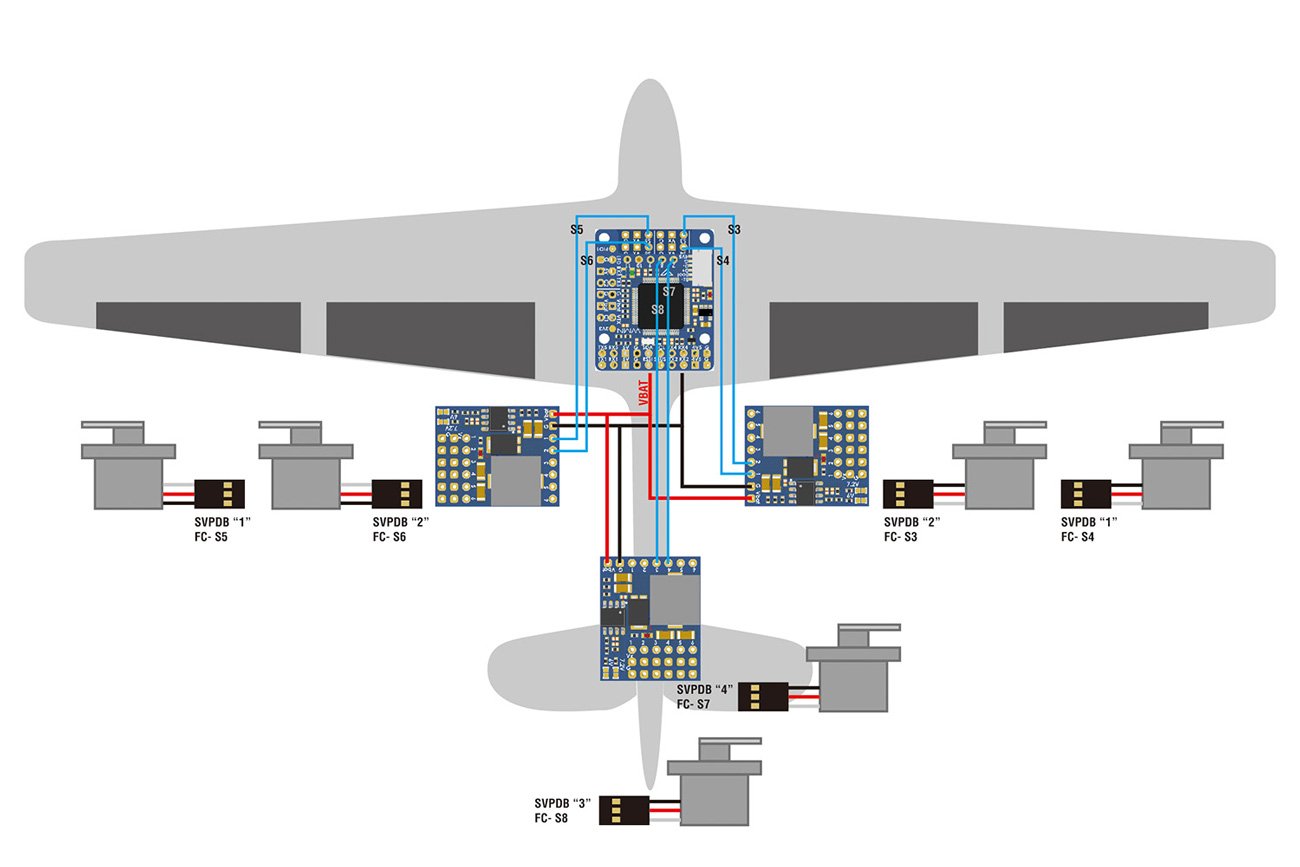

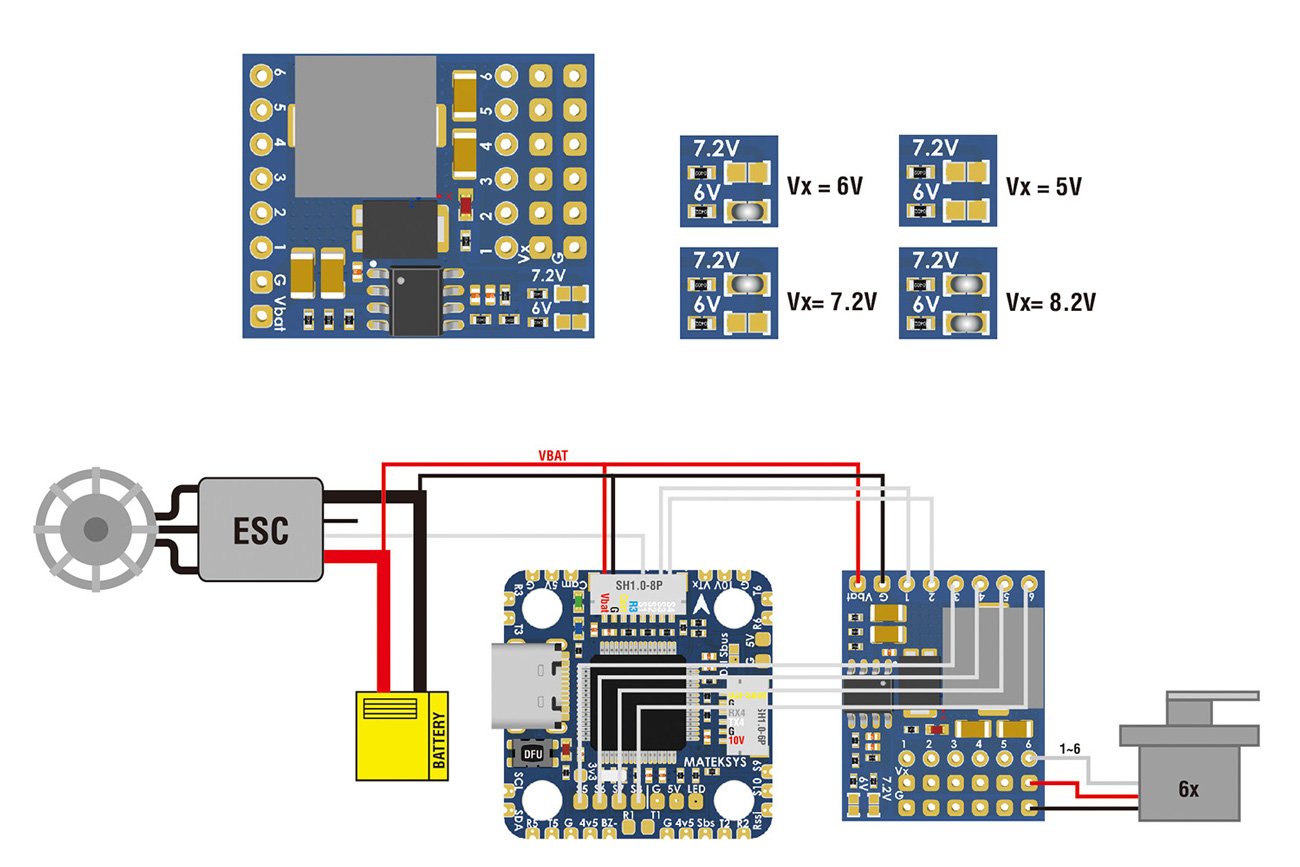

SVPDB-8S Wiring DiagramSVPDB-8S Wiring Diagram
