Mateksys’s H743 WING V3 Flight Controller arrives slight improvements over the version 2 while retaining same functions, layout, wiring schematic and I/O mapping from previous version. The only improvement is the IMU has been updated to ICM42688-P instead of MPU6000.

H743 WING V3

  • MCU: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash
  • IMU: ICM42688-P (SPI1) & ICM42605 (SPI4)
  • Baro: Infineon DPS310 (I2C2)
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD card slot (SDIO)
  • 7 x Uarts (1,2,3,4,6,7,8) with built-in inversion.
  • 13 x PWM outputs(including “LED” pad)
  • 2 x I2C
  • 1 x CAN
  • 6 x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
  • 3 x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Red)
  • 1 x SPI3 breakout
  • USB/Beep Extender with Type-C(USB2.0)
  • Dual Camera Inputs switch
  • 5V/9V (12V) for Camera/VTX power switch
  • High-precision Current Sense (90A continuous, 220A peak)
  • Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
  • ADC VB2 voltage divider: 1K:20K
  • ADC AirSpeed voltage divider: 20K:20K
  • Static power 160mA@5V

FC Firmware

  • ArduPilot(ChiBiOS): MATEKH743
  • INAV: MATEKH743

PDB

  • Input voltage range: 8~36V (3~8S LiPo) w/TVS protection
  • 2 x ESC power pads
  • Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
  • Sense resistor: 90A continuous, 220A peak

BEC 5V output

  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
  • Output 5.15 +/- 0.1V DC
  • Continuous current 2 Amps, 3A Peak

BEC 9V /12V output

  • Designed for Video Transmitter, Camera, Gimbal ect.
  • Continuous current 2 Amps, 3A Peak
  • 12V option with Jumper pad

BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current 8 Amps, 10A Peak

BEC 3.3V output

  • Linear Regulator
  • Continuous current: 200mA

Physical

  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
  • Dimensions: 54 x 36 x 13 mm

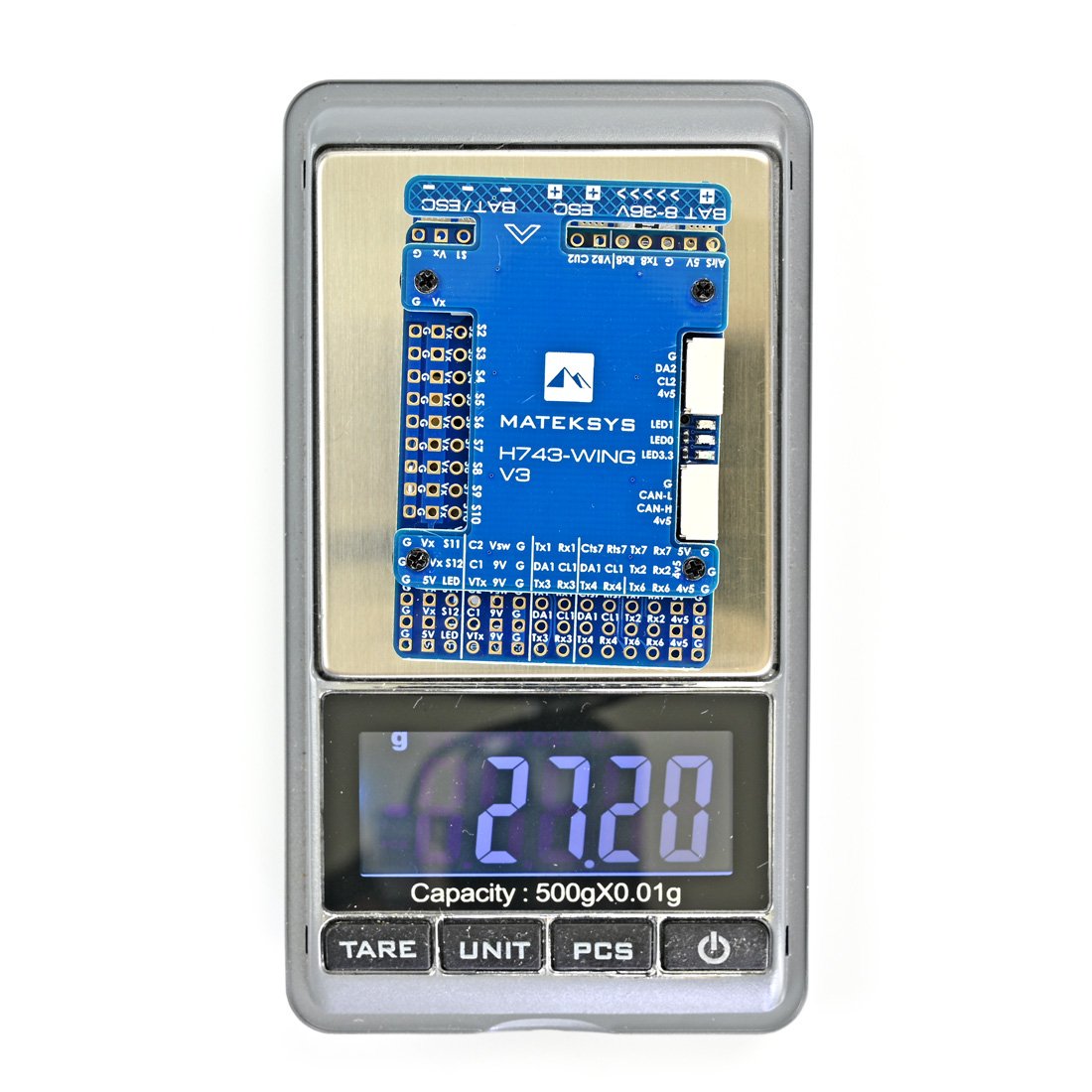

  • Weight: 30g with USB extender

Includes

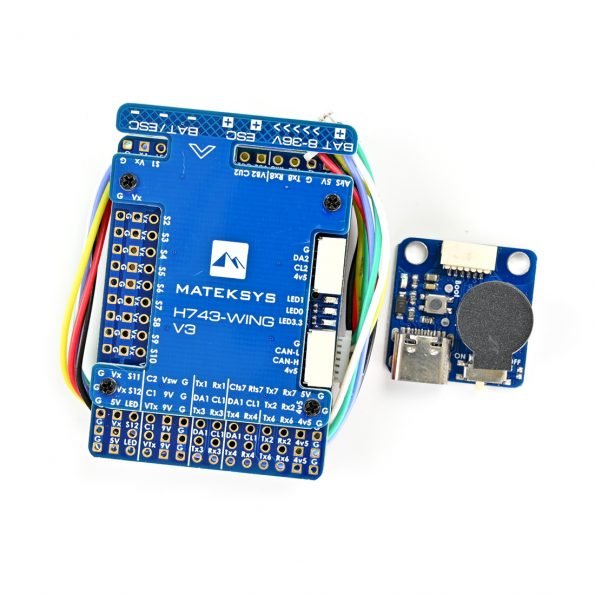

  • 1 x H743-WING V3

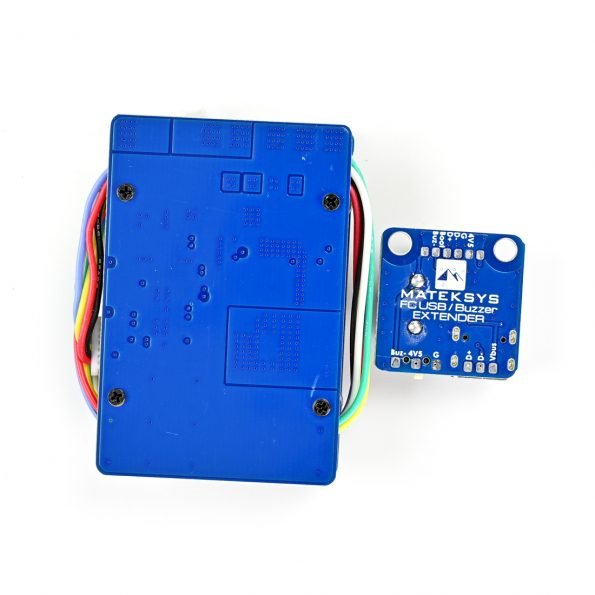

  • 1 x USB(Type-C)/Beep (Passive buzzer) Extender
  • 1 x 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • 2 x 20cm JST-GH-4P to JST-GH-4P cable for CAN I2C port
  • 1 x Rubycon ZLH 35V 470uF capacitor
  • Dupont 2.54 pins (Board is shipped unsoldered)

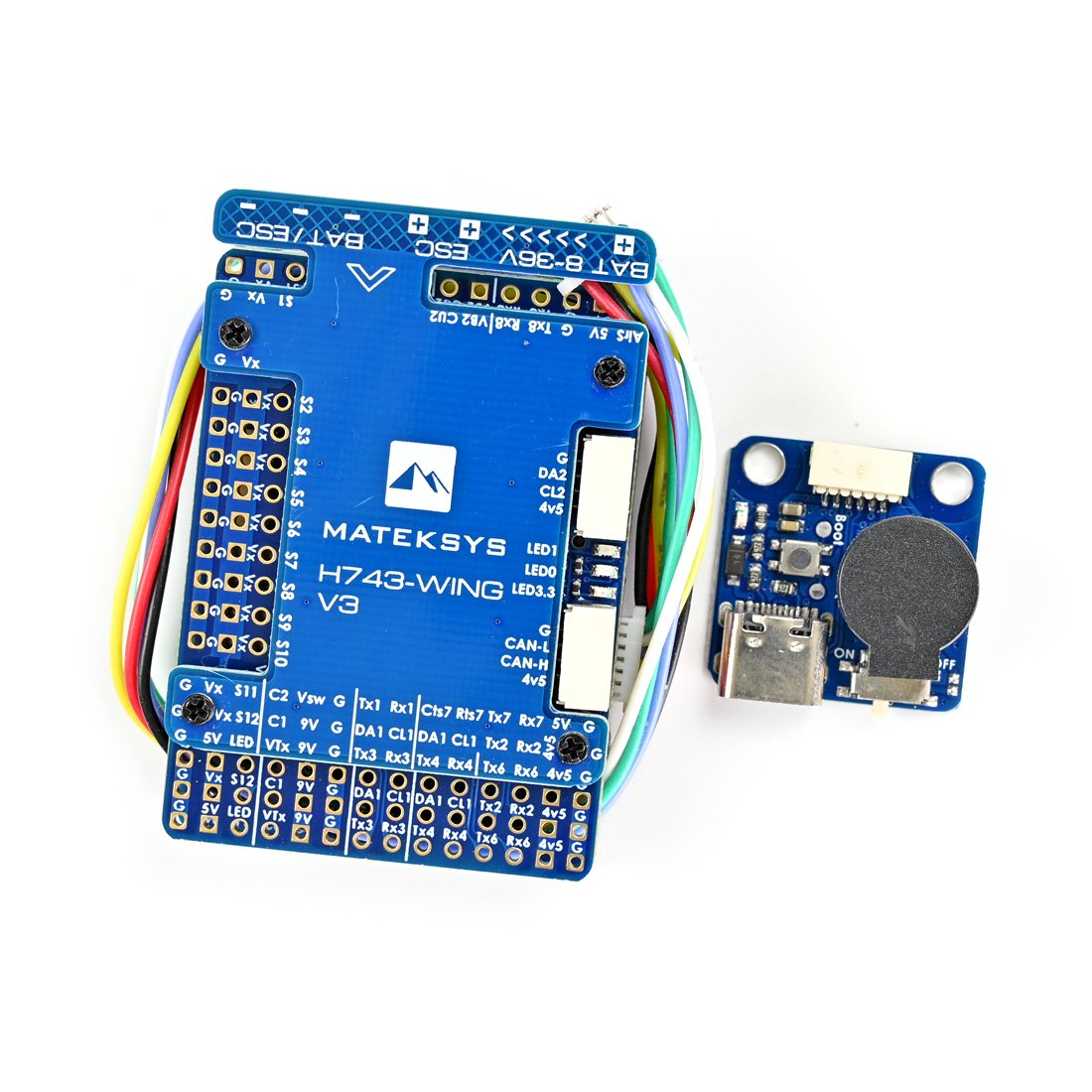

H743 WING V3 Layout

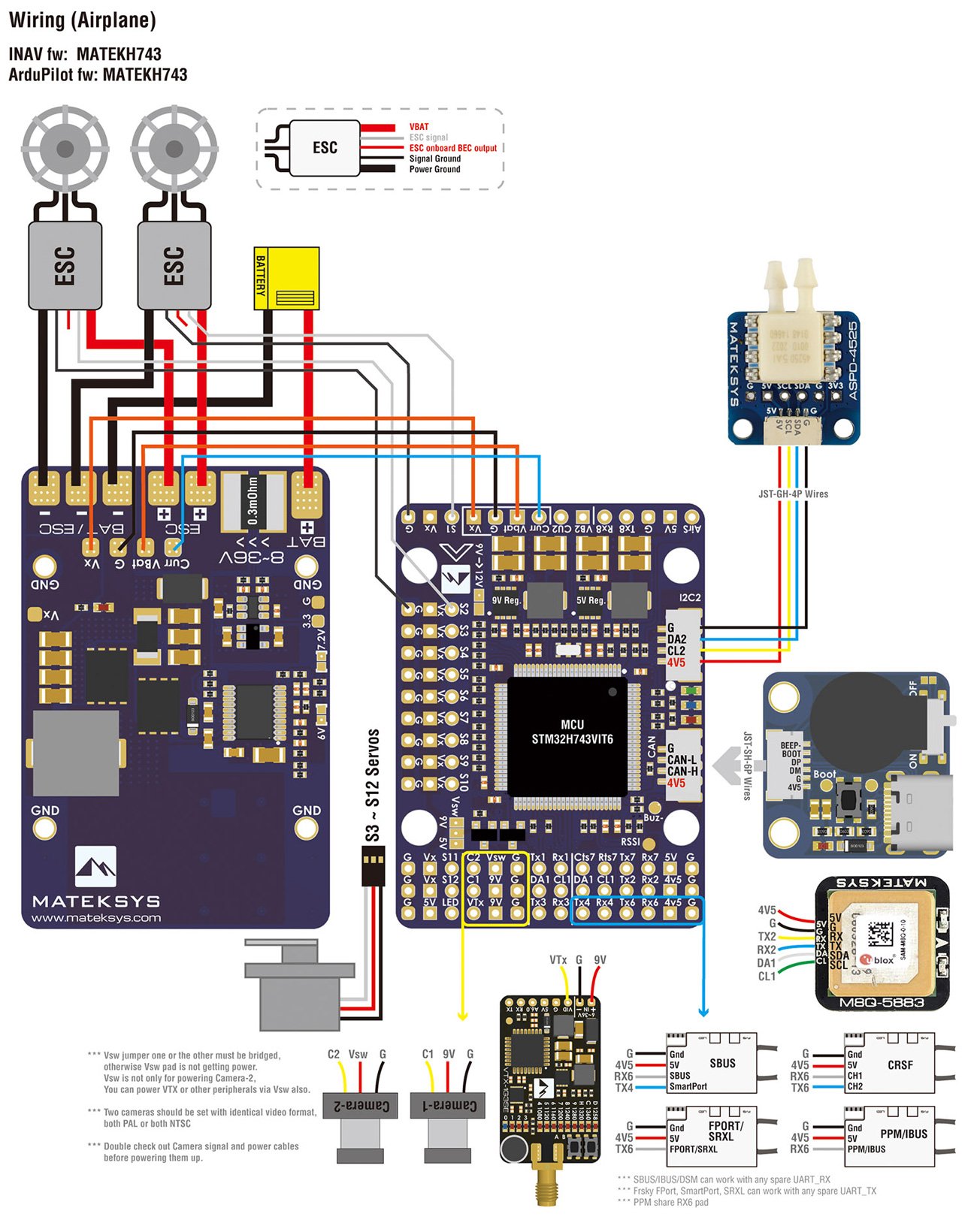

H743 WING V3 Wiring Diagram
