Matek Micro BEC step down regulator for both DJI Digital FPV System and FPV racing drone applications.
Micro BEC 12V
- Wide 6V to 60V Operating Input Range
- Start-up Voltage >=6.7V
- V Out 5V, 9V or 12V Adj. Default is 5V
- Maximum Duty Cycle: 100%, when input voltage less then setting value, Regulator output voltage = Input voltage
- Standby current: < 5mA
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Short-circuit tolerant (3 seconds/minute)
- No protection for reversed input polarity
- Pins distance: 2.54mm

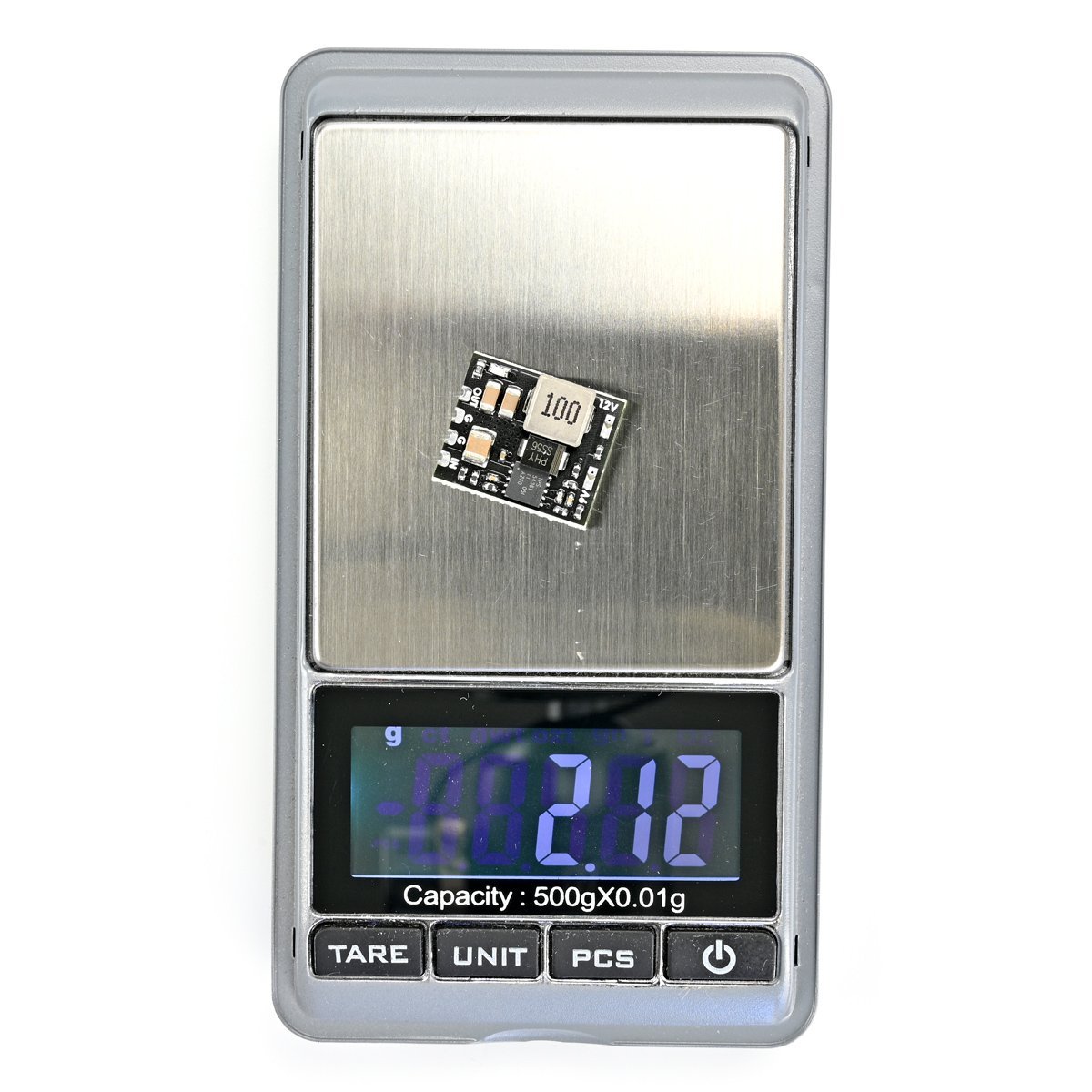

- Size & Weight: 18 x 15 x 4.5 mm, 2g
- 1 x Micro BEC
