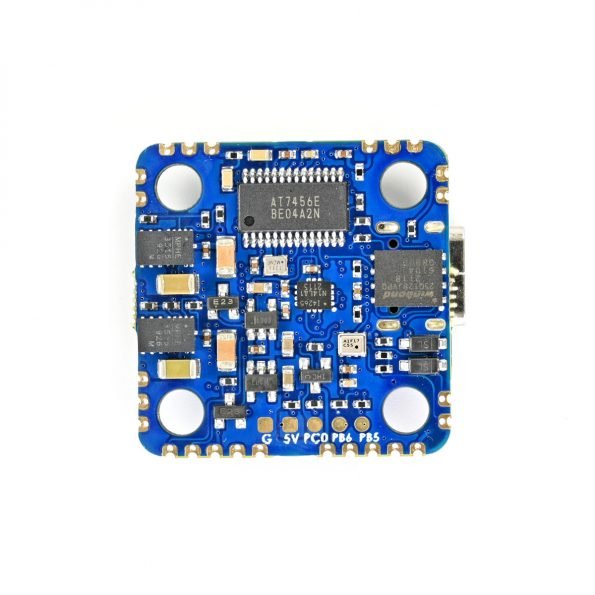

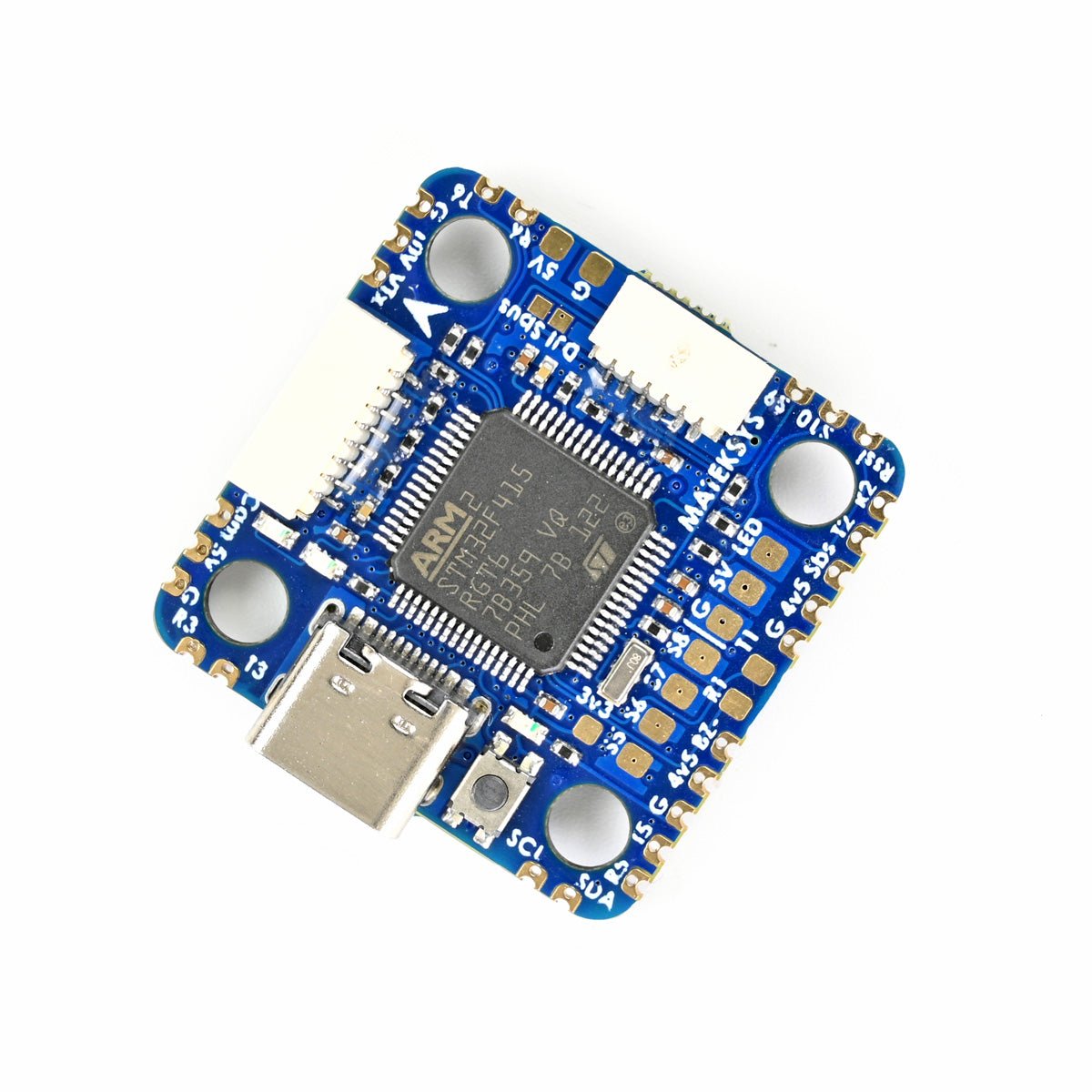

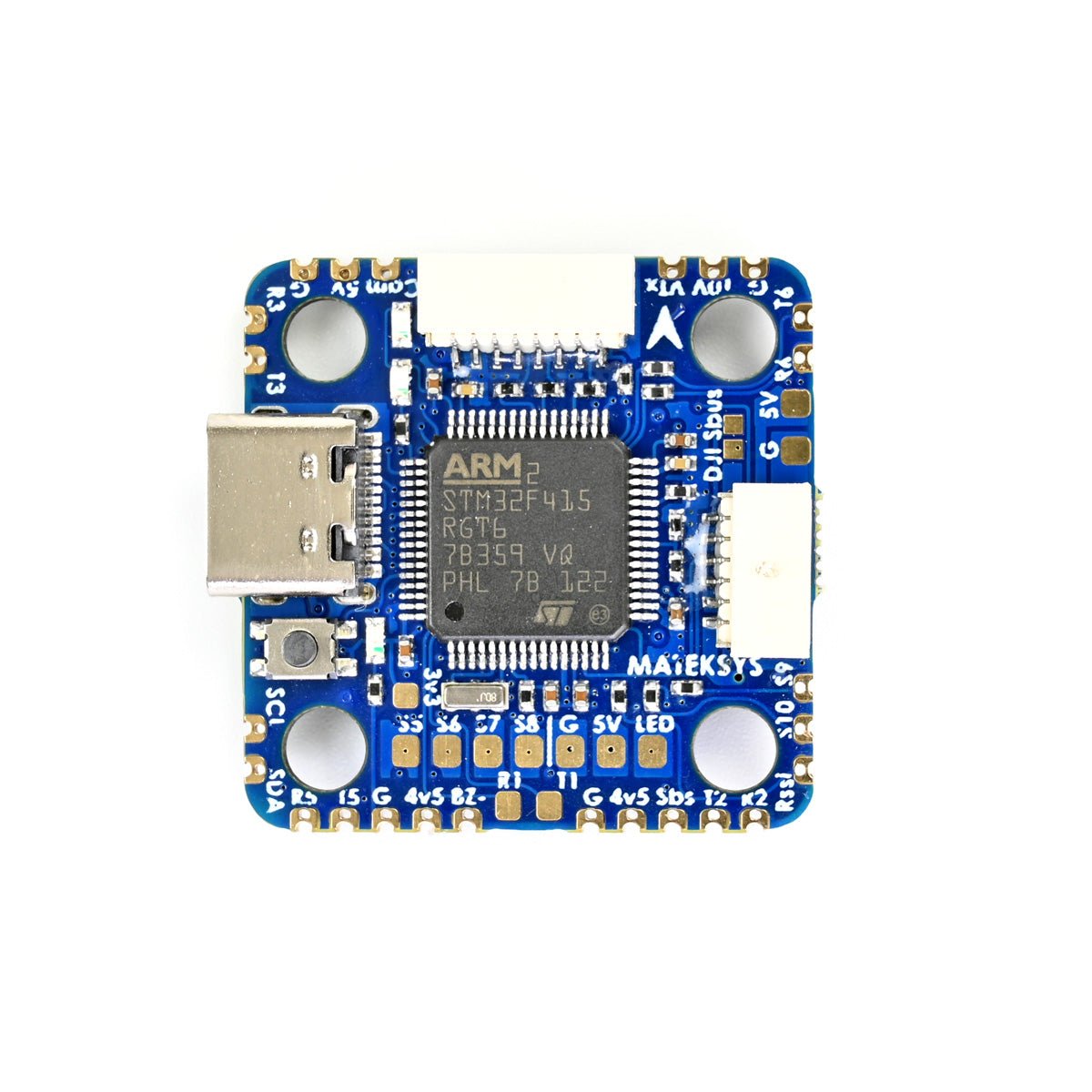

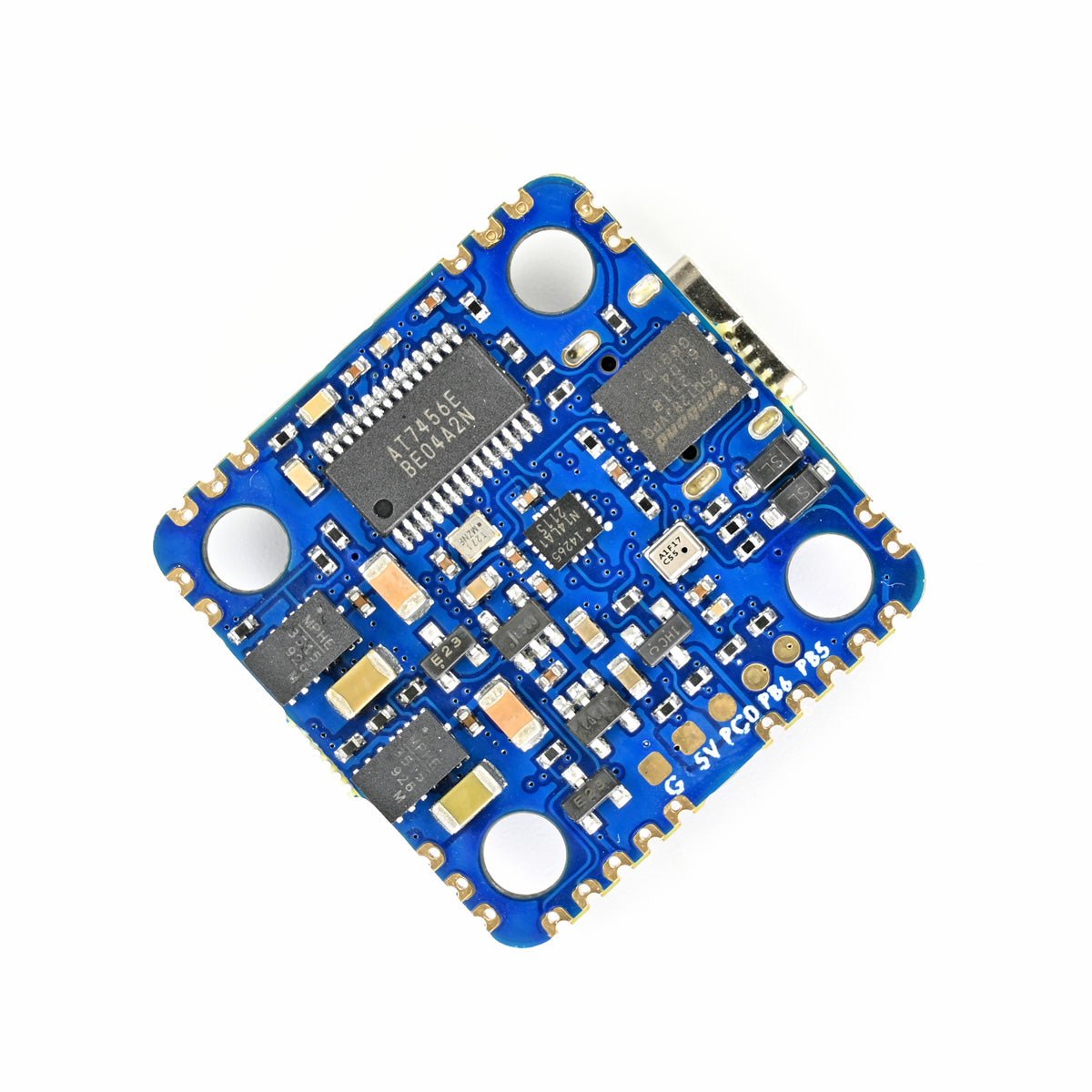

The F405 MiniTE Flight Controller was designed to be smaller and lighter than its bigger brother, and the 20x20mm mount allows for more space to work with on your build.


  • F405 has 1MB flash which can run with ArduPilot
  • Redesigned target MATEKF405TE support 8x bi-directional DSHOT
  • Support DJI air unit PnP, and a 10V BEC for DJI OSD or analog VTX
  • Compared with F722-miniSE 8motors or 6motor+2servos, F405-miniTE support 8motors+3servos in INAV/BF multirotor mixer
  • Convertible 20mm to 30.5mm mounting
  • InvenSense GEN3 IMU ICM42605
  • MCU: STM32F405RGT6
  • IMU: ICM42605
  • OSD: AT7456E
  • Baro: Goertek SPL06-001 (I2C)
  • Blackbox: 16M-byte Flash memory
  • 6 x UARTs, 1 x Softserial_Tx option
  • 12 x PWM outputs (8 x Dshot)
  • 1 x I2C
  • 4 x ADC (VBAT, Current, RSSI, Airspeed)
  • 2 x PINIO
  • 1 x SH1.0_8pin connector (Vbat/G/Curr/R3/S1/S2/S3/S4)
  • 1 x SH1.0_6pin connector for DJI FPV Air Unit
  • 3 x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)
  • Dual BEC, 5V 1.7A & 10V 1.4A
  • 10V output ON/OFF switchable
  • Convertible 20mm to 30.5mm mounting
  • Vbat Input: 6~30V (2~6S LiPo)
  • BEC: 5V 1.7A cont. (Max.2A)
  • BEC: 10V 1.4A for VTX or DJI Air Unit
  • LDO 3.3V: Max.200mA
  • For stable 10V output, input voltage should > 11V, when input voltage =<11V, output = 90% input voltage.
  • Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
  • No Current Sensor built-in, supports external current sensor of PDB/4in1
FC Firmware
  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE (not available in INAV configurator for now)
  • BetaFlight: MATEKF405TE
  • Mounting
    • 20 x 20mm/F3mm with Silicon Grommets
    • 20 x 20mm/F2mm with Silicon & Brass Grommets

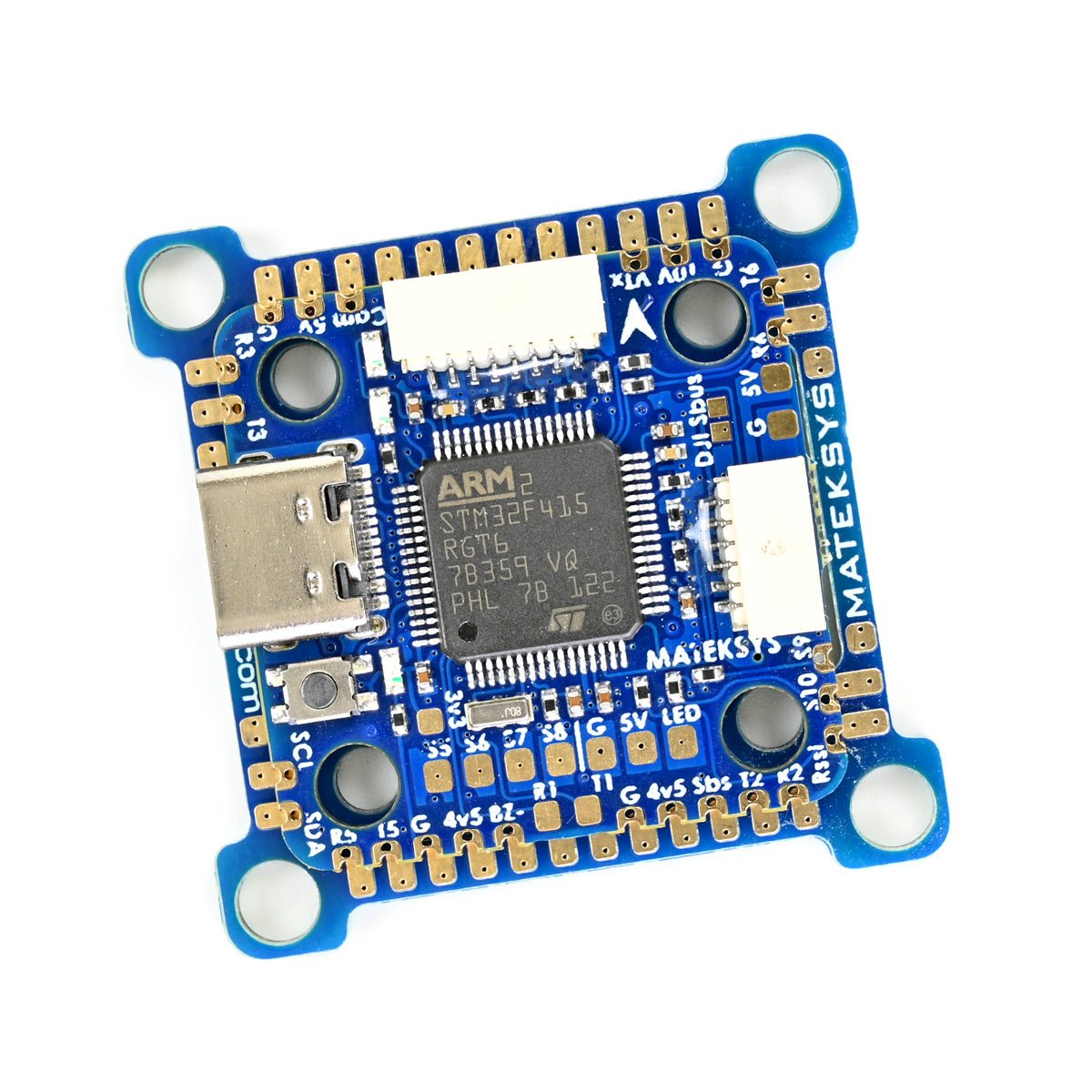

    • 30.5 x 30.5mm/F3mm with Conversion Plate and Silicon Grommets
  • Dimensions: 28 x 28 mm

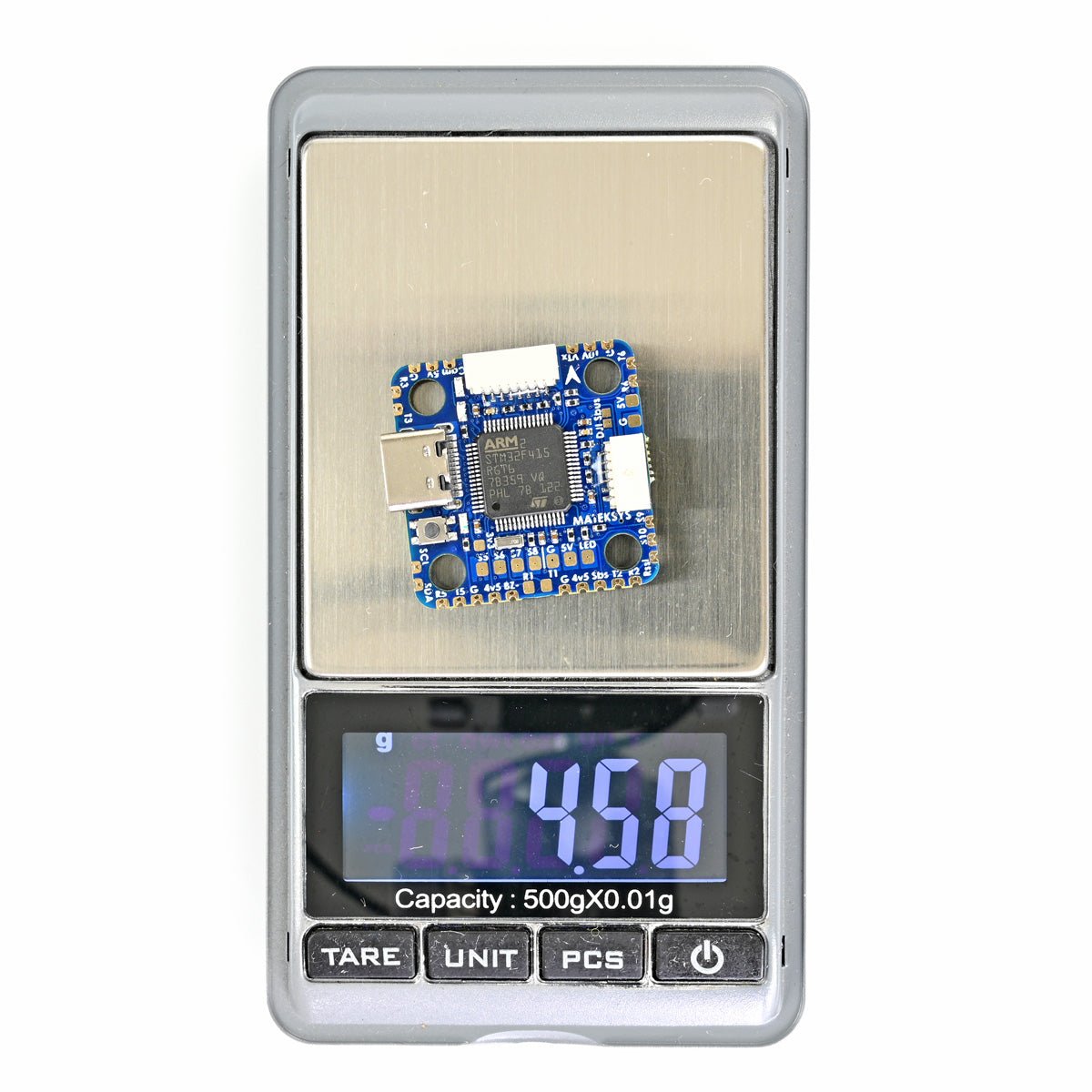

  • Weight: 5g
  • 1 x FC F405-miniTE

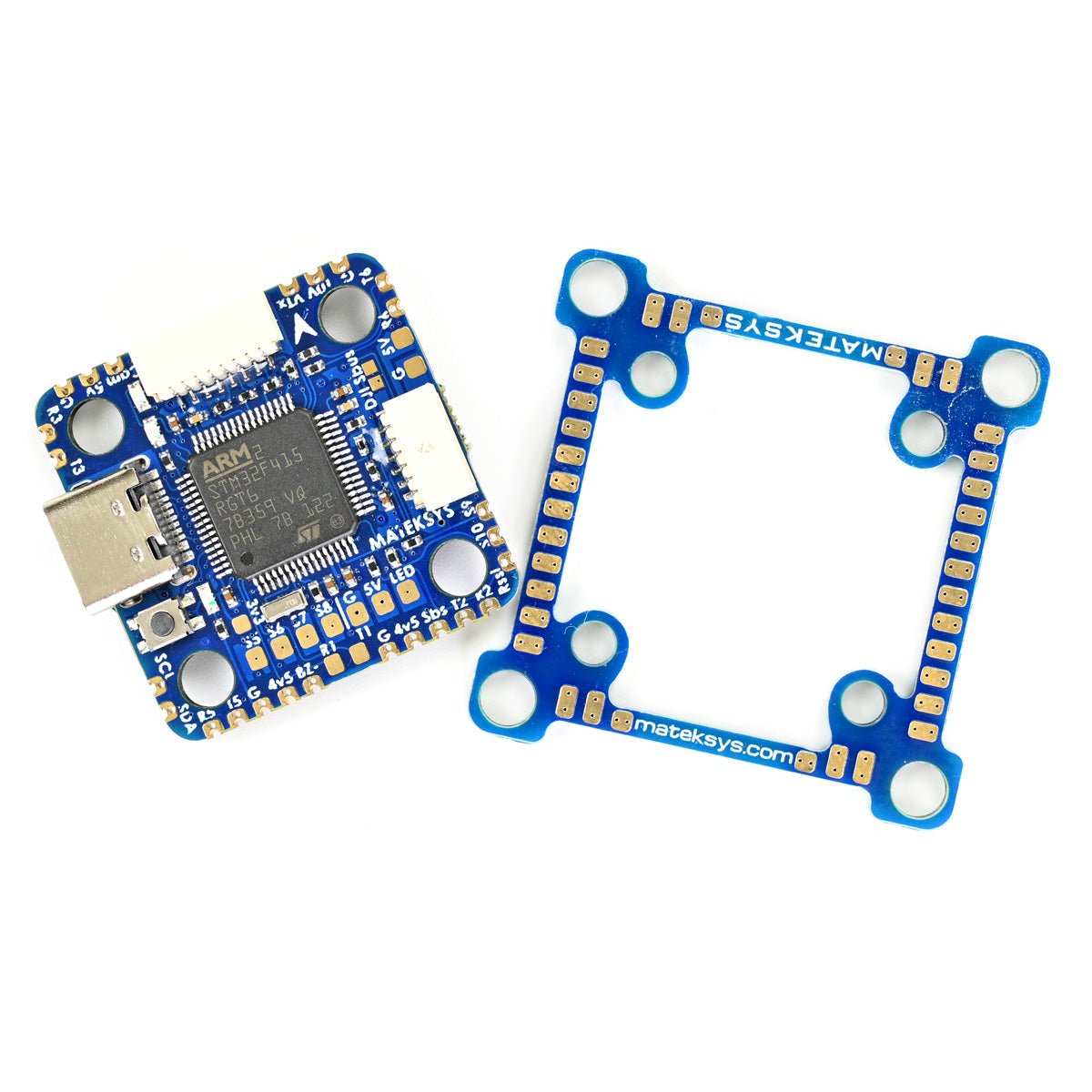

  • 1 x 20mm to 30.5mm conversion plate(blue PCB)
  • 6 x Silicon grommets M4 to M3
  • 6 x Brass grommets M3 to M2
  • 1 x SH1.0_8pin cable 5cm (including 2x 8pin connectors) for 4in1 ESC
  • 1 x SH1.0_6pin to GH1.25_8pin cable 8cm for DJI Air Unit
