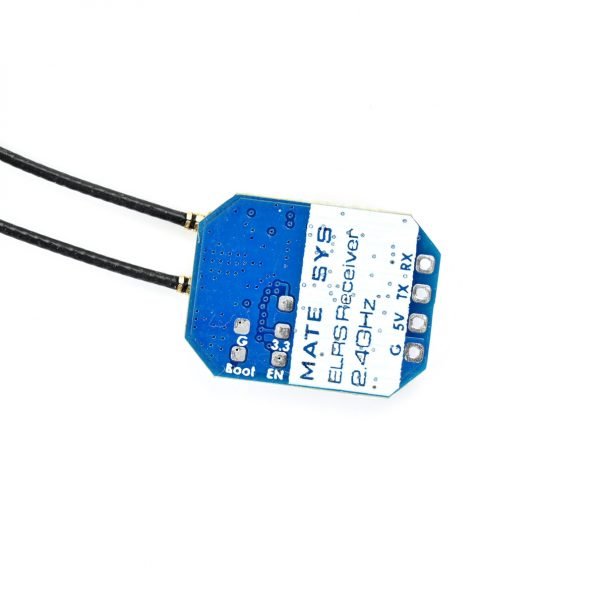

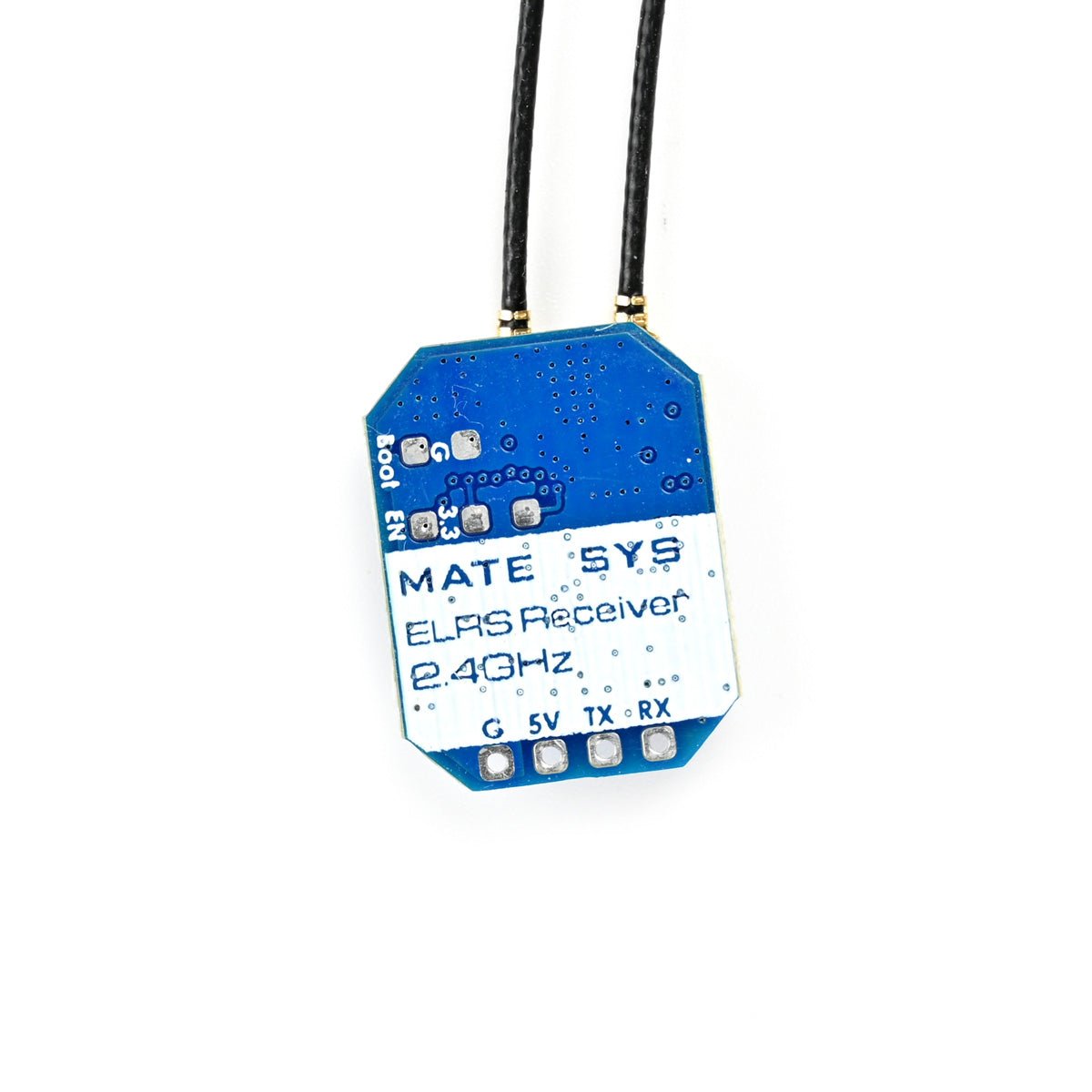

The MATEK ELRS-R24-D Receiver is a 2.4GHz ExpressLRS diversity receiver with 22.5dbm Telemetry Power and two IPEX MHF 1 antennas. The weight of the receiver with two dipole antennas is 3 grams.

You can upgrade firmware either via UART or WiFi! How simple!

Mateksys ELRS-R24-D Receiver
  • ESP8285, SX1280/1281IMLTRT
  • PA/LNA: SE2431L
  • Antenna connector: IPEX MHF 1
  • RF Frequency: 2.4GHz (2400~2480MHz)
  • Telemetry power: 22.5dbm ~ 23dbm
  • SE2431L RX_gain: 12.5dB
  • Diversity (antenna-switching), default ANT2
  • Receiver protocol: CRSF
  • Input voltage: 4~9V DC @ 5V pad
  • Power dissipation: 40~45mA (before binding), 70~75mA (binding), 90~95mA (wifi mode)
  • PCB size: 21mm x 15mm
  • Weight: 3g w/ 2 x antennas
  • Packing: 1 x ELRS-R24-D, 2 x IPEX MHF1 Antennas
  • ExpressLRS MATEK_2400_RX
  • Firmware update via UART or WIFI
  • ELRS-R24-D: enable “USE_DIVERSITY” (checked) when flashing in ExpressLRS configurator
