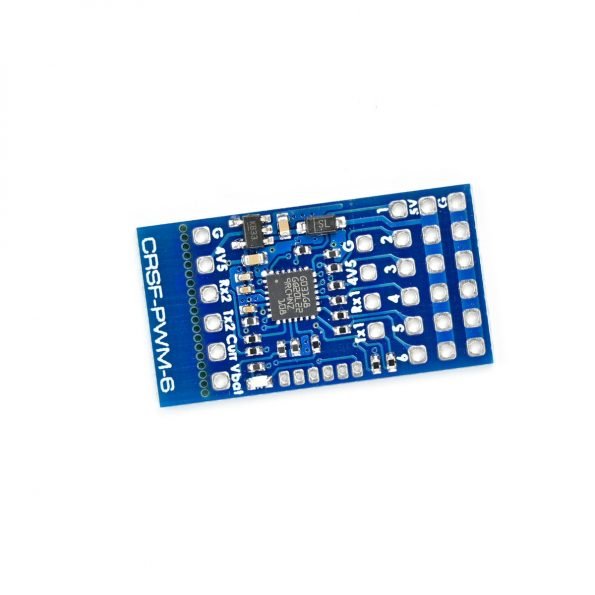

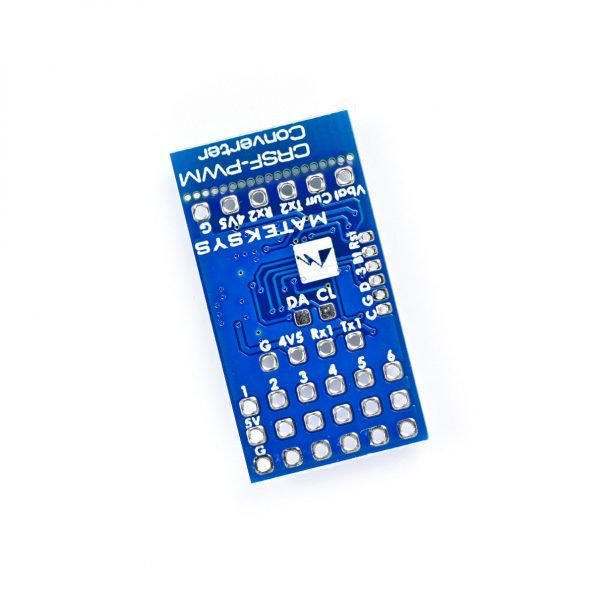

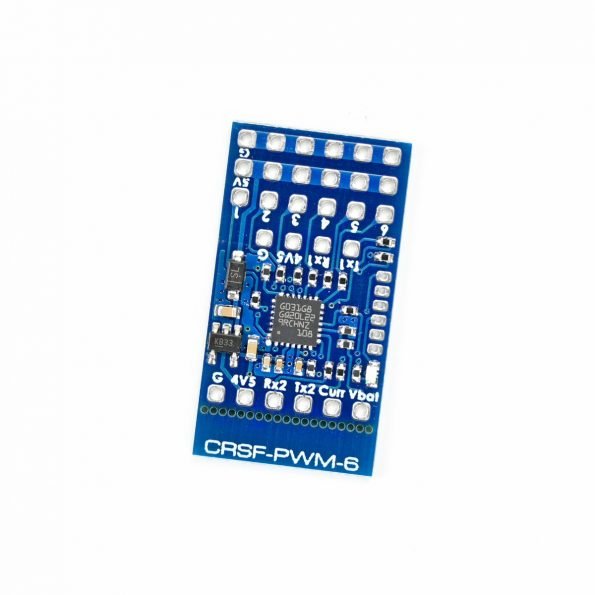

Matek has released industry first CRSF to PWM (Crossfire to Servo) protocol converter adapter boards.

Matek CRSF-PWM-6 has 6 PWM servo outputs. Has integrated voltage sensor and external current sensor can be connected. PWM output frequency can be adjusted for faster servos (50Hz default, 100, 160, 330, 400Hz).

Mateksys CRSF-PWM-6 PWM Converter
  • Compatible with CRSF protocol receiver only
  • Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
  • 6 x PWM outputs
  • PWM frequency configurable (50Hz default, 100,160,330,400Hz)

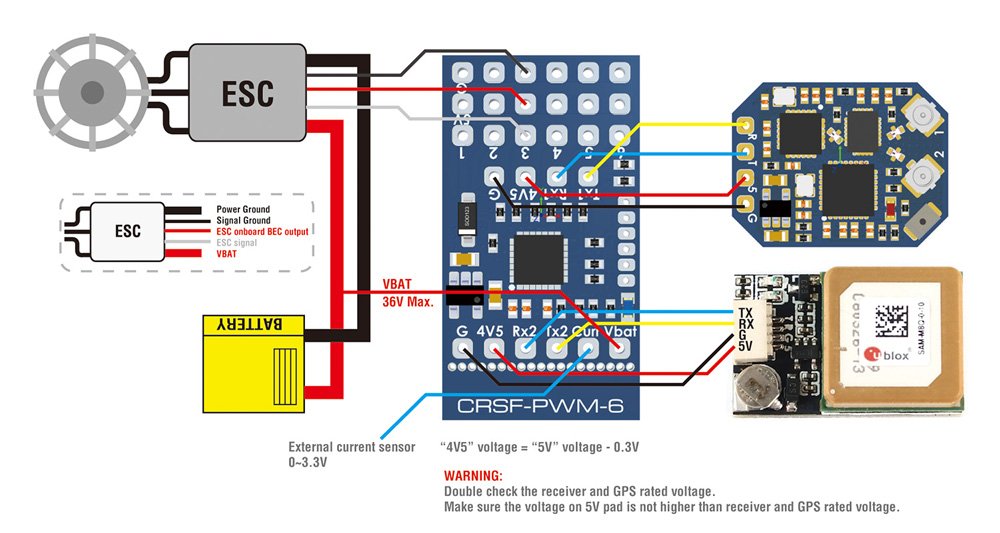

  • 2 x UARTs (for Receiver and GPS)
  • Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
  • 36V Max. battery voltage sense (1K:10K voltage divider built-in)
  • Compatible with external current sensor (0~3.3V)
  • Vbat and Current sensor scale configurable
  • Failsafe value auto set

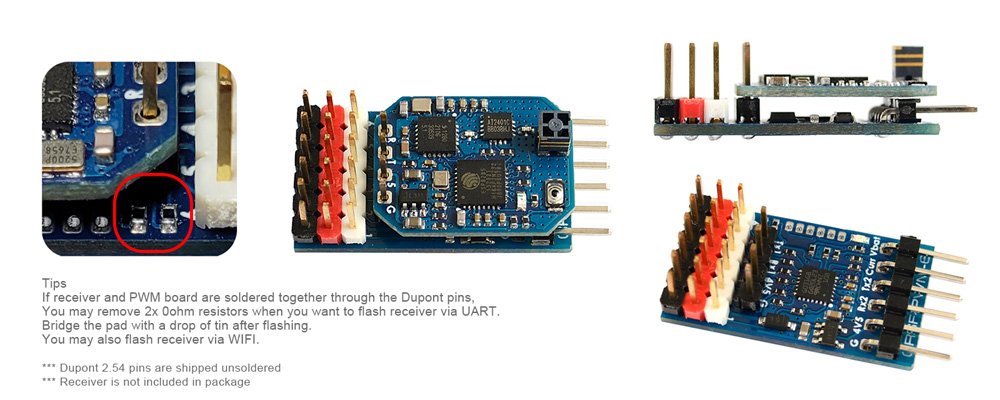

  • Firmware upgradeable
  • Rated voltage: 4~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr
  • No 5V regulator built-in
  • 25mm x 16mm, 1.3g

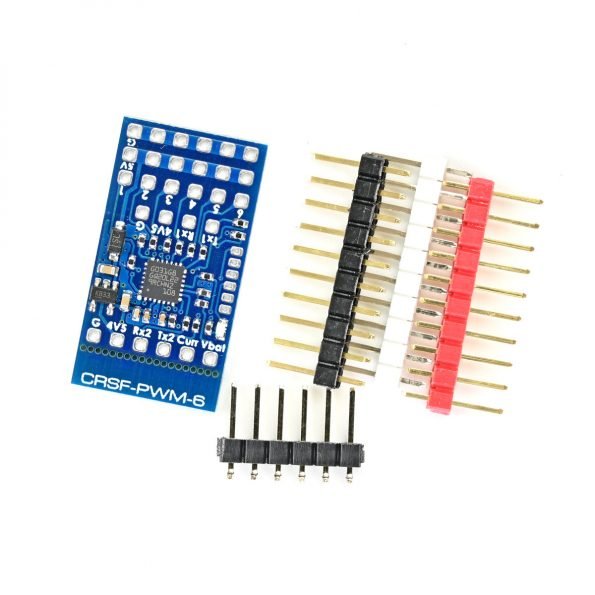

  • Packing: 1 x CRSF-PWM-6, Dupont 2.54 pins
