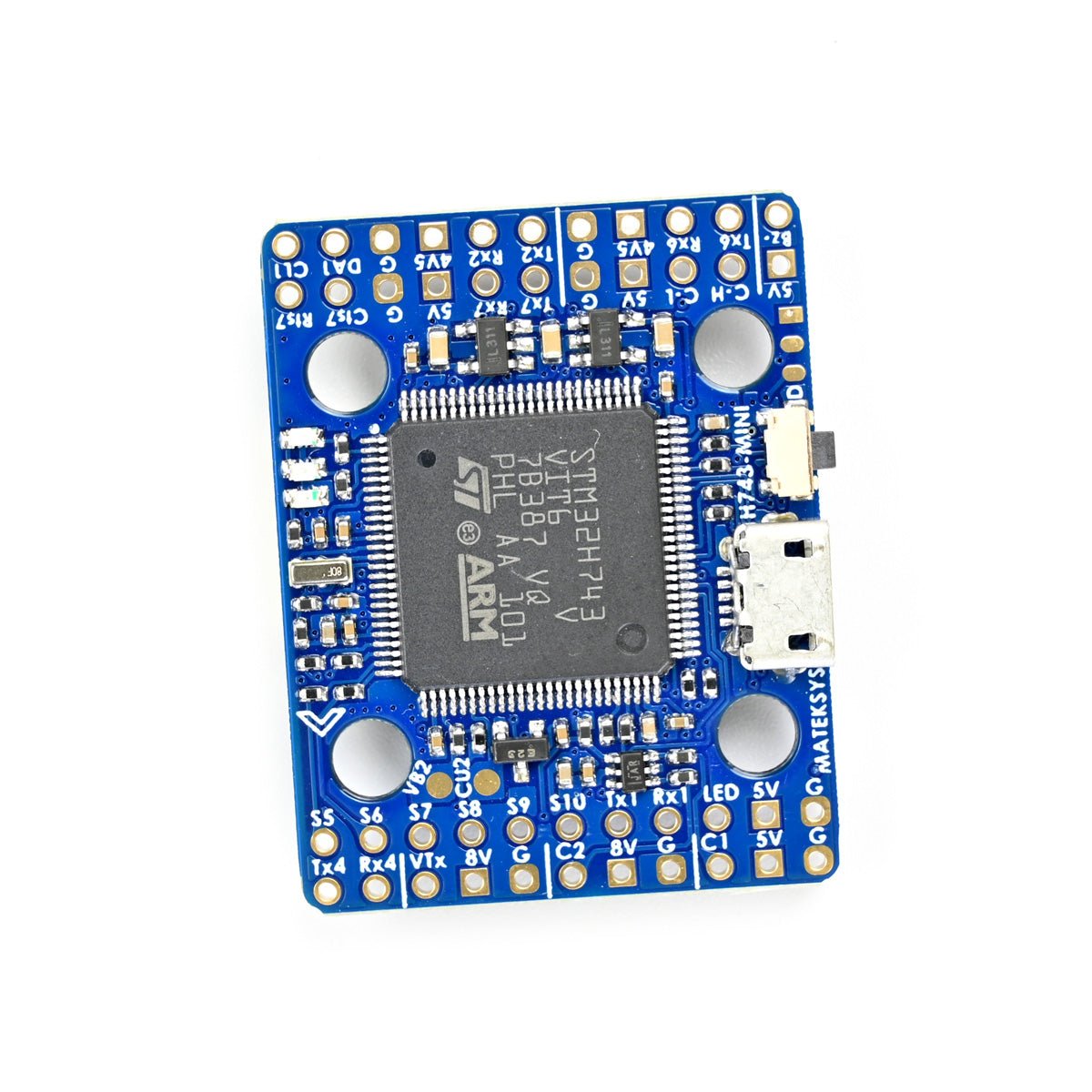

The Matek H743-Mini V3 FC is a powerful flight controller using the HSTM32H743VIT6 MCU running at 480MHz. It is matched with dual gyros ( ICM42688P & ICM42605 ), an Infineon DPS310 barometer, and 11 PWM outputs. Measuring 36x28x6.5mm, this is a full-featured and very worthy choice for anyone looking for a flight controller that can work on quads or wings.

H743-MINI V3
  • MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
  • Board V3 IMU: ICM42688-P (SPI1) & ICM42605 (SPI4)
  • Baro: Infineon DPS310 (I2C2)
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD card socket (SDIO)
  • 5.5 x Uarts (1,2,4,6,7,Rx8)
  • 11 x PWM outputs(S1 ~ S10, LED)
  • 2 x I2C (I2C1/DA1 CL1 pads, No I2C2 breakout)
  • 1 x CAN (C-H, C-L pads)
  • 5 x ADC (VBAT, Current, RSSI, Vbat2, Cur2)
  • 3 x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Red)
  • 1 x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
  • Dual Camera Inputs switch
  • 8V/Vbat filtered power ON/OFF switch
Power
  • Vbat Input: 6~36V (2~8S LiPo)
  • BEC: 5V 1.5A cont. (Max.2A)
  • BEC: 8V 1.5A cont. (Max.2A), 8V outputs stable when Vbat >=10V, 8V outputs 80% of Vbat when Vbat <10V
  • LDO 3.3V: Max.200mA
  • No Current Sensor Built-in
  • ADC VBat 2 pad supports Max. 69V (voltage divider: 1K : 20K)
  • Static power: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot
FC Firmware
  • ArduPilot (ChiBiOS): MATEKH743
  • BetaFlight: MATEKH743
  • INAV: MATEKH743 (To be supported soon)
Physical
  • Mounting
    • 20 x 20 mm, φ3 mm with silicon grommets
    • 20 x 20 mm, φ2 mm with silicon & brass grommets
  • Dimensions: 36 x 28 x 6.5 mm
  • Weight: 7g
Including
  • 1 x H743-MINI V3
  • 6 x Silicon grommets M4 to M3
  • 6 x Brass grommets M3 to M2
  • 1 x JST-SH1.0_8pin cable, 5cm
  • 2 x JST-SH1.0_8pin connectors
