Holybro M8N GPS

AVAILABILITY: Out Of Stock

$84.50

Brand: Holybro

Out of stock

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

  Share

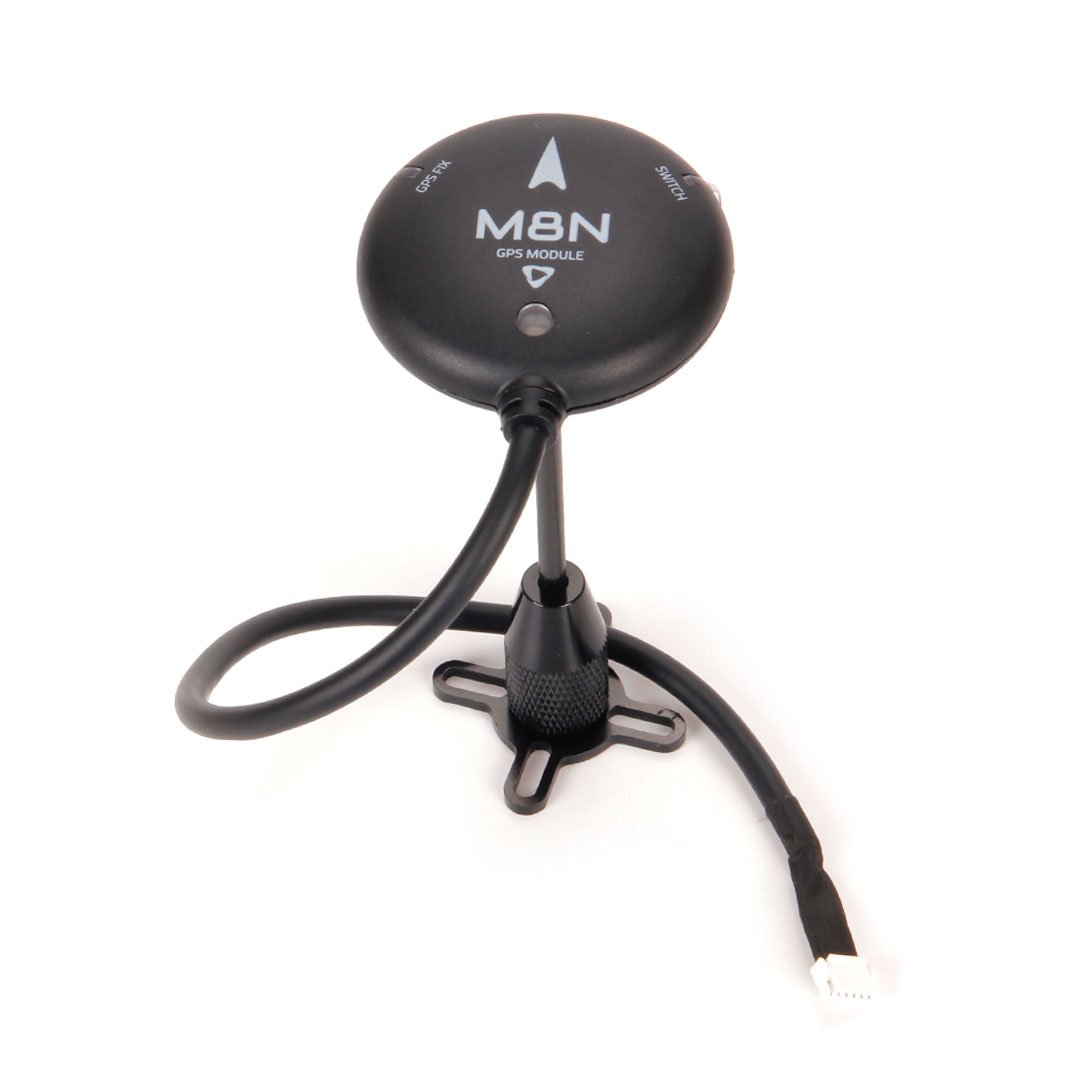

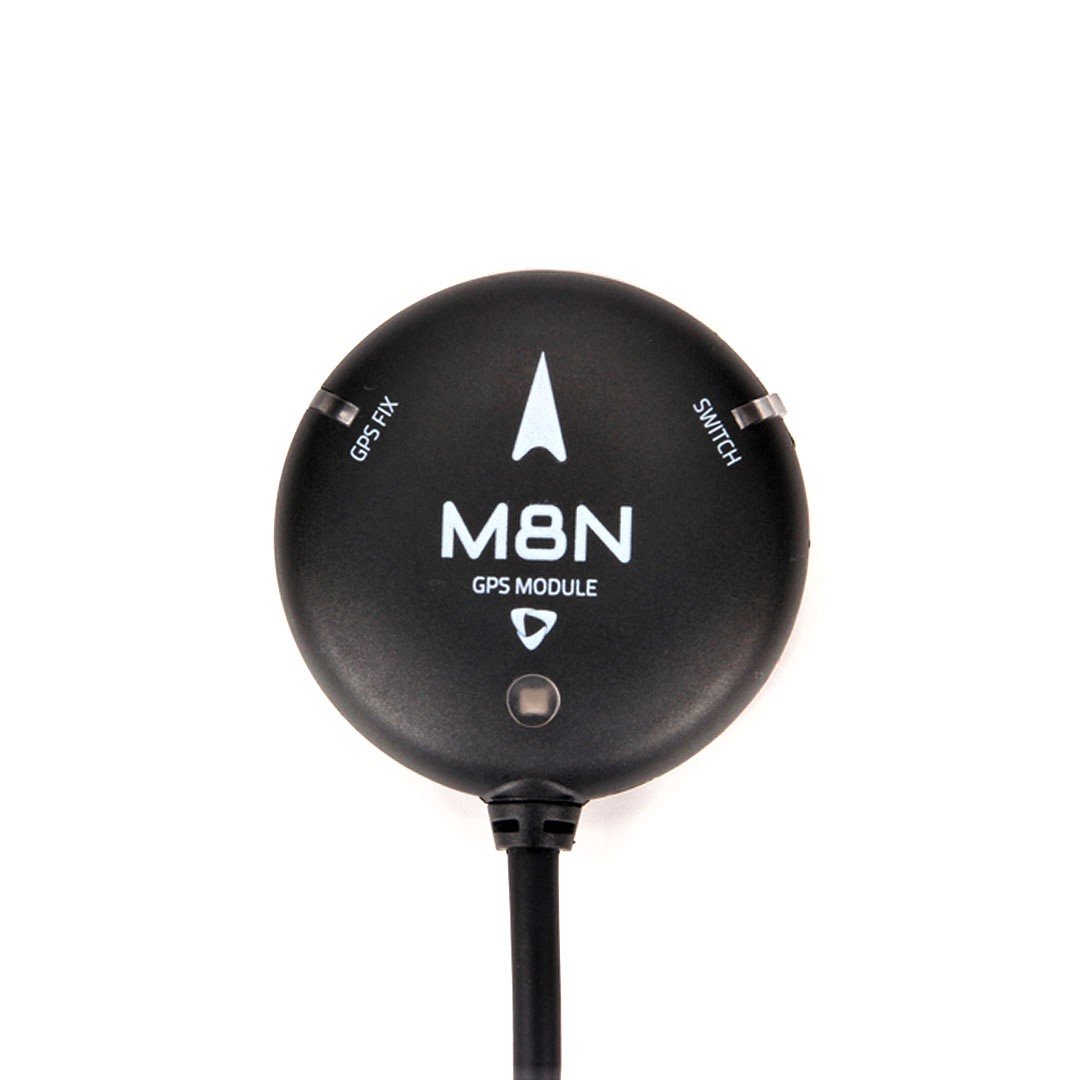

The M8N GPS has a UBLOX M8N module on it, as well as IST8310 compass and tri-colored, LED indicator. Also, the safety switch on it will make the connection more convenient and simple.

This module ships with a baud rate of 38400 5Hz

PIN MAP

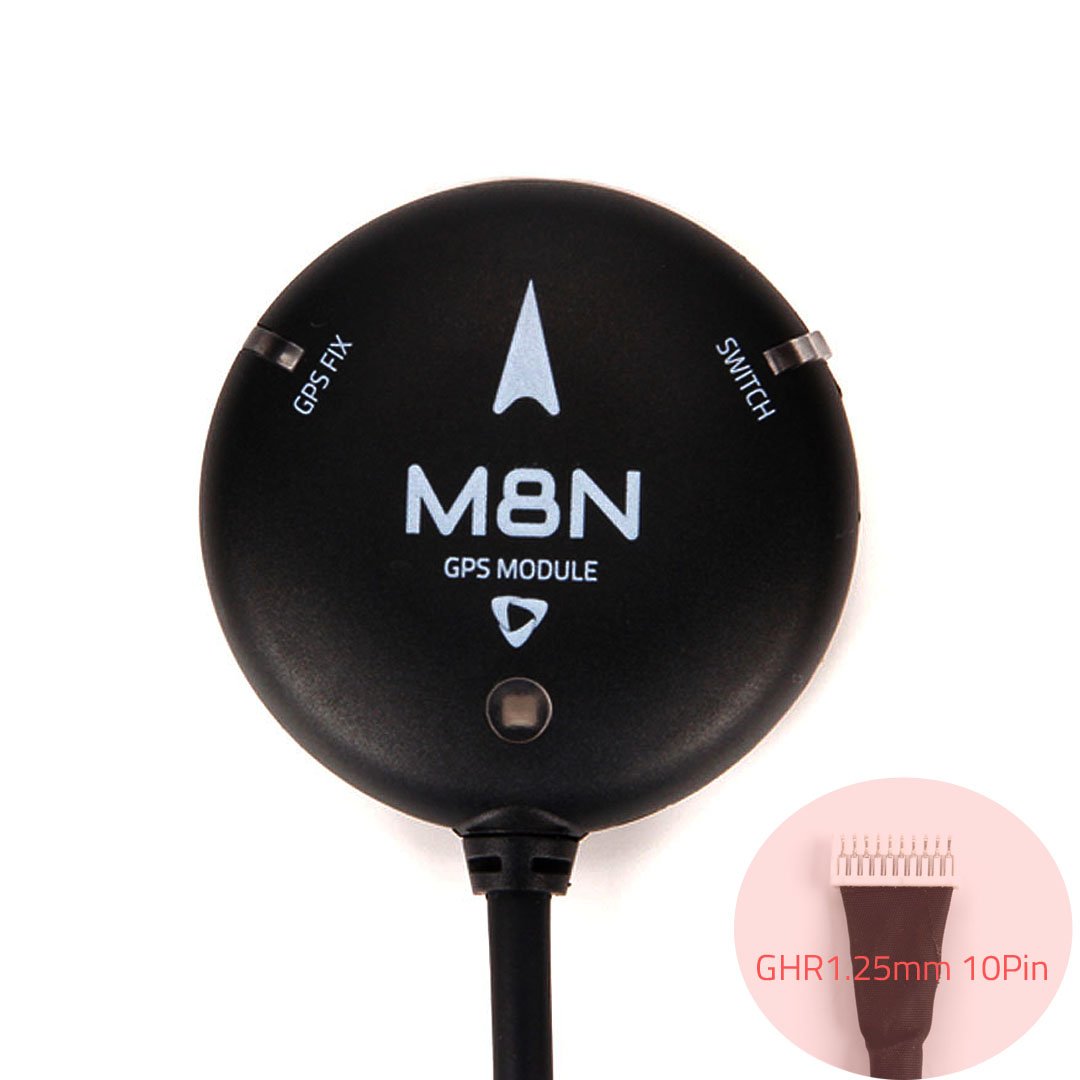

SKU12012  Holybro M8N GPS (JST GHR1.25mm 10pin cable):

This JST GH 10Pin connector can be used on Pixhawk Standard Flight Controller 10pin“GPS Module”or “GPS1” input port.

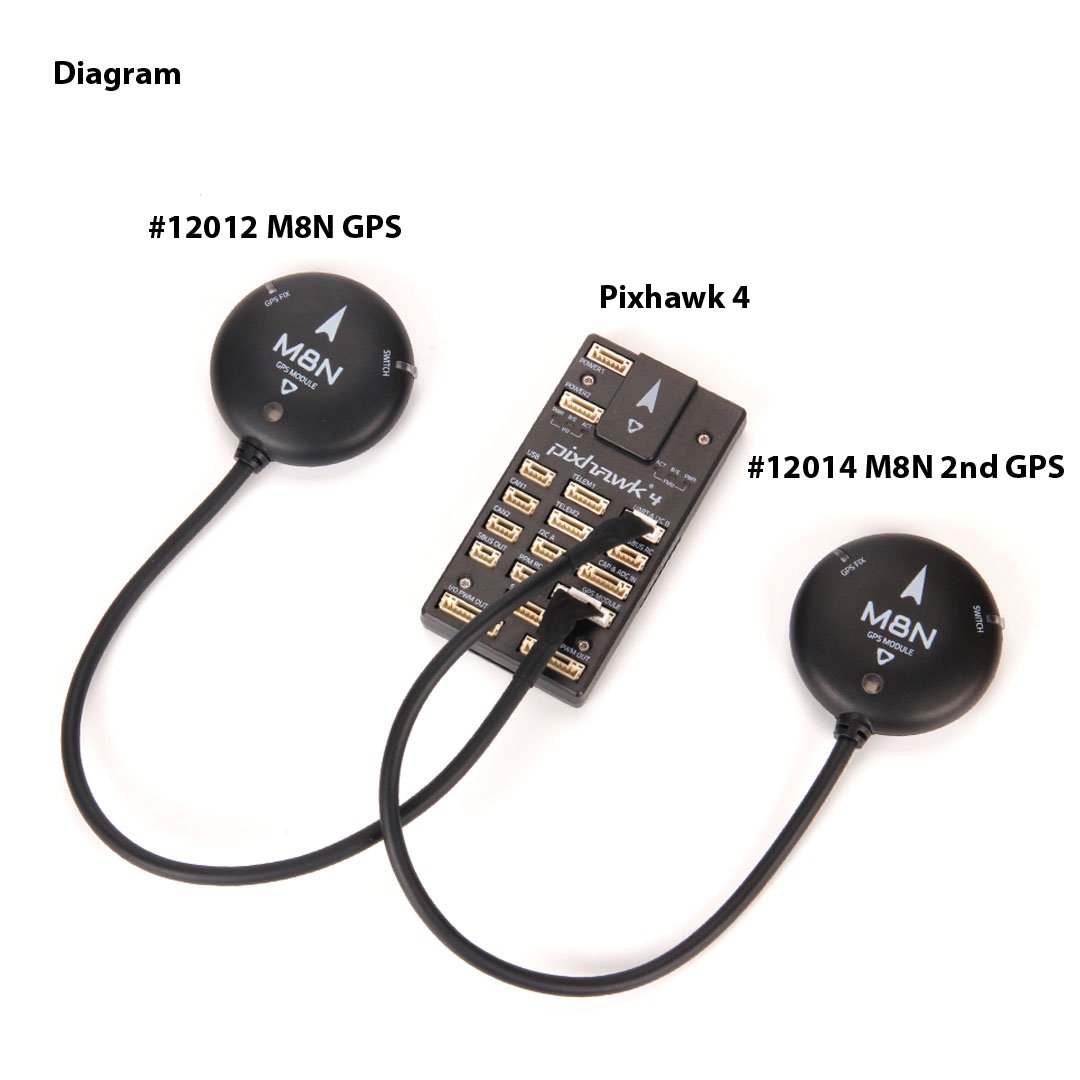

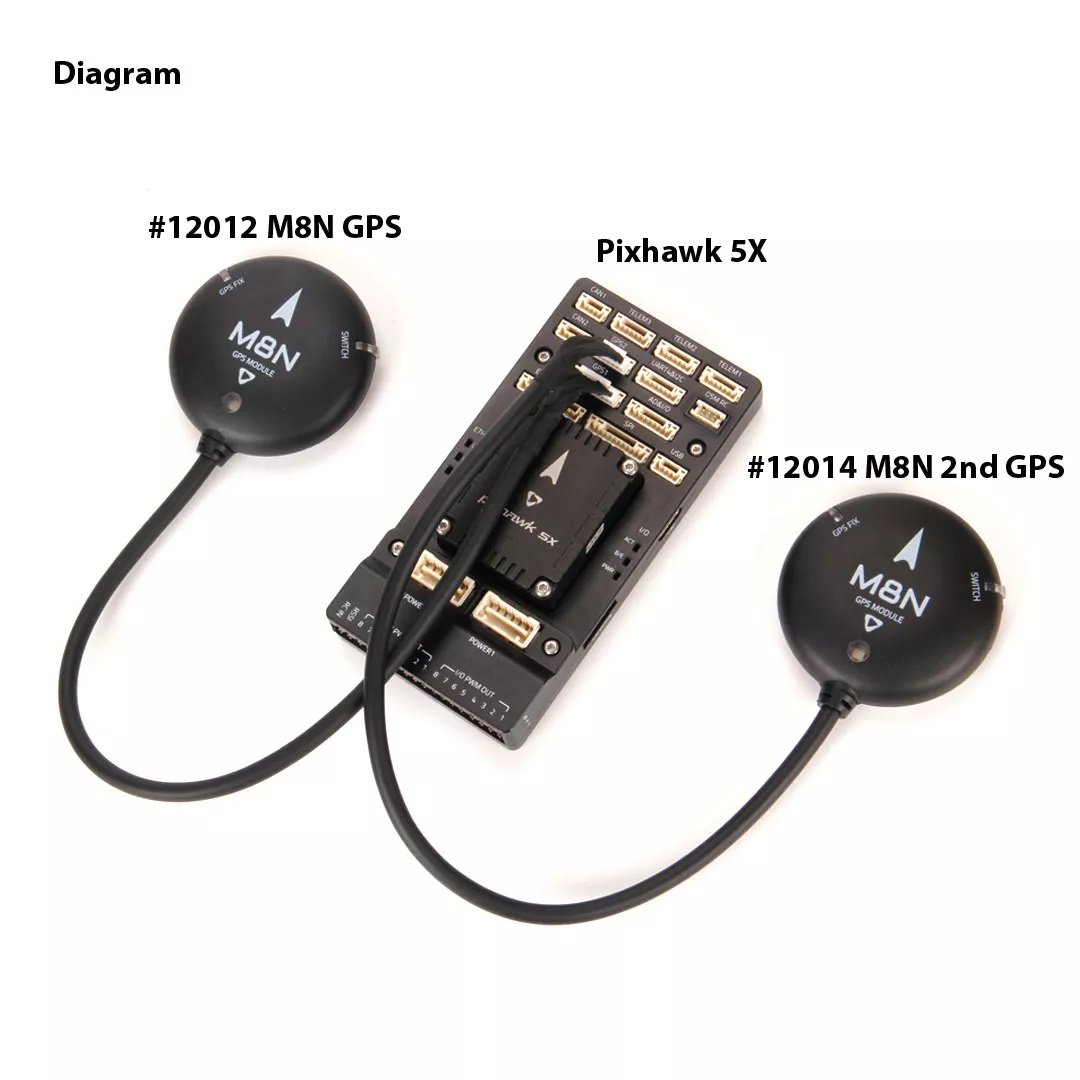

M8N GPS Diagram

M8N GPS Diagram

Features

  • Ublox Neo-M8N module
  • Industry leading –167 dBm navigation sensitivity
  • Cold starts: 26s
  • LNA MAX2659ELT+
  • 25 x 25 x 4 mm ceramic patch antenna
  • Rechargeable Farah capacitance
  • Low noise 3.3V regulator
  • Fix indicator LEDs
  • Protective case
  • 26cm Pixhawk4 compatible 10-pin cable included
  • Diameter 50mm total size, 32 grams with case

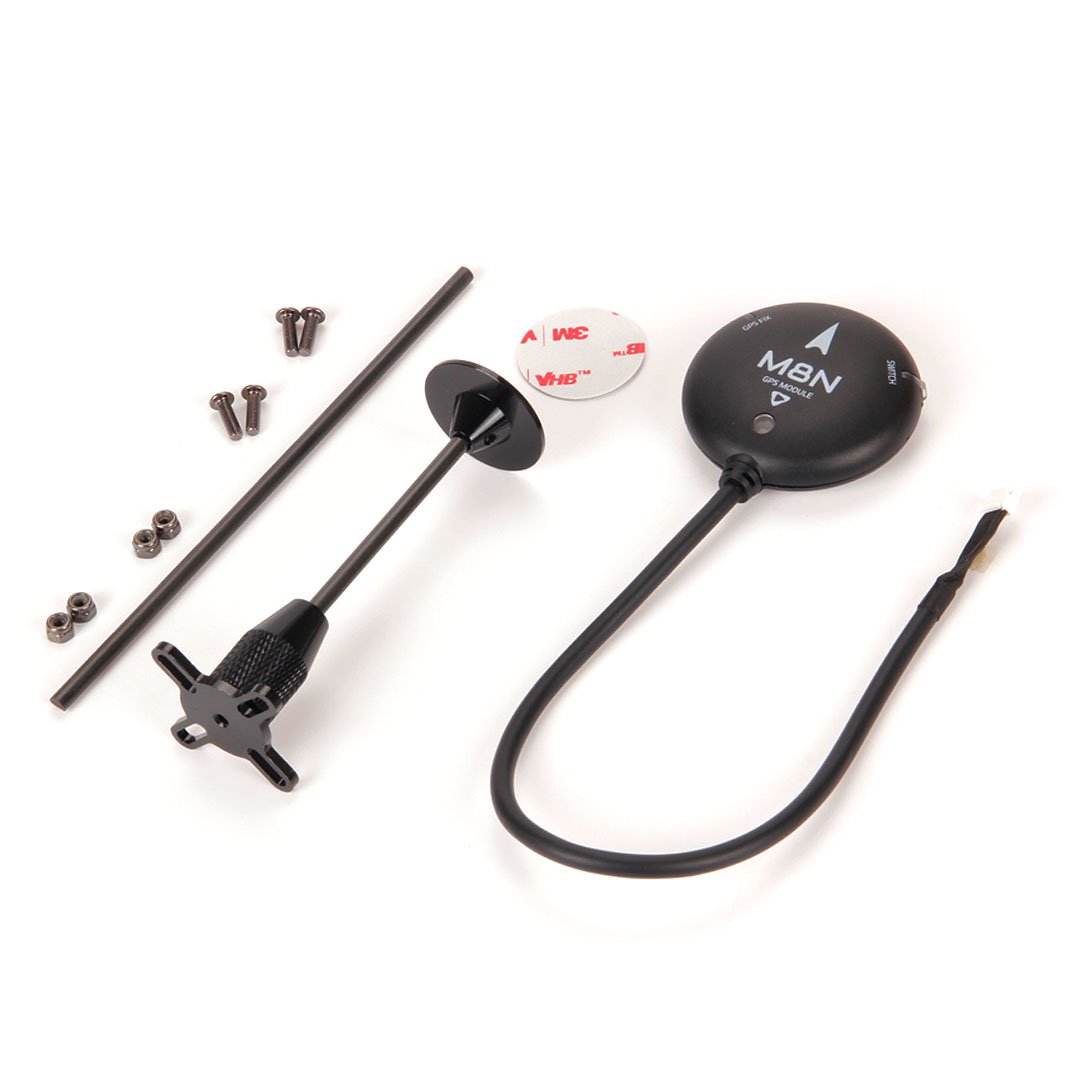

Includes

  • 1 x NEO-M8 with compass module
  • 1 x ‘X’ type folding pedestal mount
  • 1 x Carbon rod 70mm & 140mm
