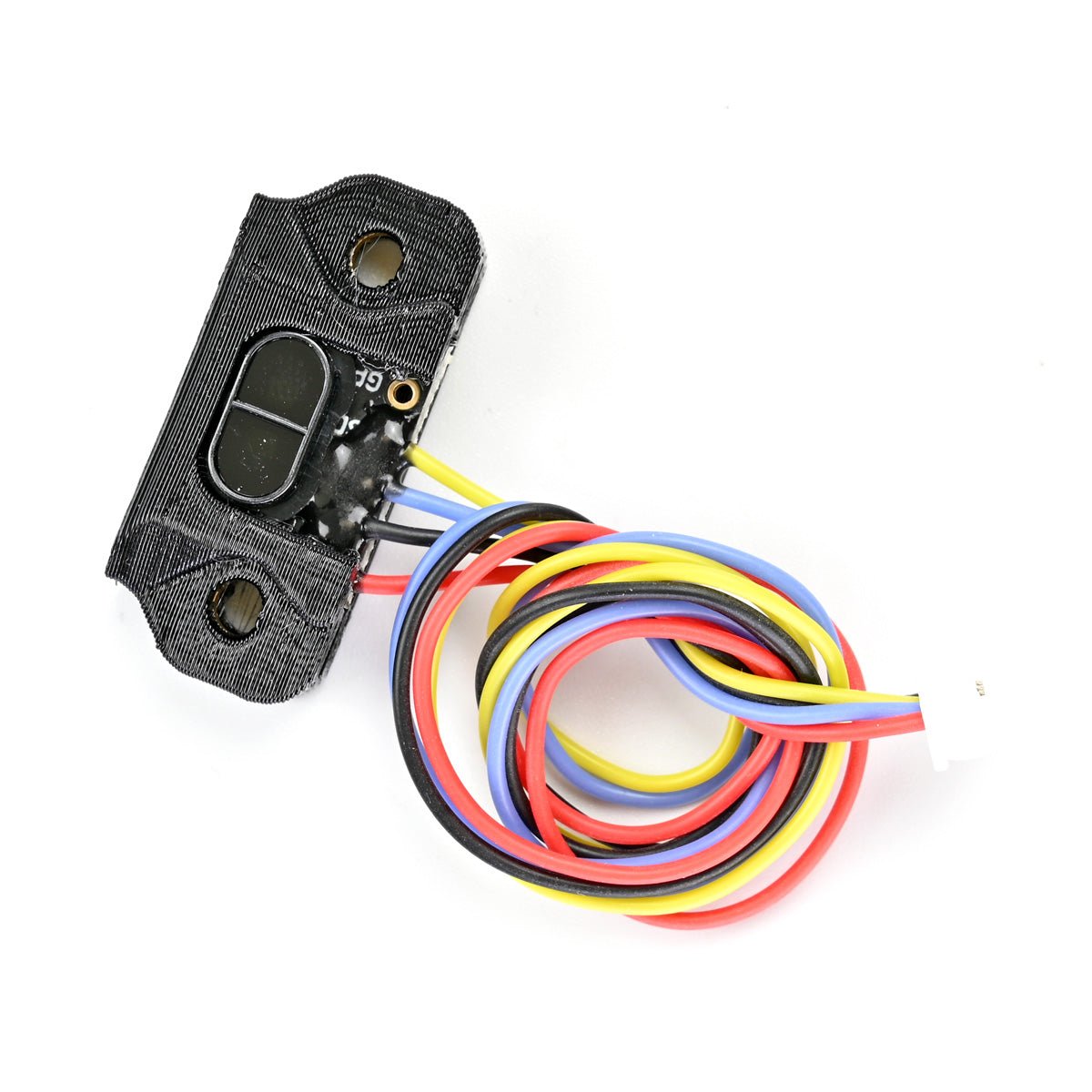

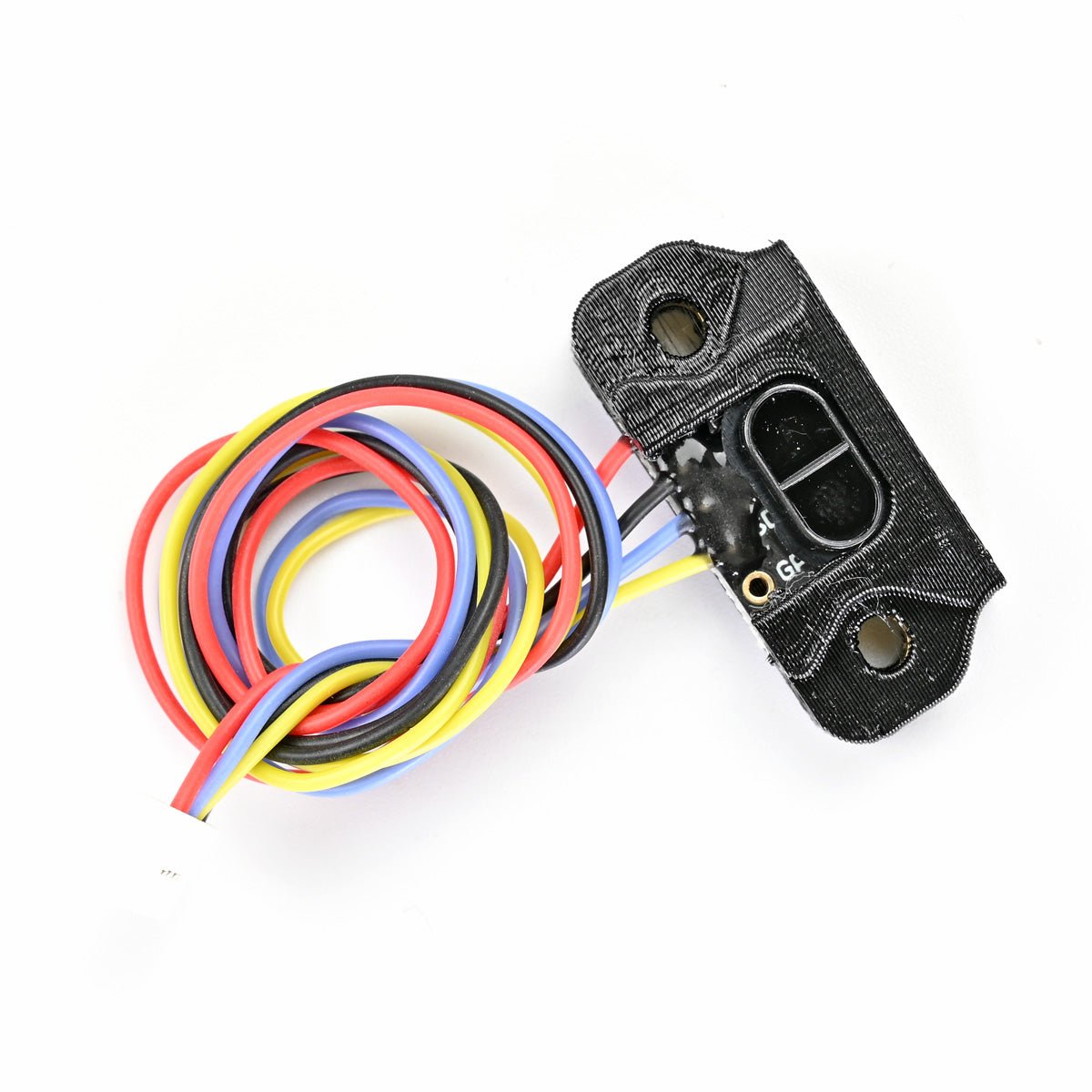

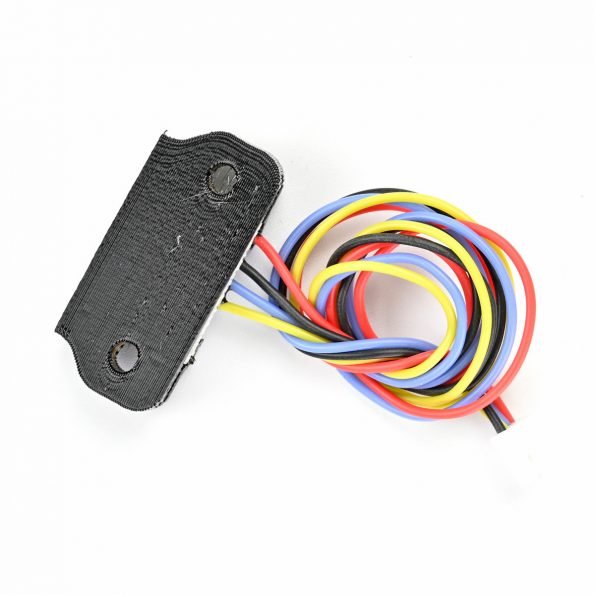

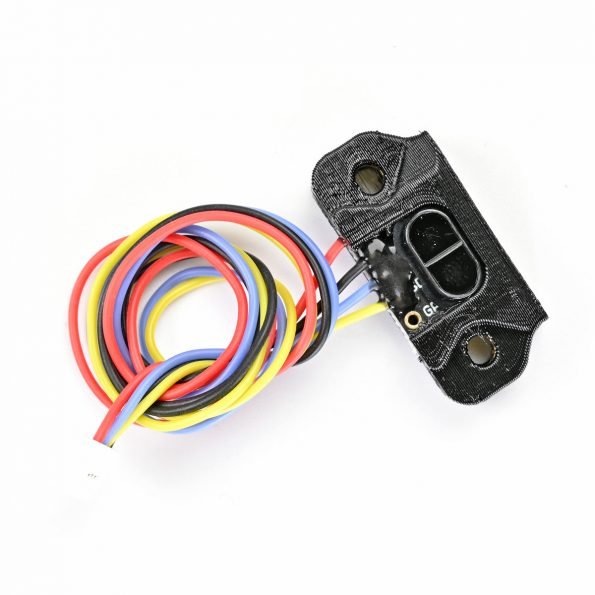

Holybro ST VL53L1X Lidar

AVAILABILITY: In Stock (7 items)

$29.40

Brand: Holybro

7 in stock

or 6 weekly interest-free payments from $4.90 with Laybuy what's this?

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

  Share

The ST VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense™ product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz.

Features

  • Fully integrated miniature module
    • Emitter: 940 nm invisible laser (Class1)SPAD (single photon avalanche diode) receiving array with integrated lens
    • Low-power microcontroller running advanced digital firmware
  • Pin-to-pin compatible with the VL53L0X FlightSense™ ranging sensor
  • Fast and accurate long distance ranging
    • Up to 400 cm distance measurement
    • Up to 50 Hz ranging frequency
  • Typical full field-of-view (FoV): 27 °
  • Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced
  • Programmable ROI position on the receiving array, providing multizone operation control from the host
  • Easy integration
    • Single reflowable component
    • Can be hidden behind many cover window materials
    • Software driver and code examples for turnkey ranging
    • Single power supply (2v8)
    • I²C interface (up to 400 kHz)
    • Shutdown and interrupt pins

Pinout Diagram

Holybro ST VL53L1X Lidar Pinout Diagram

ST VL53L1X Lidar
  • Working voltage:3.3-5V
  • Communication interface:I2C
  • Dimensions:25 x 10.7 x 3.2mm
  • Weight:2.4g
