Mateksys M10Q-3100

AVAILABILITY: In Stock (4 items)

$116.80

4 in stock

or 6 weekly interest-free payments from $19.46 with Laybuy what's this?

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

  Share

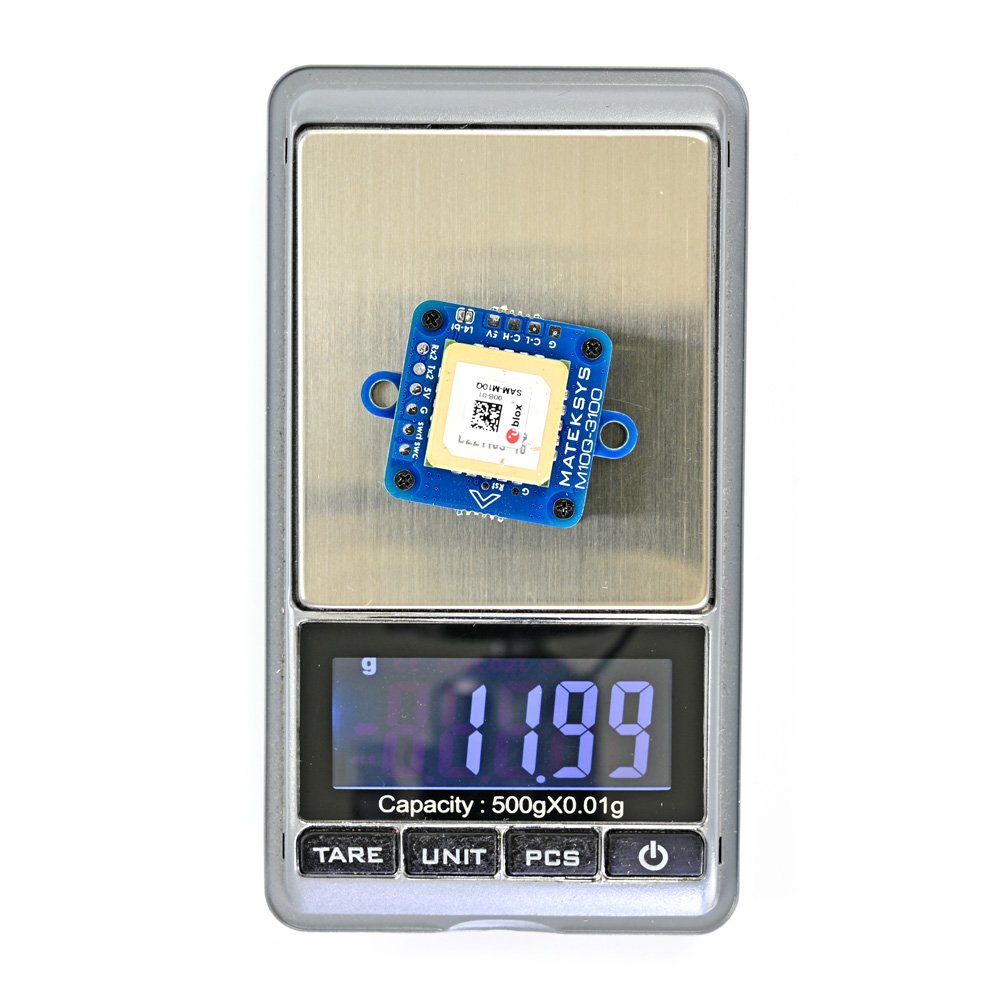

The Mateksys M10Q-3100 is a GNSS+COMPASS peripheral with CAN/DroneCAN and UART/MSP interfaces. It has integrated an industrial-grade compass PNI RM3100 which provides high resolution, low power consumption, no hysteresis, large dynamic range, and high sampling rates.

It uses multi-constellation GNSS powered by u-blox M10 series , It is a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.

M10A-3100

  • GNSS u-blox M10 series (GPS, GLONASS, Galileo and BeiDou)
  • Magnetic Compass PNI RM3100
  • Patch GNSS Antenna 15*15*4mm
  • CAN Node MCU STM32L431xC

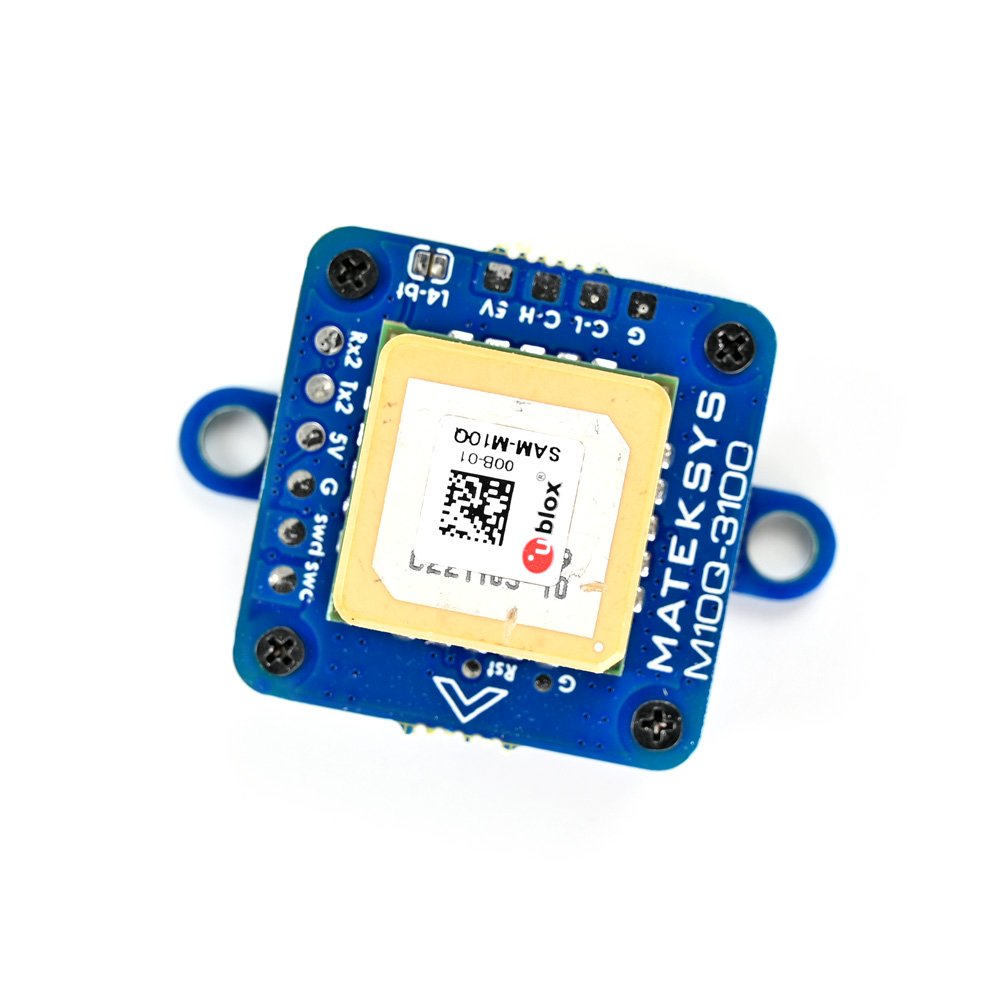

  • Interface
    • CAN(C-H, C-L), DroneCAN Protocol
    • UART2((TX2), MSP output
    • ST debug, SWCLK & SWDIO
  • CAN bootloader LED, Blue
    • Fast blinking,  Booting
    • Slow blinking, working
  • GNSS PPS LED, Green
    • solid on after powering on
    • blinking(1Hz) when GNSS has 3D fixed
  • 3.3V LED, Red
  • Power supply for M10Q-3100 board : 4.5~5.3V  @5V pad/pin
  • Power consumption: 50mA
  • Operating Temperatures: -20~85 °C

Firmware

  • ArduPilot AP_Periph: MatekL431-GPS
  • Update via DroneCAN GUI Tool or Mission Planner (AP_Periph.bin)
  • Update via STLink (AP_Periph_with_bl.hex)

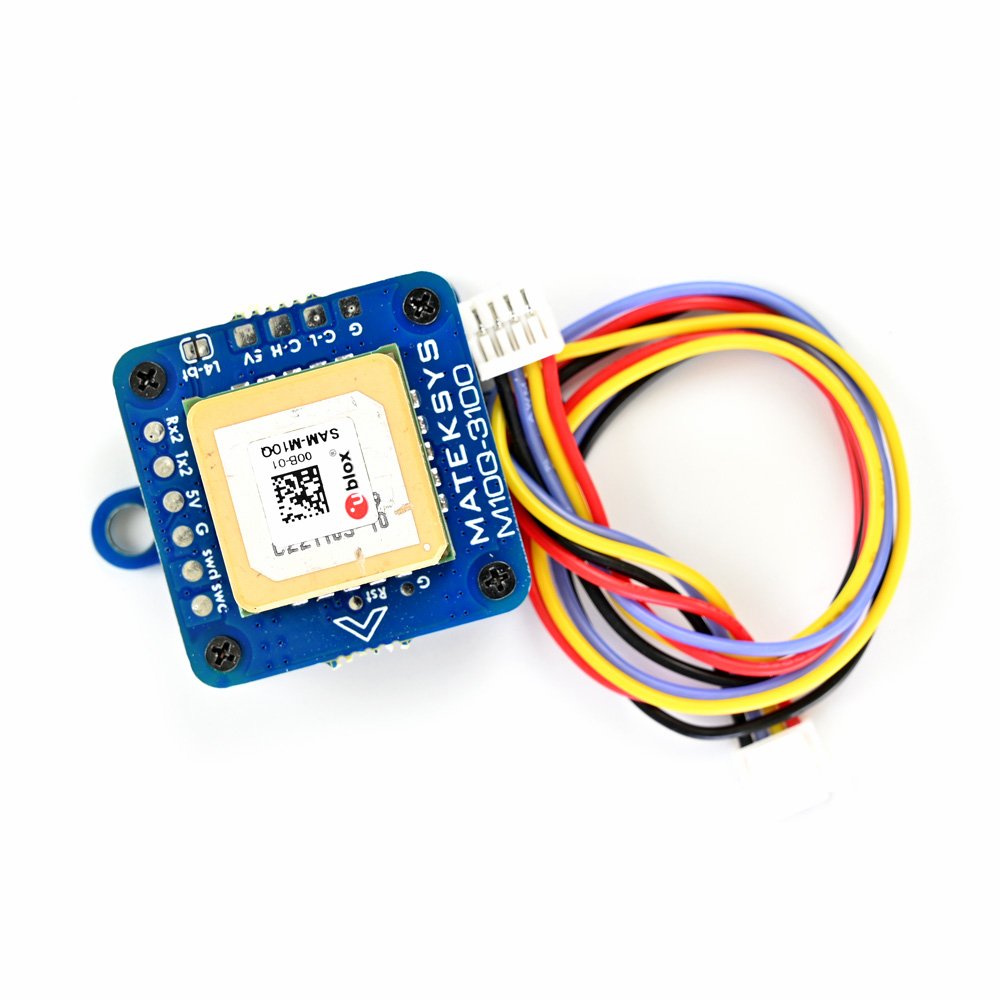

Includes

  • 1x M10Q-3100
  • 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
  • On M10-F4-3100, The 3 magnetic coils have little solder paste to avoid the excess to “tilt” them, resulting in some reading inaccuracies of the compass. Any strong impacts will definitely separate them, especially the “tall coil” Sen-Z-f.  Pls use this precision module with care.
  • Put magnetometer far from power lines/ESC/motors/iron based material. >=10cm
  • 2 ears for mounting can be cut off if you don’t need it.
  • The default configuration on M10 GNSS module with ublox FW 5.1 is concurrent reception of GPS, Galileo, GLONASS, and BeiDou B1C with QZSS and SBAS enabled.
  • Start with u-blox GNSS FW3.01, timepulse is aligned with UTC time and that time is set valid only after leap second is downloaded. That could take up to 12.5 min. Probably PPS LED will not blink immediately after GPS has 3D fixed.
  • The M10Q-3100 provides the ability to reset the receiver. Bridging “Rst” pad(nearby the arrow) to Ground for at least 100 ms will trigger a cold start. RESET will delete all information and trigger a cold start. It should only be used as a recovery option. If you are sure wiring and setup are all right. but GNSS can’t receive any satellites after tens of minutes, try doing reset.
  • The scratches on ceramic antenna are the result of tuning the antenna.
