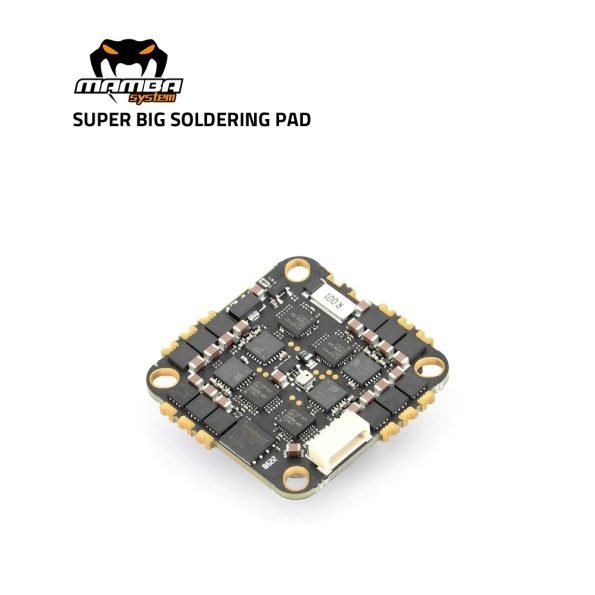

Introducing the Mamba MK4 F740 AIO WIFI flight controller by Diatone. This is a full-featured all-in-one flight controller and ESC that is perfect for Sub 250g, 3, 4, and 5-inch quads. It is equipped with an F7 processor, 40A ESC, Barometer, OSD Chip, 16M of Blackbox memory, and a connector to make connecting your video transmitter of choice a breeze. This Wifi version also includes the ability to connect to the SpeedyBee app wirelessly via Wifi.

Mamba MK4 F740 AIO WIFI

  • Target:MAMBA F722_2022B
  • MCU: 216MHz STM32F722
  • GYRO: ICM-42688-P
  • Barometer: Yes
  • OSD: Yes
  • Blacbox: 16 M Flash Memory
  • Uarts: 6 Set
  • Motor Signal:4 Set
  • ESC Soft: Dshot300/600
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller: BF LED
  • AIR UNIT Port: Yes
  • WIFI: SpeedyBee (WIFI) Optional
  • F.Port: Yes
  • RSSI: No
  • Buzz: Yes
  • Input: 3~6S Lipo (12.6~25.2V)
  • BEC Protection: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • BEC: 3.3V 0.5A&  5V 2A
  • Mounting size: 25.5 × 25.5mm/M2

40A ESC Specifications

  • Input: 3~6S Lipo (12.6~25.2V)
  • Continue Current: 40A×4
  • Burst current: 45A (10S)
  • Target:BLHeli_32 MAMBA F40_128K
  • SOFT: Dshot300/600
  • PWM:24~128K


  • High Frequency 470uF/35V ×1
  • AIR UNIT sh1.0 ×1
  • 16AWG 60mm ×2
  • AMASS Original XT60

Mamba MK4 F740 AIO WIFI Wiring Diagram
