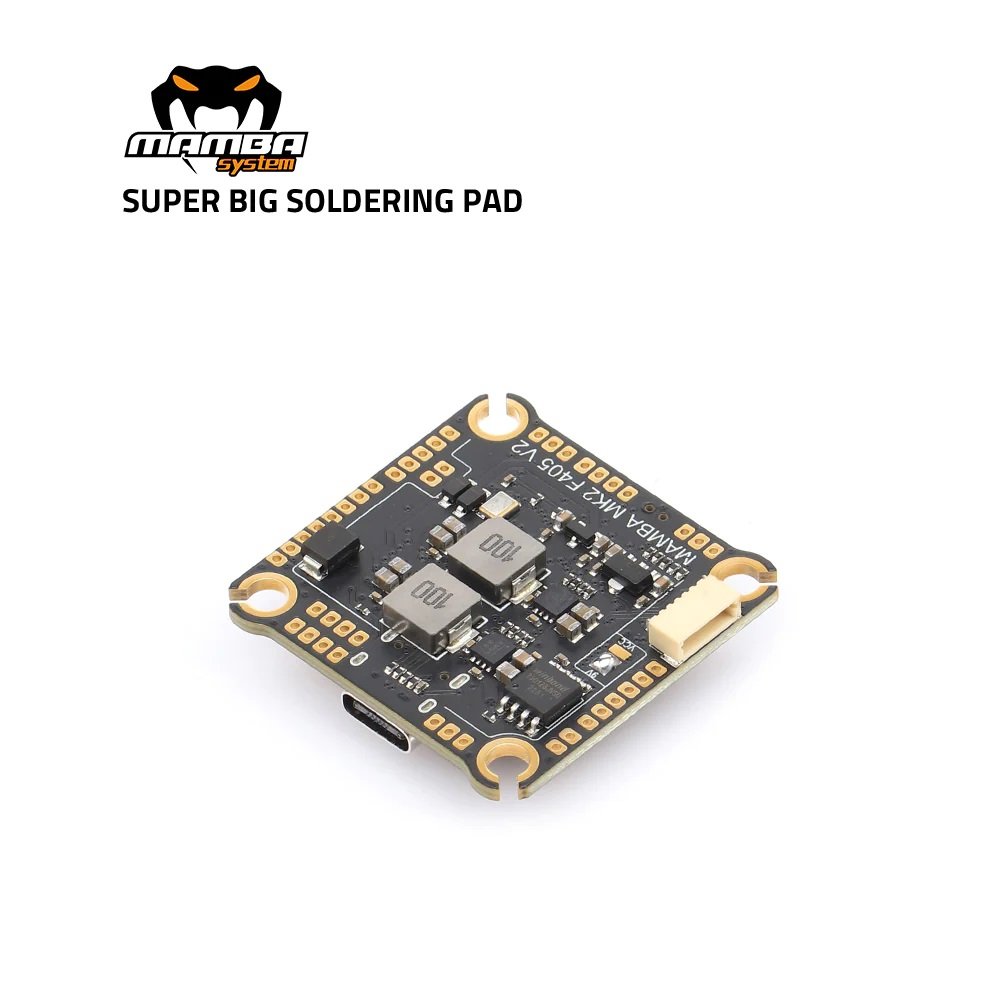

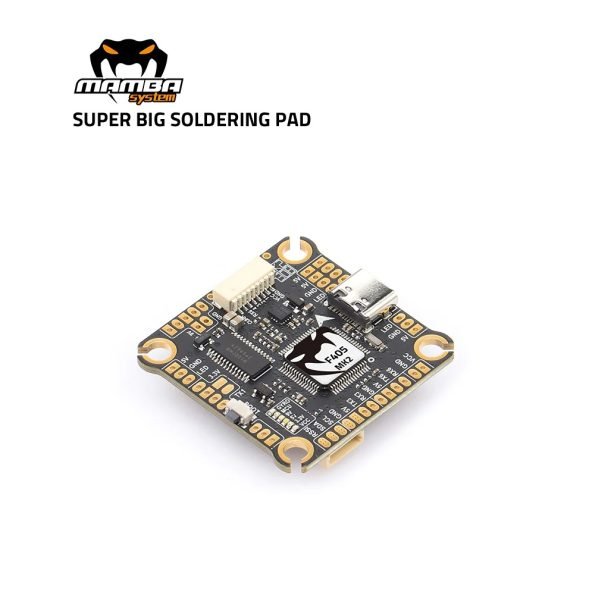

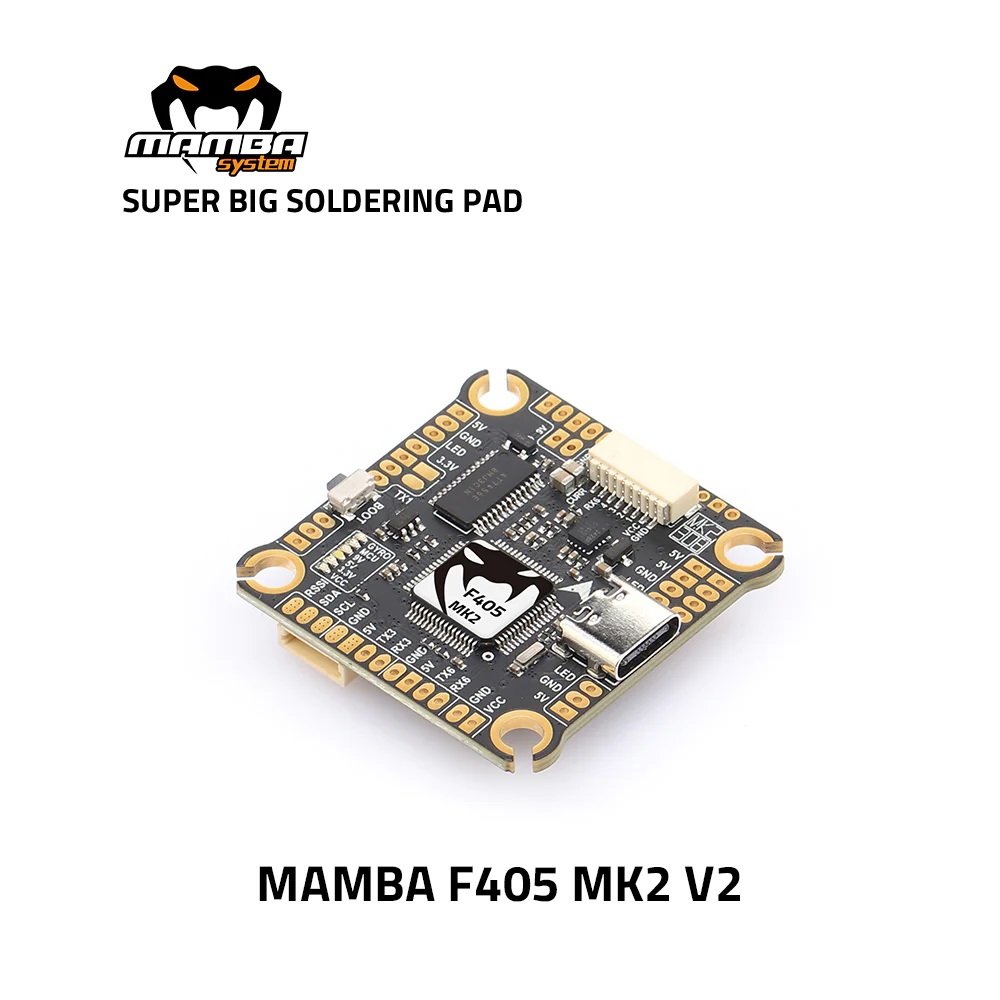

This Mamba MK2 F405 V2 by Diatone is a flight controller with an ICM42688 Gyro, making this FC the perfect addition to your FPV build.

Mamba MK2 F405 V2

  • MCU: STM32F405
  • Frequency: 168MHz
  • GYRO: ICM-42688-P
  • OSD: AT7456E
  • Blacbox: 16M Flash Memory
  • Barometer: No
  • Uarts: 3 Set
  • I2C: Yes
  • F.Port: No
  • RSSI: Yes
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 4 Set
  • BEC 3.3V: 0.5A
  • BEC 5V: 2A
  • BEC 9V: 3A
  • BF LED: Yes

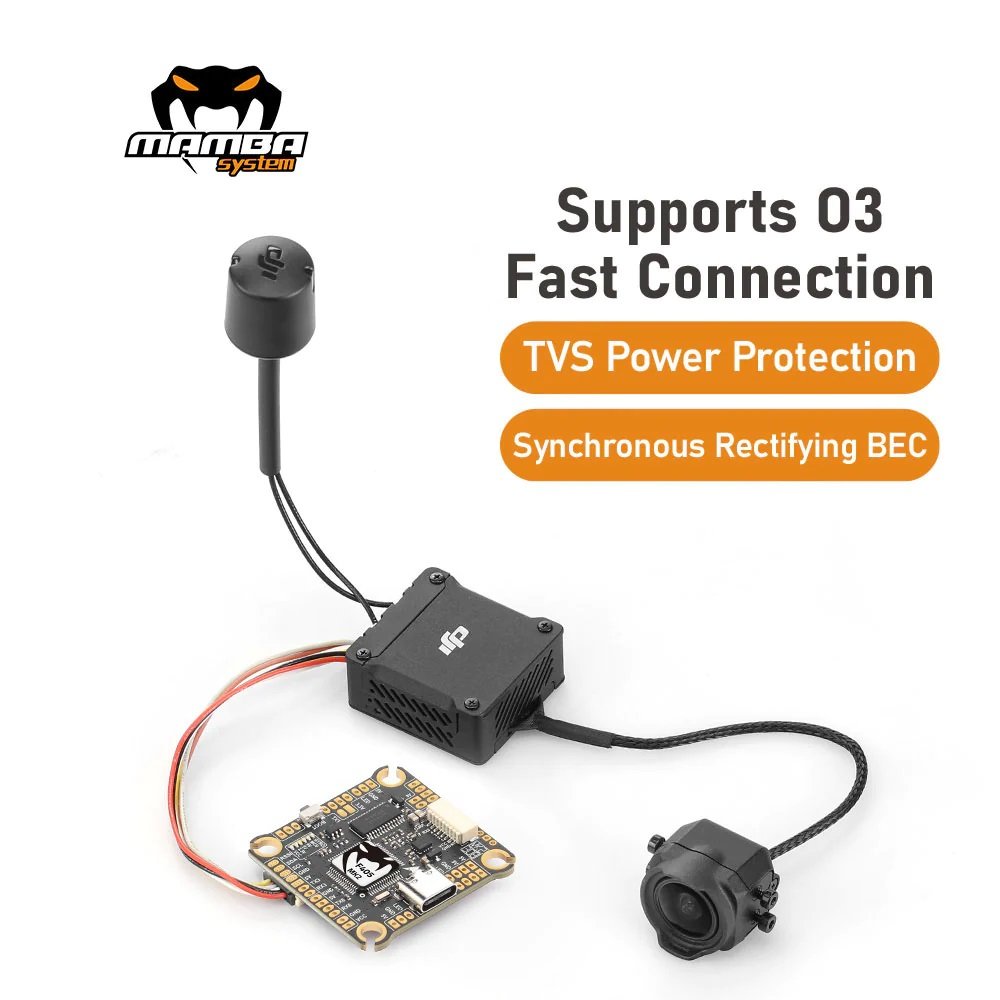

  • AIR UNIT Port: Yes
  • BEC Protection: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • Input: 3~6S Lipo (12.6~25.2V)
  • Mounting: 30.5mm x 30.5mm/M3
  • Size: 36 x 38 x 8mm

Mamba MK2 F405 V2 Wiring Diagram
