    Mamba F405 Mini MK4 FC

    Diatone Mamba F405 MK4 Mini Flight Controller

    $72.80

    Ask a Question


      Share

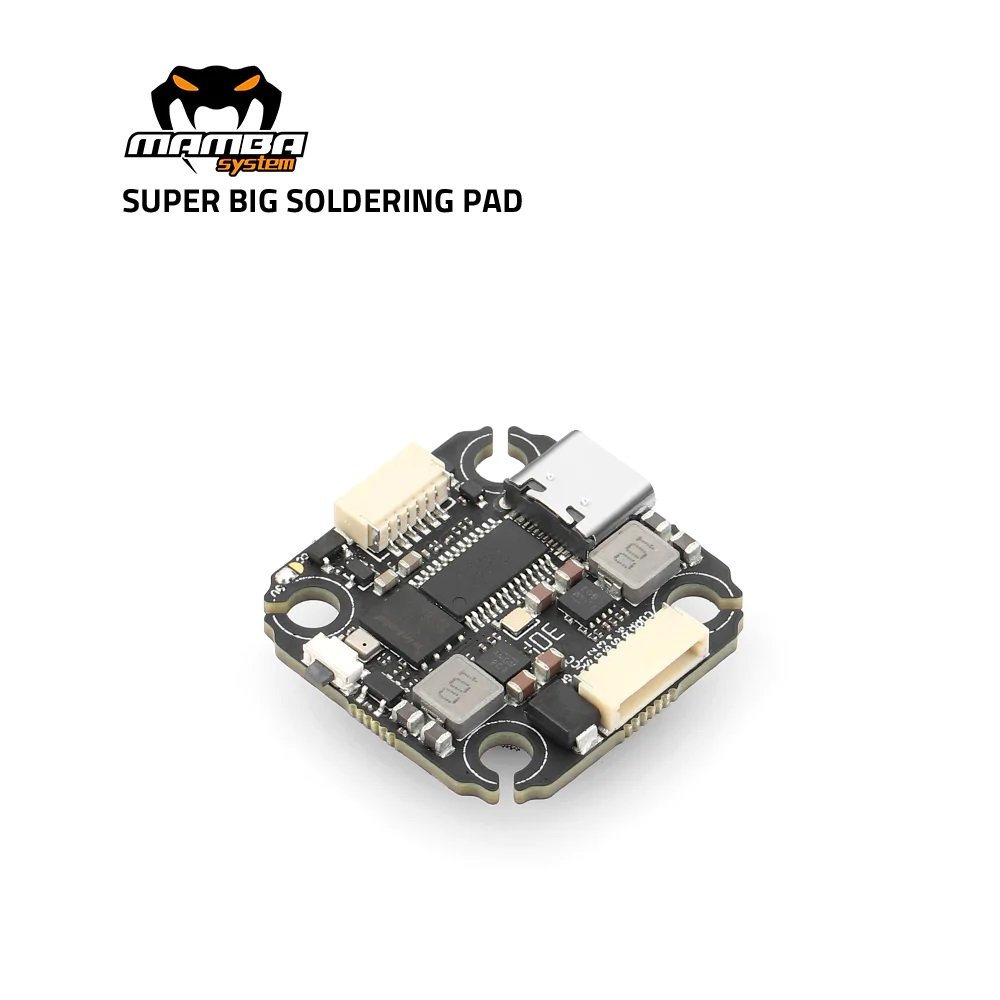

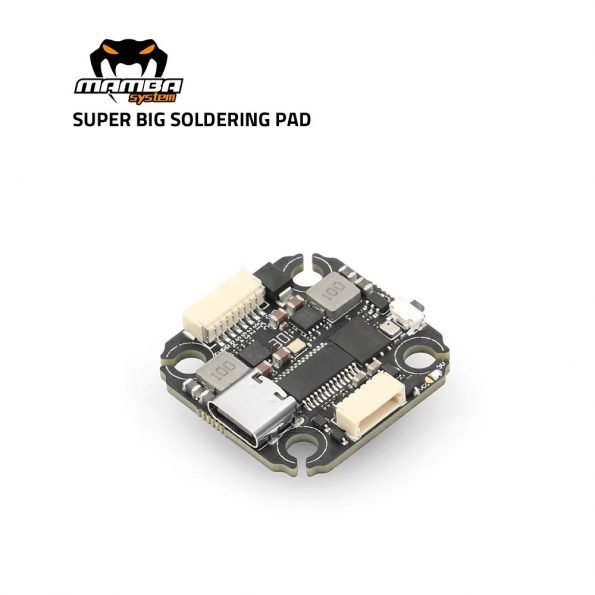

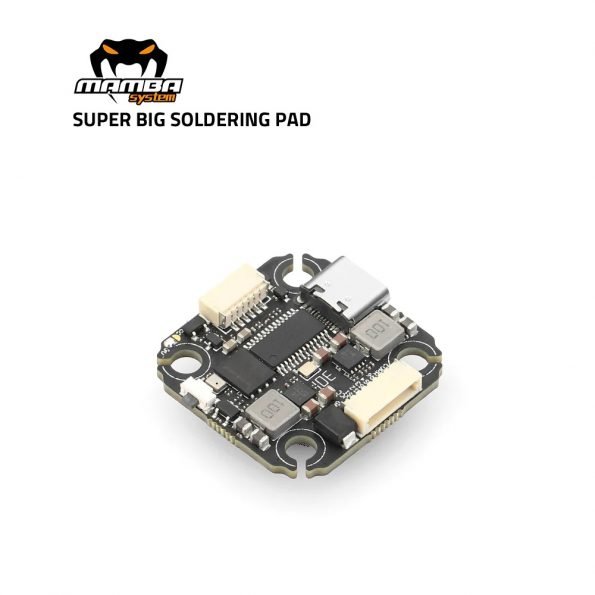

    Introducing the Mamba F405 MK4 Mini Flight Controller from Diatone. The pad style has been redesigned to increase pad area by 30% and pad spacing by 100%, reducing solder errors and associated failures. It’s an all-around easier-to-use flight controller with build in Type-C USB!

    Mamba F405 MK4 Mini Flight Controller
    • MCU: 168MHz STM32F405
    • IMU: ICM42688P
    • Baro: Yes
    • OSD: AT7456E
    • Blacbox: 16M Flash Memory
    • Uarts: 6 Set
    • Receiver: TBS/PPM/SBUS/IBUS/DSM
    • I2C: Yes
    • S/F.Port: Yes
    • Buzzer Pad: Yes
    • CURR Pad: Yes
    • ESC Signal: 6 Set
    • BEC 3.3V: Yes/0.5A
    • BEC 5V: Yes/2.5A
    • BEC 9V: Yes/2.0A
    • BF LED: Yes
    • Air Unit Port: Yes
    • VTX Switch: Yes
    • TVS Protection: Yes
    • Input: 6S Lipo
    • Mounting: 20.0 x 20.0mm, M2/M3
    • Size: 29.0 x 29.5 x 6.5mm
    • Weight: 6.0g
    Includes
    • 1 x Mamba F405 MK4 Mini Flight Controller
    • 1 x 8pin SH1.0
