Diatone Mamba F722 APP MK4 Flight Controller

AVAILABILITY: In Stock (3 items)


Brand: Diatone

3 in stock

or 6 weekly interest-free payments from $14.80 with Laybuy what's this?

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

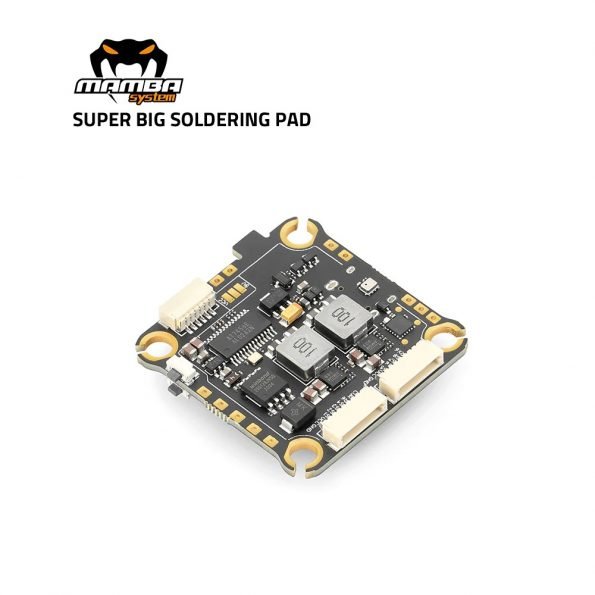

Diatone Mamba F722 APP MK4 flight controller, equipped with a ICM42688P gyro. This fourth generation of FC brings in particular more space thanks to the new style of pads which will reduce welding errors.


  • 30.5 x 30.5mm Mounting Pattern
  • 16M Flash Memory Blackbox
  • 3 ~ 6S Lipo (12.6 ~ 25.2V) Input
  • WiFI SpeedyBee Capabilities
  • ICM42688P GYRO
  • 6 Uarts
  • Buzzer
  • OSD
Mamba F722 APP MK4 Flight Controller
  • MCU: 216MHz STM32F722
  • IMU: Dual ICM42688P
  • Baro: SPL06
  • OSD: AT7456E
  • Blacbox: 16M Flash Memory
  • Uarts: 6 Set
  • I2C: Yes
  • S/F.Port: Yes
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 8 Set
  • BEC 3.3V: Yes/0.5A
  • BEC 5V: Yes/3.0A
  • BEC 9V: Yes/3.0A
  • MB LED: Yes
  • BF LED: Yes
  • Air Unit Port: Yes
  • WIFI: SpeedyBee APP
  • VTX Switch: Yes
  • BEC Protection: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • Target: Mamba F722_2022A
  • Input: 6S Lipo
  • Mounting: 30.5 x 30.5mm/M3
  • Size: 38.0 x 40.5 x 8mm
  • Weight: 10.0g
  • 1 x Diatone Mamba F722 APP MK4 Flight Controller
  • 1 x 8pin SH1.0
