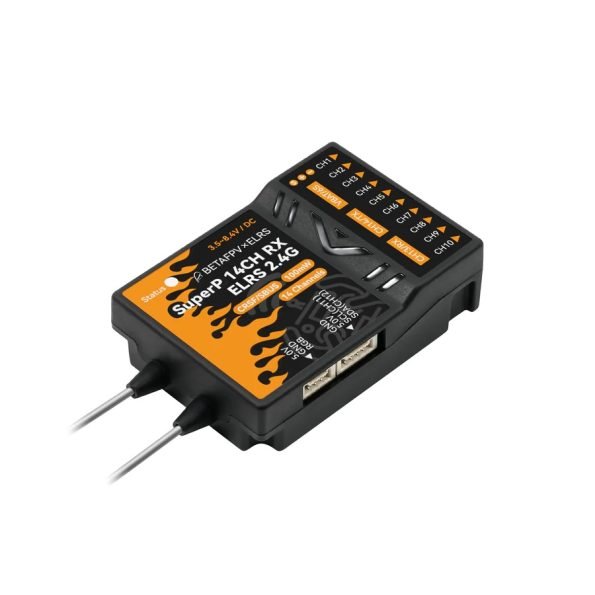

SuperP 14CH Diversity Receiver has been designed not only for long-range flying, aerial photography but also suitable for the application of fixed-wing, helicopters, RC cars, boats and etc. It has TCXO oscillator, two antennas, dual receiver chains, Plug-N-Play ports and other features which support 14 channels for the external barometer, RGB light strip, plus other external sensors that are currently under development.

Features

  • Featuring 14 PWM channels, this receiver is suitable for different applications. It can drive up to 14 servos allowing for more complex and precise control. In addition, an external sensor such as a barometer, current sensor, etc, is also supported.
  • A true diversity receiver with two complete RF receiver chains (referring to dual SX1280/SX1281 or dual SX1276), based on the latest official ExprssLRS. It comes with ExpressLRS V3.3 firmware.
  • Built in a TCXO (temperature-compensated crystal oscillator), it is shared by two RF chips for a super accurate clock source. It can withstand extreme temperatures with no fear of heat and cold, continuously outputting accurate frequency for long-range flight.

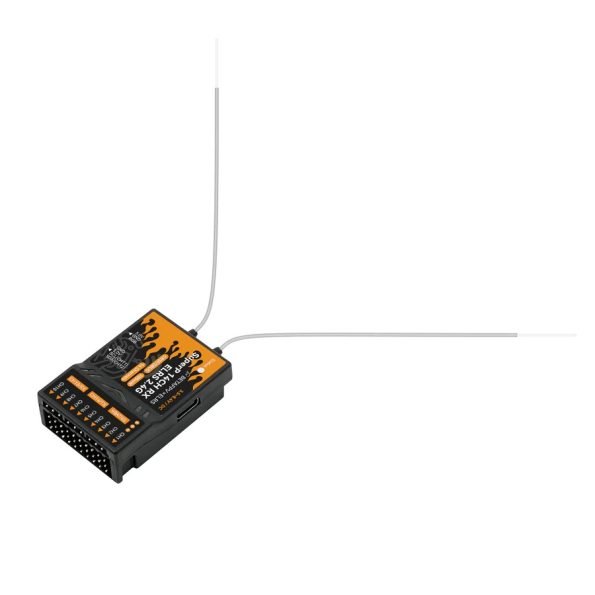

  • Two antennas will create an omnidirectional signal for good signal transmission. Placing the antenna separately and vertically to get a better signal is recommended.
  • With the support of the fail safe function, it is capable of protecting RC models from being out of control.

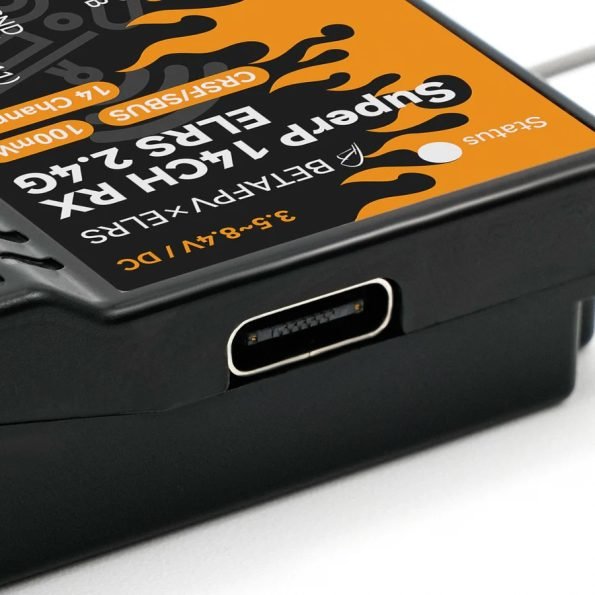

  • Reserving a Type-C USB port, it is convenient for pilots to flash the firmware. The plug-and-play design makes it very easy and friendly to use.
  • The 900MHz radio system exhibits greater diffraction ability due to its lower frequency, while the 2.4GHz systems tend to be directional and susceptible to attenuation caused by buildings, foliage, or moisture.

SuperP ELRS Diversity 2.4GHz Receiver

  • Item: BETAFPV SuperP 14CH Diversity Receiver | ELRS 2.4GHz
  • MCU: ESP32 Pico D4 + 2*SX1280/SX1281 + 2*AT2401C (2.4GHz)
  • Telemetry Power: 20dBm/100mW (2.4GHz)
  • Frequency Bands: 2.4GHz ISM
  • Rated Current: 180mA@5V (2.4GHz)

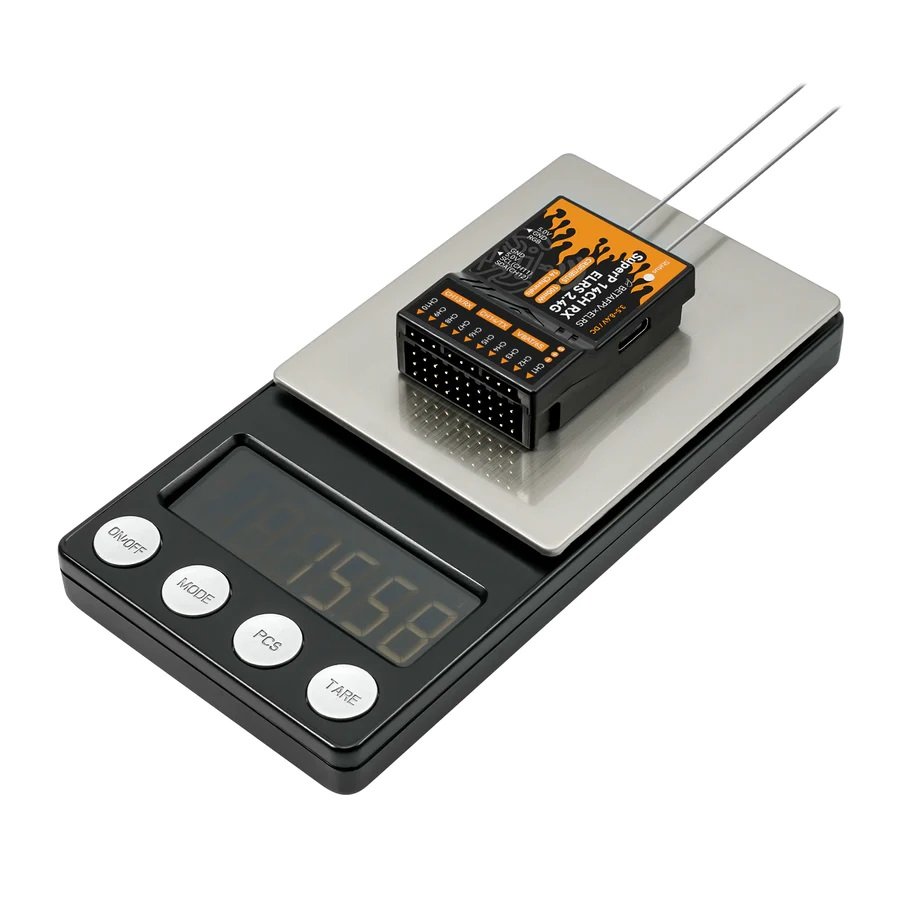

  • Weight: 15.5g (2.4GHz)
  • Default Firmware Version: ExpressLRS V3.3.0
  • Serial Output Protocol: PWM, CRSF or SBUS
  • Antenna: 2* IPEX MHF 1 Antenna
  • Size: 46.9mm*32.7mm*14.6mm
  • Voltage Detector Range: 1~6S
  • Input Voltage: 3.5V~8.4V DC
  • PWM Channel: 14 Channels>
  • Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.

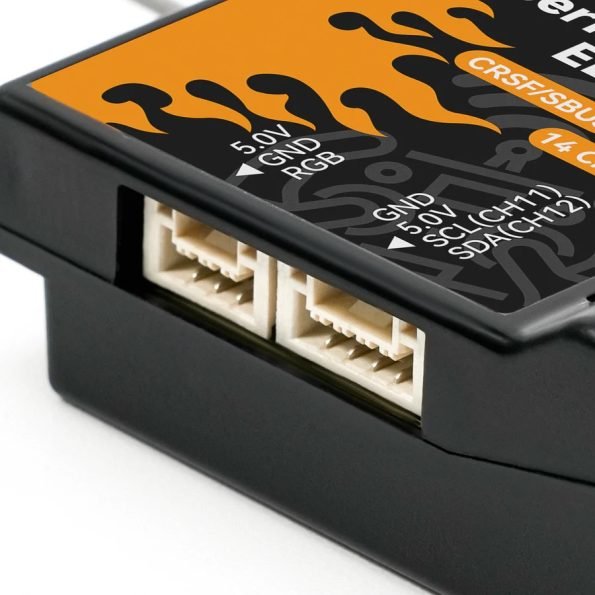

Based on BETAFPV SuperD True Diversity Receiver and Micro Receiver, the SuperP 14CH Diversity Receiver takes the good features of them. For example, 14 PWM channels, two antennas, dual receiver chains, TCXO oscillator, etc. Besides, it has an I2C serial port for more external sensors such as a barometer, and a 3-pin port is reserved for RGB light strip. With the combination of the good points, SuperP RX ensures stability and reliability for users.
SuperP RX Micro RX SuperD RX
Weight 15.5g (2.4GHz), 15.8g (915/868MHz) 3.5g(2.4GHz) 1.1g (2.4GHz)1.2g (915/868MHz)
Antenna IPEX MHF 1 Antenna IPEX MHF1 + T antenna IPEX MHF1 + T antenna
PWM Channel 14 CH 5 CH -
Frequency 2.4GHz ISM, 915MHz (FCC), 868MHz (EU) 2.4GHz ISM 2.4GHz ISM, 915MHz (FCC), 868MHz (EU)
Telemetry Power 100mW(2.4GHz), 50mW(915/868MHz) 17mW(2.4GHz) 100mW(2.4GHz), 50mW(915/868MHz)
Serial Protocol PWM, CRSF or SBUS PWM, CRSF CRSF
Input Voltage 3.5~8.4V 5~9V 5V
Battery Voltage Detector 1-6S 1-6S -
Supported Device Barometer(SPL06) - -
Model Type Fixed-wing aircraft, Helicopter, RC Cars, RC Boats Fixed-wing aircraft, Helicopter, RC Cars, RC Boats FPV Drone, Fixed-wing aircraft
