RadioMaster RP3 V2 ELRS 2.4GHz Nano Receiver
AVAILABILITY: In Stock (5 items)
$36.40
Brand: RadioMaster
5 in stock
Discover the cutting-edge capabilities of the RadioMaster RP3 V2 ELRS 2.4GHz Nano Receiver. Featuring advanced technology like a TCXO for enhanced signal stability and ExpressLRS firmware for exceptional range, this receiver is designed to elevate your flying experience. With built-in Wi-Fi for easy firmware updates and innovative binding options, the RP3 V2 is a game-changer for RC enthusiasts seeking reliability and performance in demanding environments.
Features

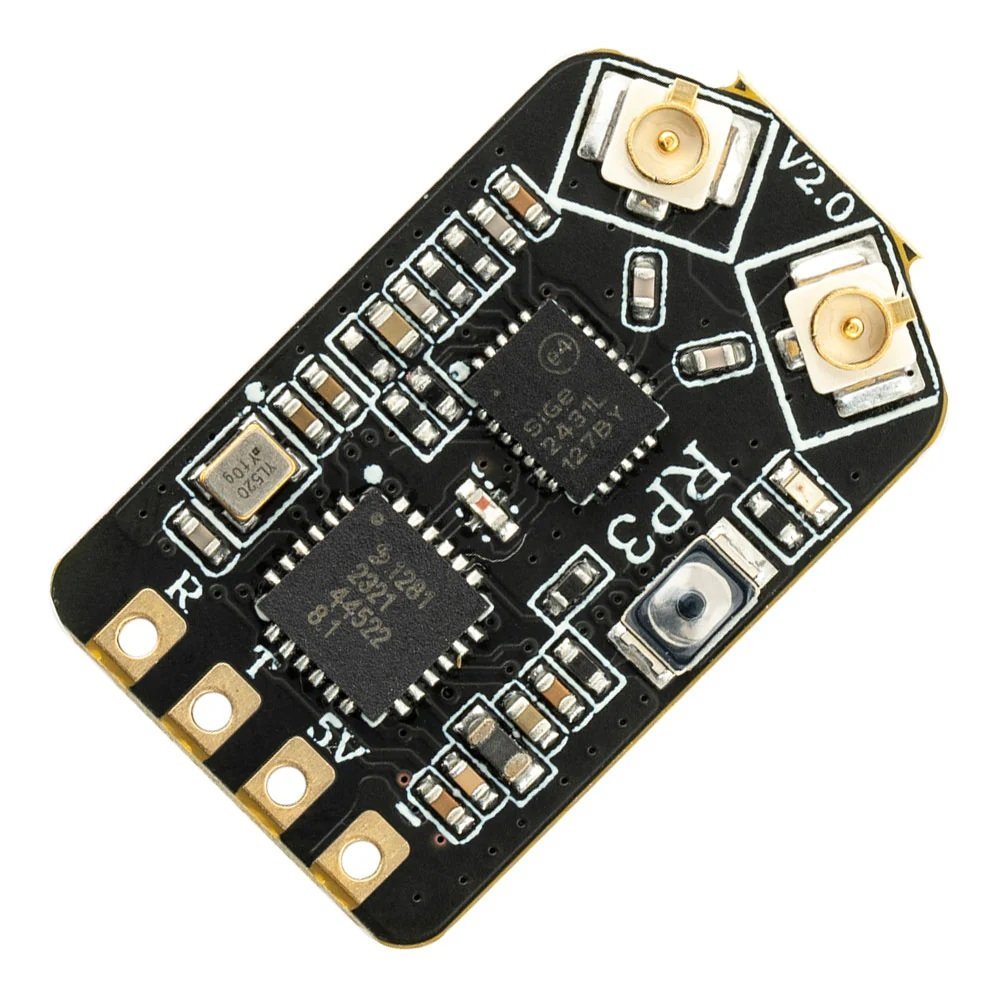

- Optimized PCB design for better heat dissipation
- LNA for better receiver range
- PA for better telemetry range
- Antenna Diversity for improved signal stability and range
- Built-in a TCXO (temperature compensated crystal oscillator)
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
RP3 Diversity Receiver
- Type:Â ISM
- MCU:Â ESP8285
- RFÂ Chip:Â SX1281
- Telemetry RF power: Max 100mw

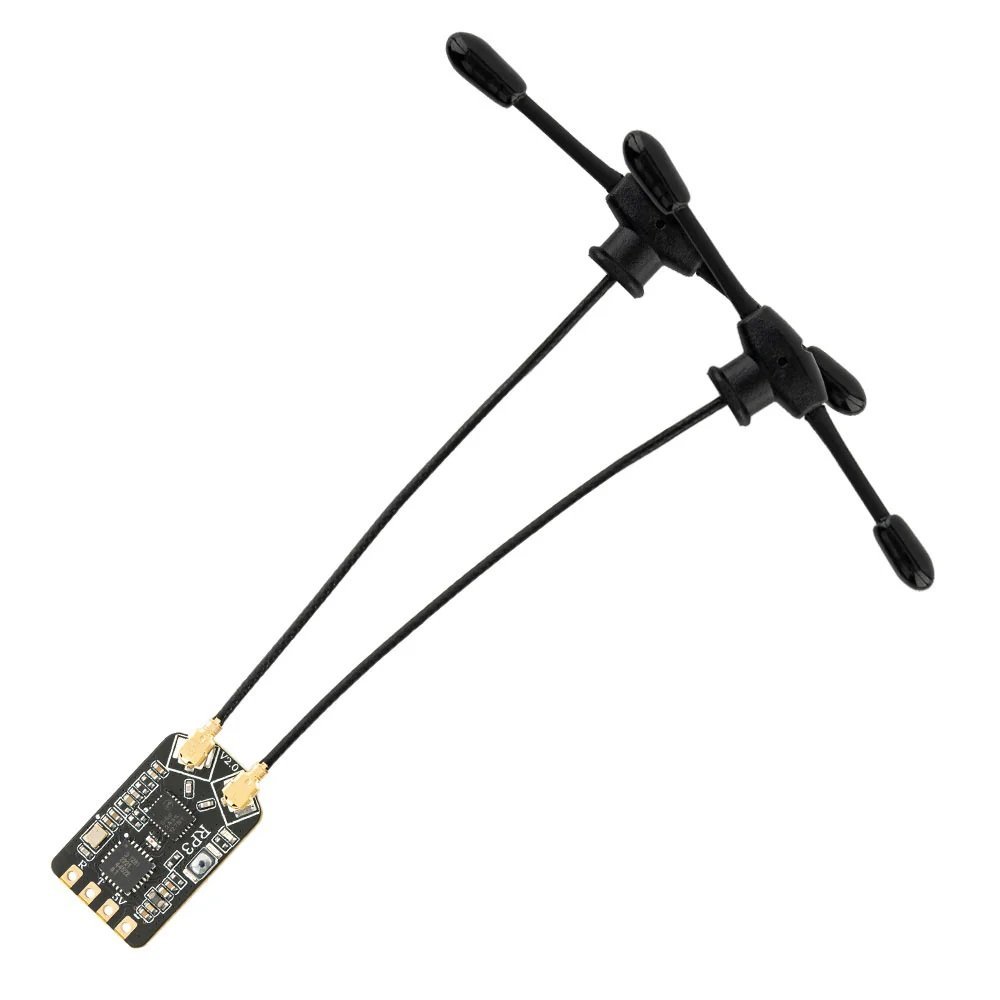

- Antenna: 65mm 2.4ghz T Antenna x 2
- Frequency Range: 2.404 - 2.479 Ghz
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: DC 5V
- Weight: 4.6g (Including two antenna)
- Dimension:Â 22mm*13mm*4mm
- Firmware Version: ExpressLRS v3.0 pre-installed
- FW Target: RadioMaster RP3 Diversity 2400 RX
- Bus interface: CRSF
