The RunCam Air Unit Phoenix HD kit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency within 28 ms. The air unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!

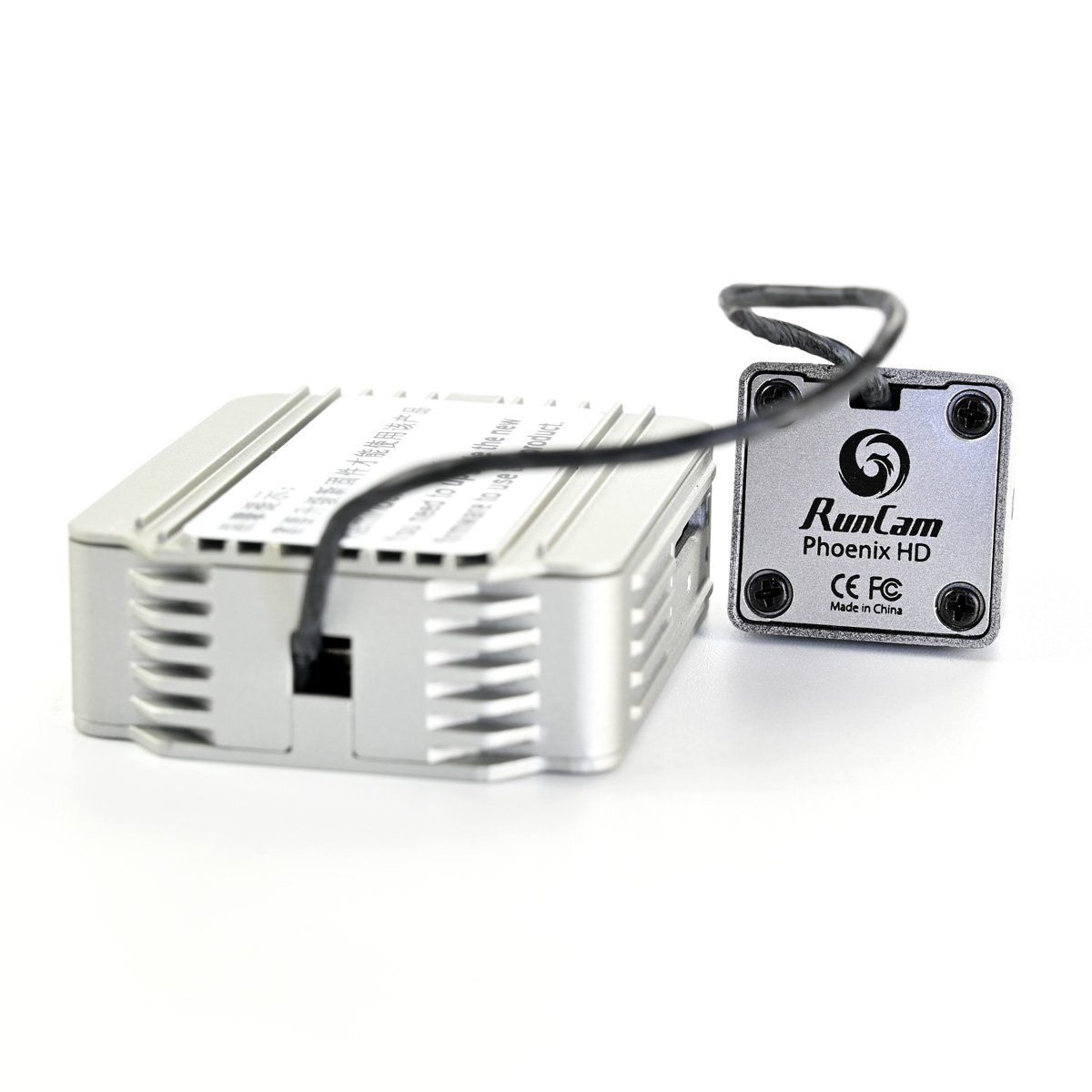

RunCam Air Unit Phoenix HD Kit
- Weight:

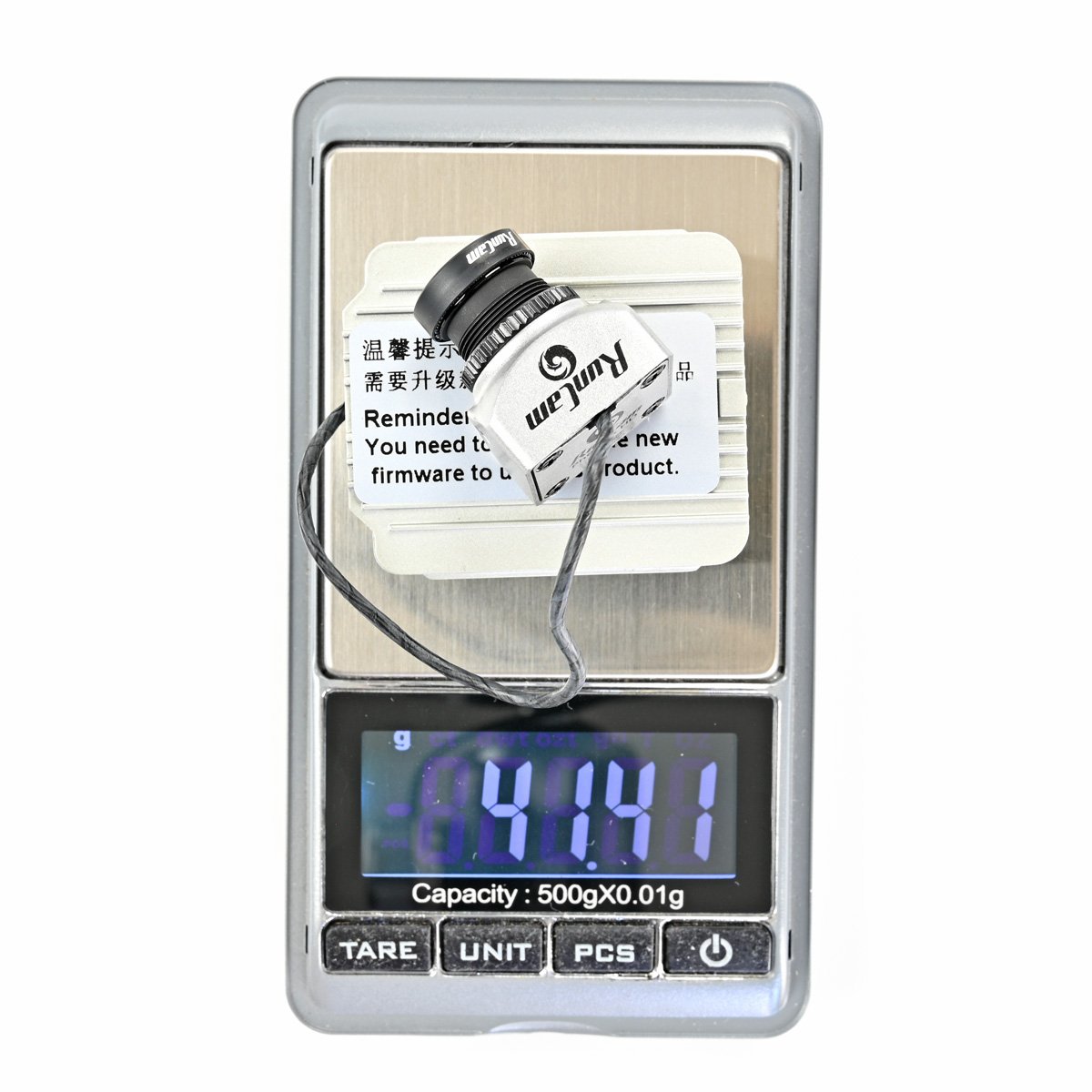

- Air Unit: 41.6g
- Antenna: 3.9g (MMCX Elbow)
- Operating Temperature: 32 to 104 F (0 to 40 C)Input Power: 7.4-17.6V
- Transmitter Power: FCC/SRRC: <30dBm CE: <14dBm
- I/O Interface: USB-C, MMCX, 3-in1 Port, MicroSD
- Output Power: 25mW3200mW/500mW/700mW
- Video Transmission: 28ms Low Latency
- Dimensions:
- Air Unit: 44mm x 37.8mm x 14.4mm
- Camera: 19mm x 19mm x 23.5mm
- Flight Control System: BetaFlight
- Max Transmission Range: 4km
- Coaxial Cable Length: 120mm
- FOV: 157(D); 133(H); 72(V)
- Goggle Compatibility: DJI
- Closed Loop 4-in-1: Yes
- Frequency Channels: 8
- Shutter: Rolling Shutter
- Sensor: 1/2"
- Effective Pixels: 4 M
- Image: 720p/60fps
- Video Format: MP4
- Video: 1080p/60fps
- Lens: 2.1mm, F/21
- ISO: 100-256000
