    RunCam Link Phoenix HD FPV Camera Kit

    RunCam Link Phoenix HD FPV Camera Kit

    $225.50

    Ask a Question


      Share

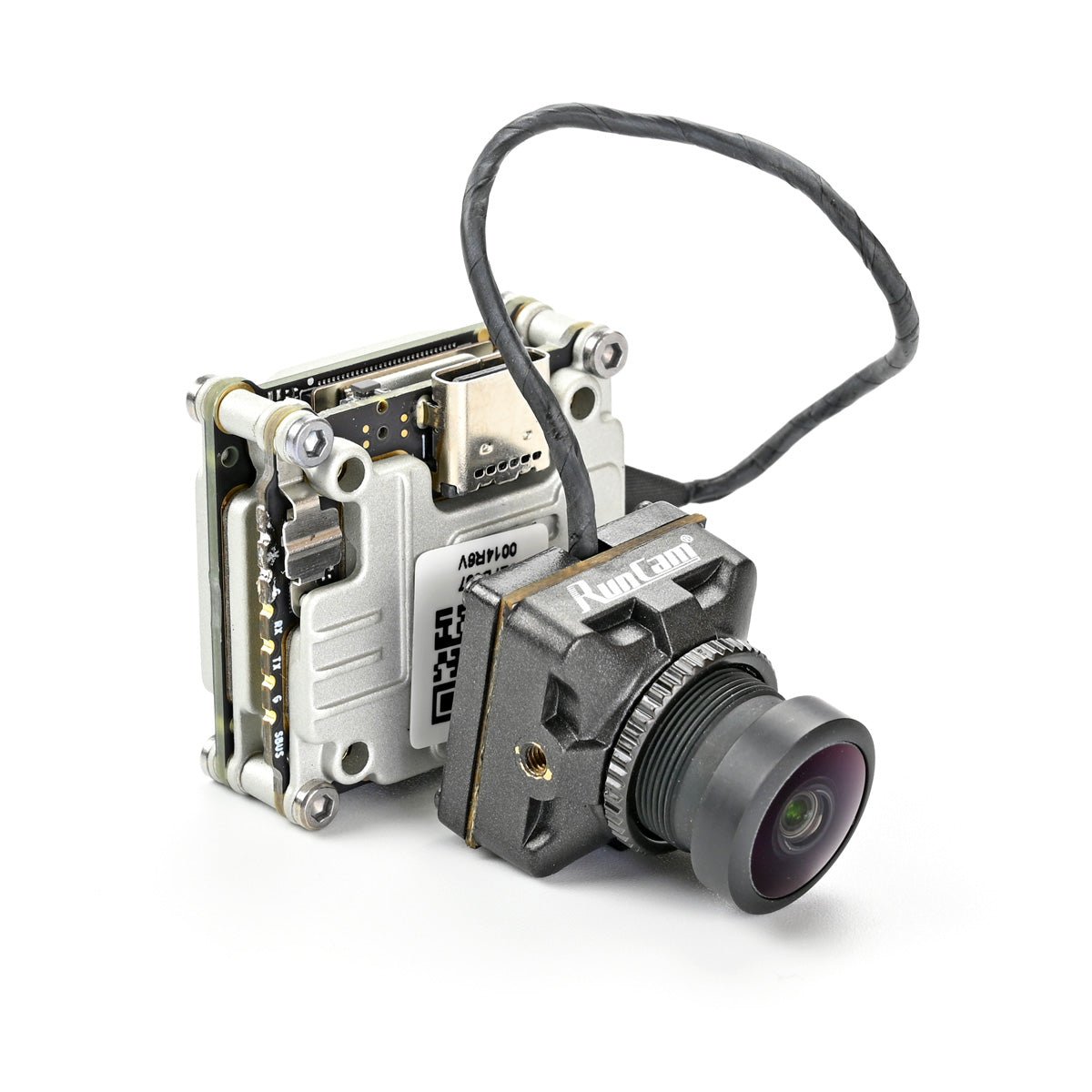

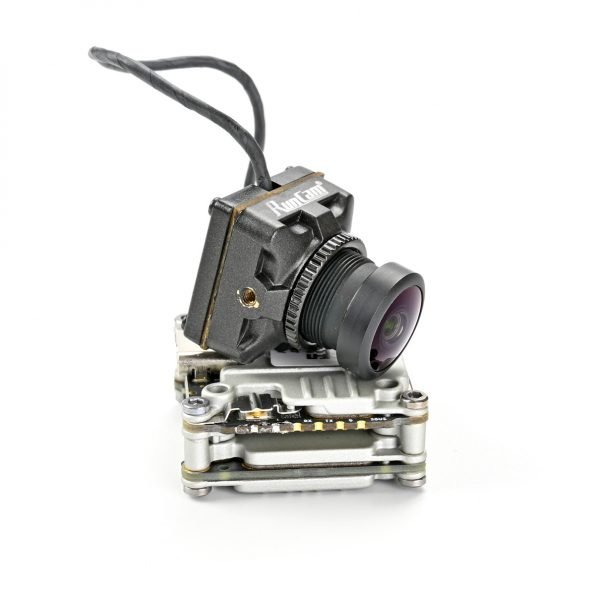

    The new HD system from Runcam combines a digital HD transceiver, the Link Digital Air Unit, and the RunCam Phoenix HD Camera. The RunCam Link provides you a 1280×720 60fps video feed to see clearly and boasts great low-light performance thanks to its 1/2″ high-sensitivity sensor.

    About RunCam Link Digital FPV Air Unit

    The RunCam Link Digital FPV Air Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 1280 x 720 60fps image transmission, with a transmission range of up to 4 km and a minimum end-to-end latency within 32 ms*. The air unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly.

    About RunCam Phoenix HD Camera

    The RunCam Phoenix HD Camera provides a 1280×720 60fps resolution and uses a 1/2″, up to 10650 mv/lux-sec ultra-high sensitivity sensor – making this camera excellent for night vision.

    Suitable for freestyle flying, the RunCam Phoenix HD Camera comes with a 120cm coaxial cable so you can pair it up with the Link Air Unit!

    RunCam Link Phoenix HD Kit
    • Weight:

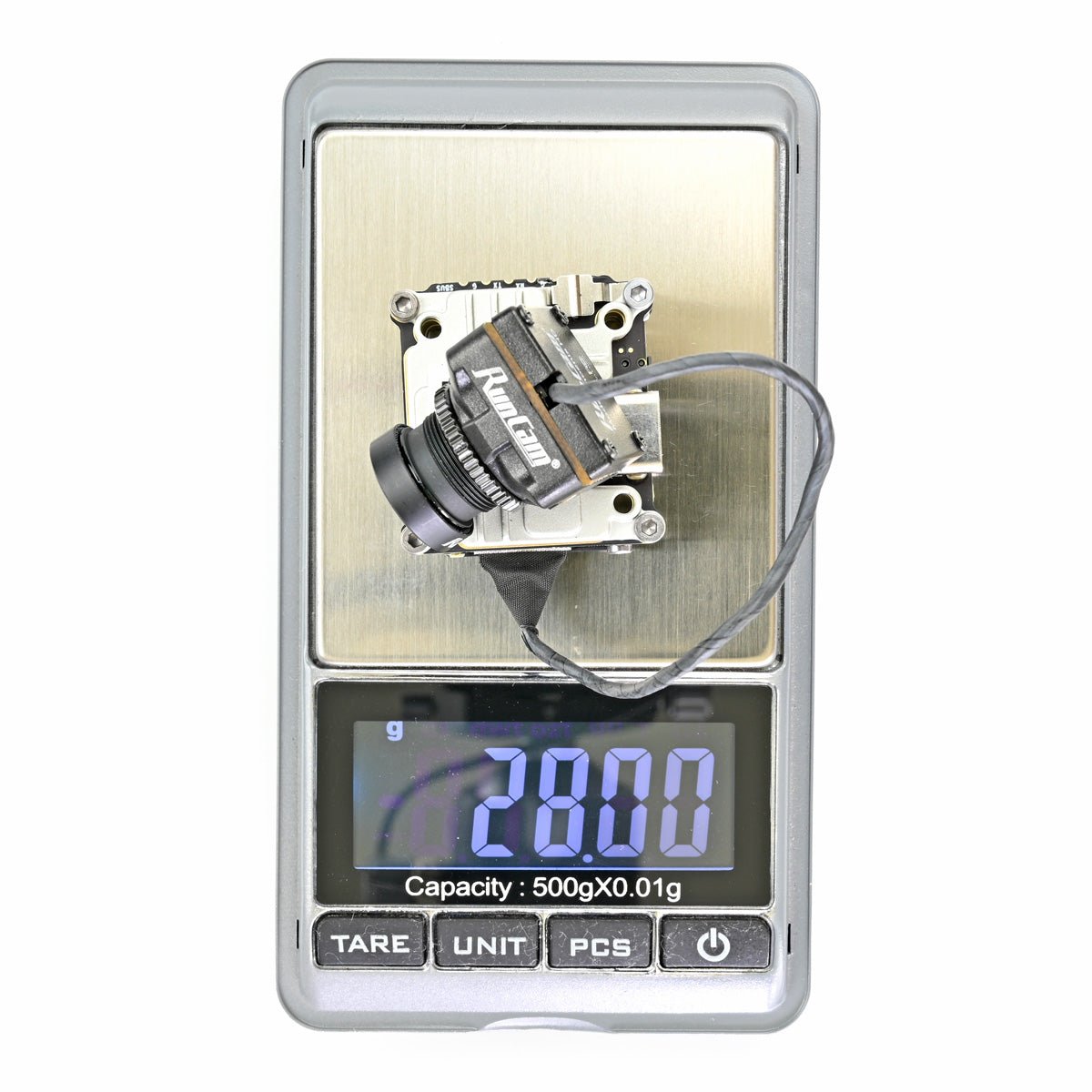

      • Air Unit (camera included): 27g
      • Air Unit (Alone): 19.5g
    • Dimensions:
      • Air Unit: 29 x 29 x 13mm
      • Camera: 19 x 19 x 23.5mm
      • Coaxial Cable: 120mm
    • Operating Frequency: 5.725 - 5.850GHz
    • Transmitter Power(EIRP):
      • FCC/SRRC/MIC: < 30dBm
      • CE: < 14dBm
    • Min. Latency (end-to-end): 1280 X 720p 60fps: < 32ms
    • Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
    • I/O Interface: USB-C,IPEX,3-in-1 Port
    • Supported Flight Control System: BetaFlight
    • Operating Temperature Range: 32° to 104° F (0℃ ~ 40℃)
    • Input Power: 7.4 - 26.4V
    RunCam Phoenix HDCamera
    • Image Sensor: 1/2”
    • Resolution: 1280 * 720 @60fps
    • LENS: FOV D:157° H:133° V:72°
    • Shutter: Rolling Shutter
    • Coaxial Cable: 120 mm
    • Dimensions: L19mm * W19mm * H23.5mm
    • Weight: 7.5g
    Includes
    • 1 x Link Air Unit + Phoenix HD Camera
    • 1 x APEX Antenna
    • 1 x JST SH 1.0 6pin Cable
