    iFlight Titan DC5 HD 5" Freestyle Frame

    iFlight Titan DC5 V1.4 HD 5" Freestyle Frame


    Ask a Question

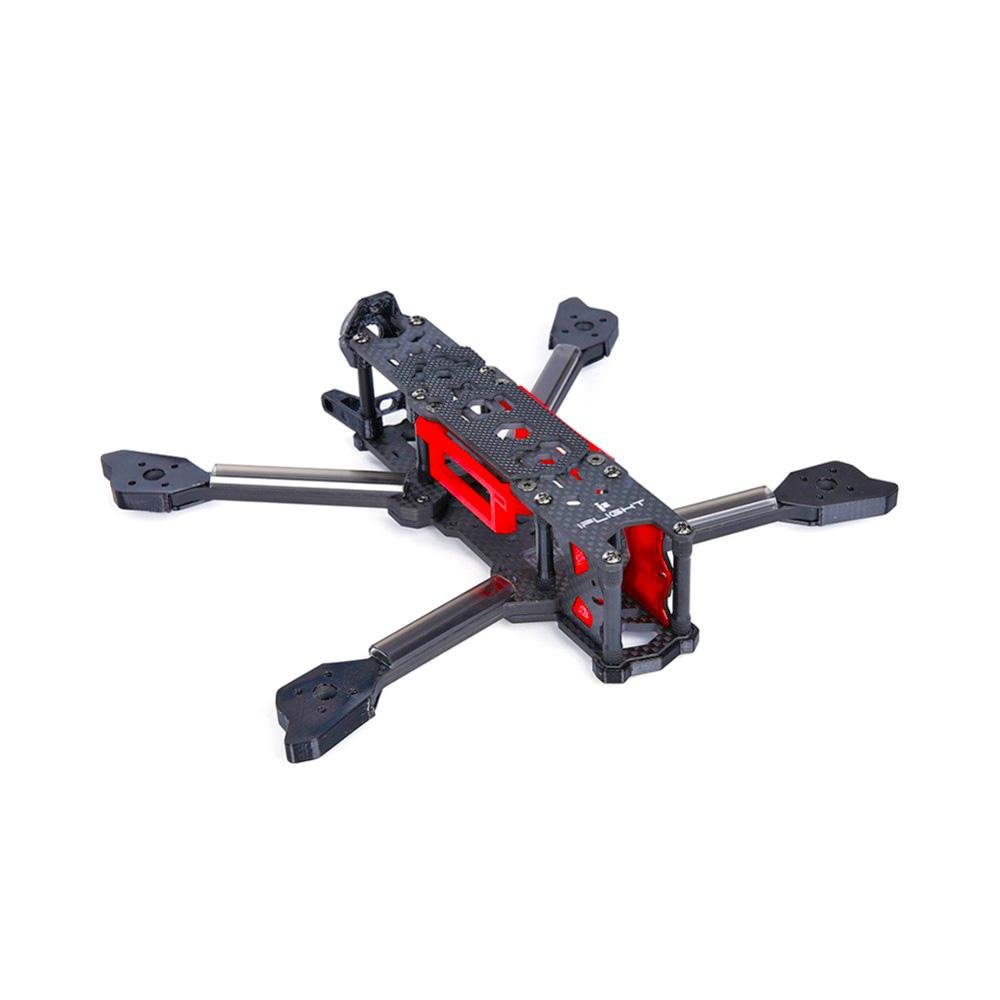

    The TITAN DC5 HD Frame is suitable for the new DJI Digital FPV System. This frame includes boomerang arms, which makes flying FPV truly breathtaking!


    • Popular Deadcat style configuration, No prop in View
    • Optimized weight distribution: DJI unit and Stack centered
    • Fits both 30.5x and 20x stacks

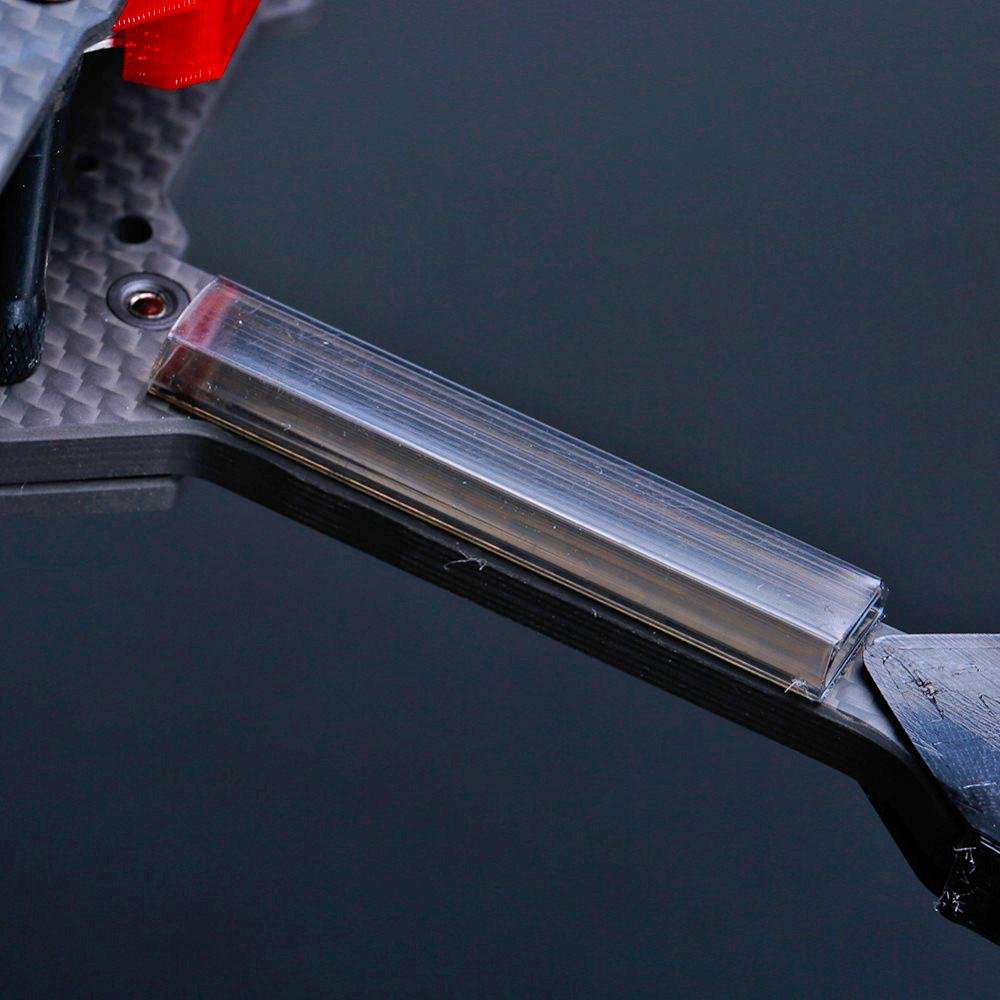

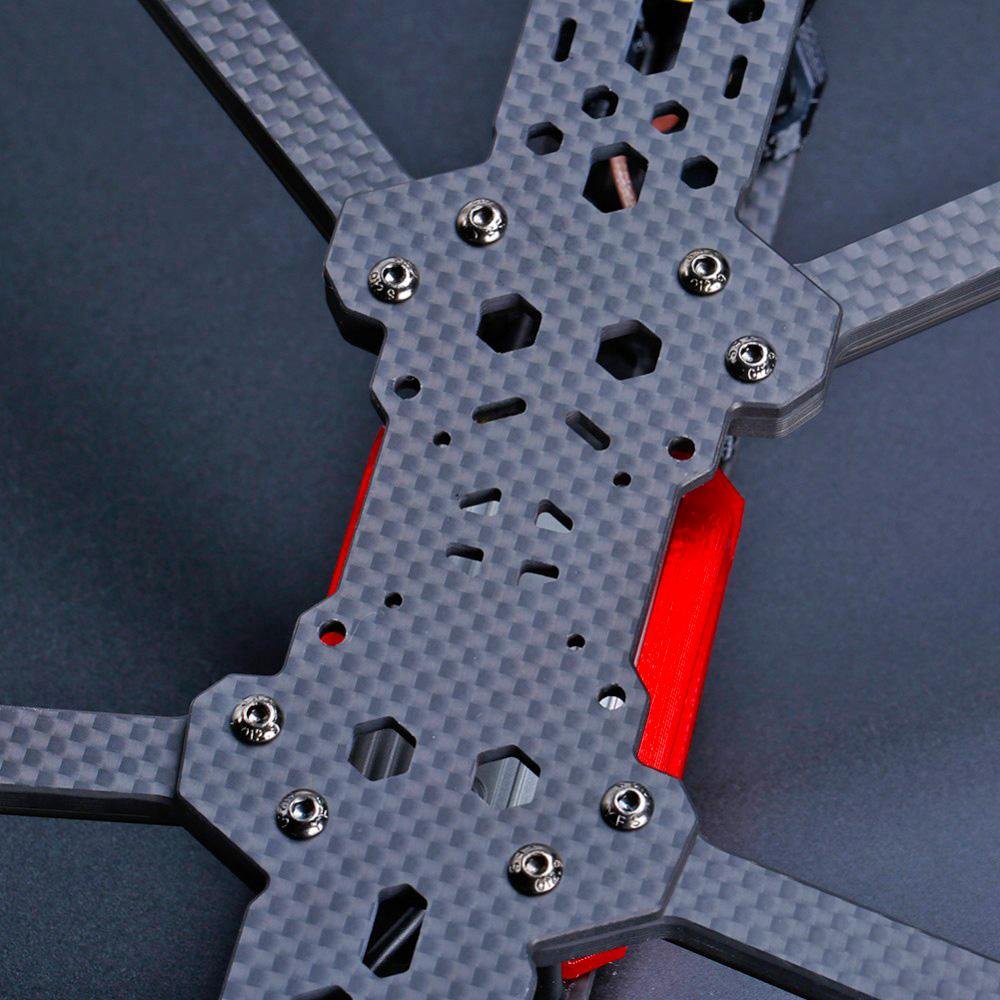

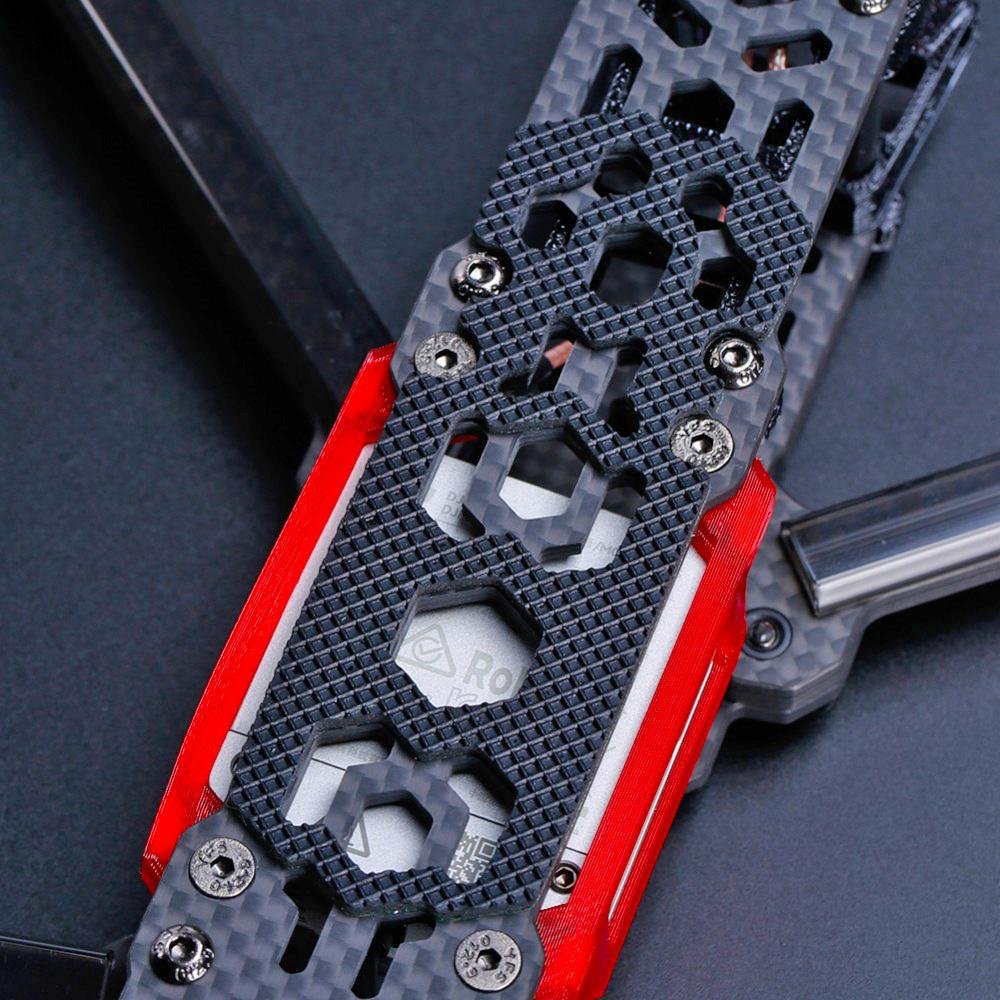

    • Full 3K Carbon Fiber airframe with chamfered arm
    • 222mm wheelbase, weight: 116g dry weight without TPU parts

    ((!)) NOTE: frame with TPU parts only, the DJI air unit, antenna, propellers, motors, flight stacks are NOT included.

    • Weight: 150.4 (with TPU parts, and battery anti-slip pads)
    • Wheelbase: 222mm
    • Main body dimension: 185*133mm
    • Bottom to top distance: 35mm
    • Arm thickness: 6mm
    • Bottom plate thickness: 3mm
    • Top plate thickness: 2.5mm
    • Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)
    • Mounting Holes: 30.5*30.5mm

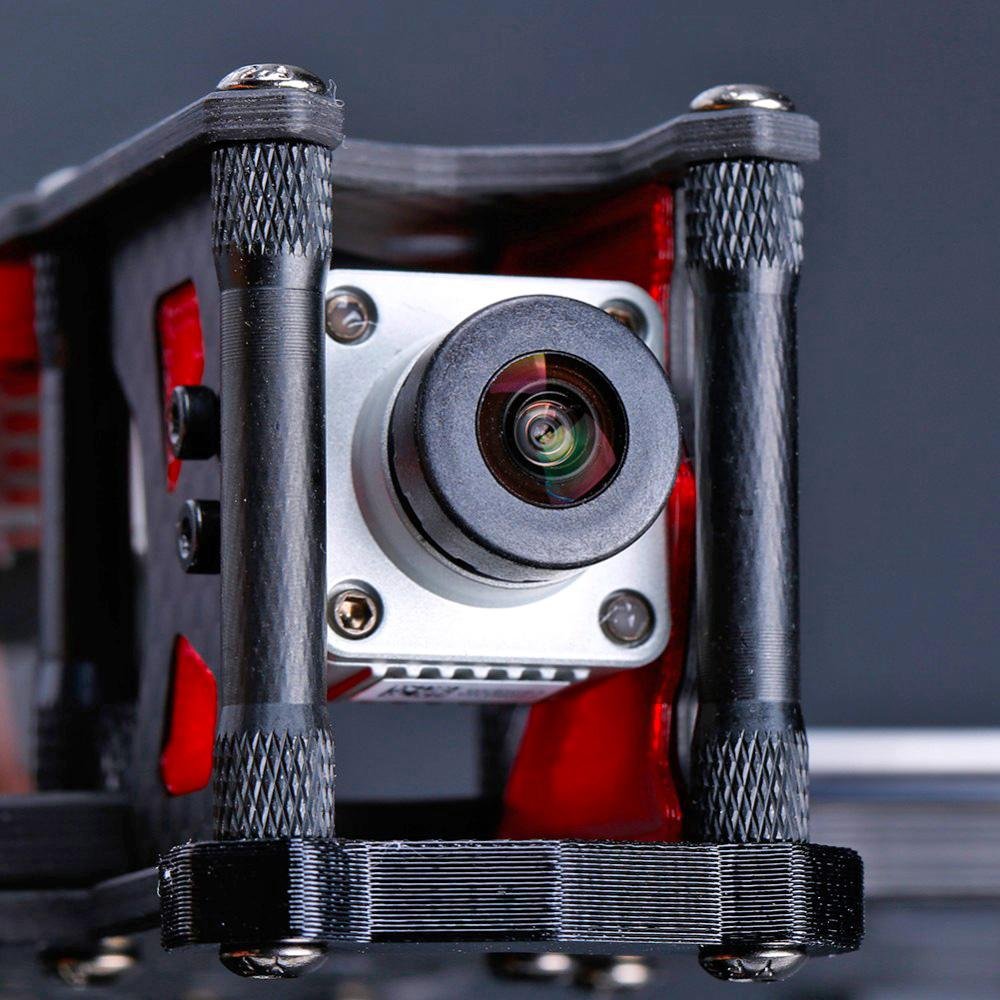

    • Support camera size: 19*19mm 22*22mm
    • Recommended motors: 22xx, 23xx

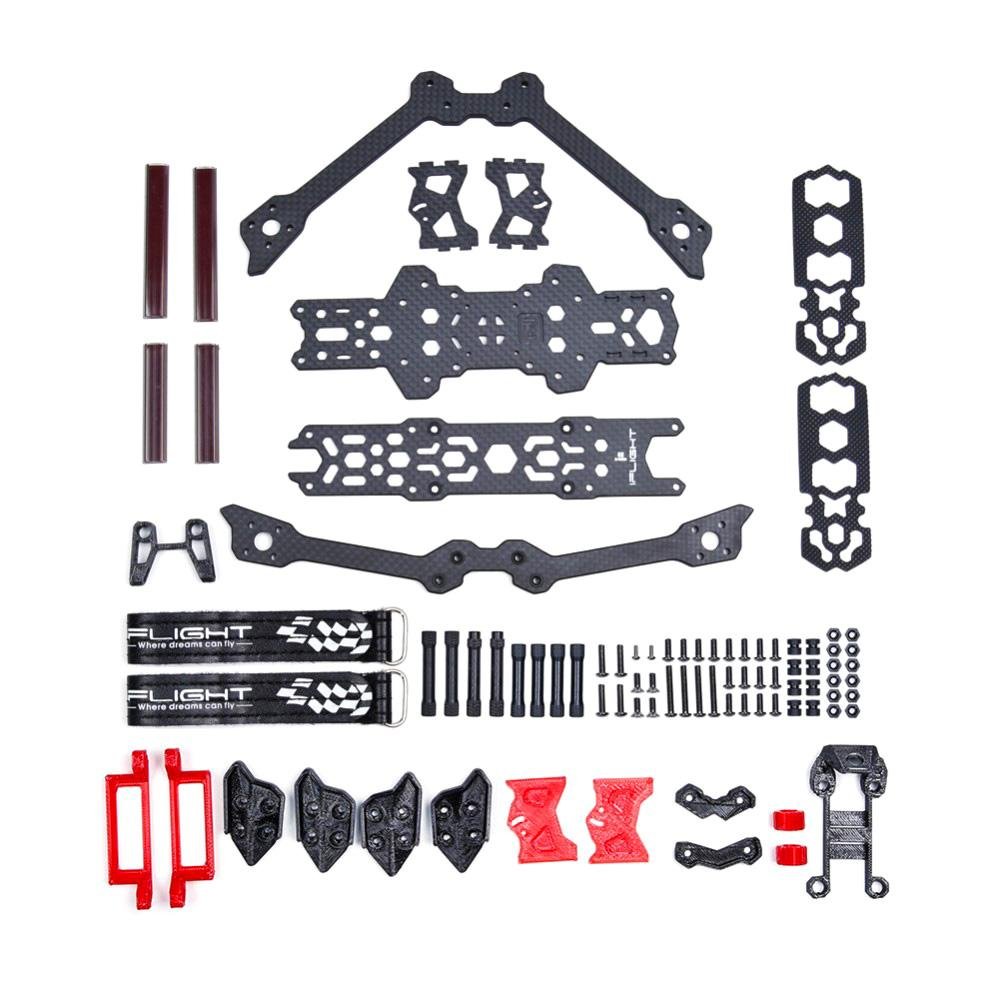

    • 1 x TITAN DC5 V1.4 HD Frame
    • 1 x Screw Bag
    • 1 x TPU Camera mount adapters

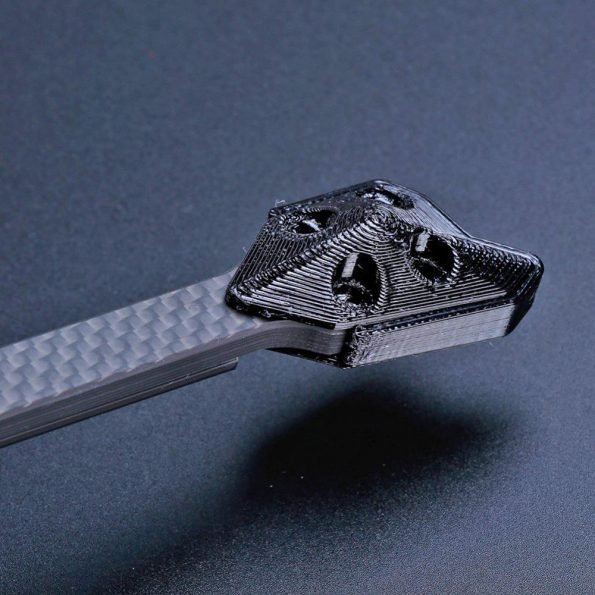

    • 4 x Arm guard/Motor mount
    • 1 x TPU DJI Air Unit Bracket Mount
    • 1 x TPU DJI Air Unit Antenna Mount
    • 1 x TPU bottom plate front protective mount
    • 1 x TPU bottom plate rear protective mount
    • 1 x Battery Anti-slip Mat
    • 2 x Battery Straps
