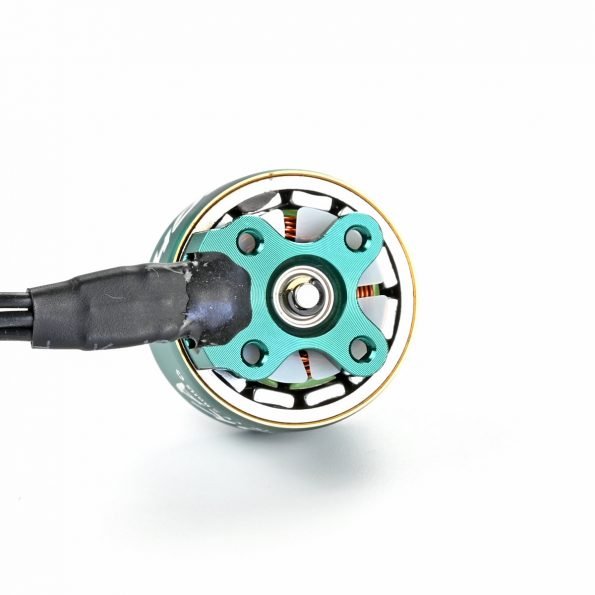

    Diatone Mamba Toka 1408 - 4100KV Motor

    Diatone Mamba Toka 1408 - 4100KV Motor

    $25.50

    Ask a Question


      Share

    The Mamba Toka 1408 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3″-4″ builds! Choose between two KVs to best fit your FPV needs: 2900KV or 4100KV.

    MAMBA TOKA 1408 4100KV Racing Motor
    • Overall Dimension: Φ20.6×18.5mm
    • prop mounting shaft diameter: 1.5mm
    • Installation hole position: 12×12mm, M2
    • Prop: 3inch ~ 4inch
    • Bearing: 5*2*2.5
    • Shaft Diameter: 2.0mm
    • Lead Wire Size: 24AWG × 150mm
    • Configuration: 9N12P
    • Magnet Wire: Class H, 240℃ Enameled Wire
    • Stator Diamter: 14mm
    • Stator Height: 8mm
    • Rated Voltage: 3S ~ 4S (12.6V ~ 16.8V)
    • Peak Current: 19.5A
    • ldle Current: 10V/0.8A ~ 1.5A
    • Maximum Power: 376.3W
    • Internal Resistance: 85Ω
