    Diatone Mamba Toka 1206 - 4500KV Motor

    Diatone Mamba Toka 1206 - 4500KV Motor


    Ask a Question


    The Mamba Toka 1206 Motor is a new series of motors by Diatone that is best suited for CineWhoops, or any 3″-4″ builds! Choose within these three KVs to best fit your FPV needs: 3600KV, 4500KV and 7500KV.

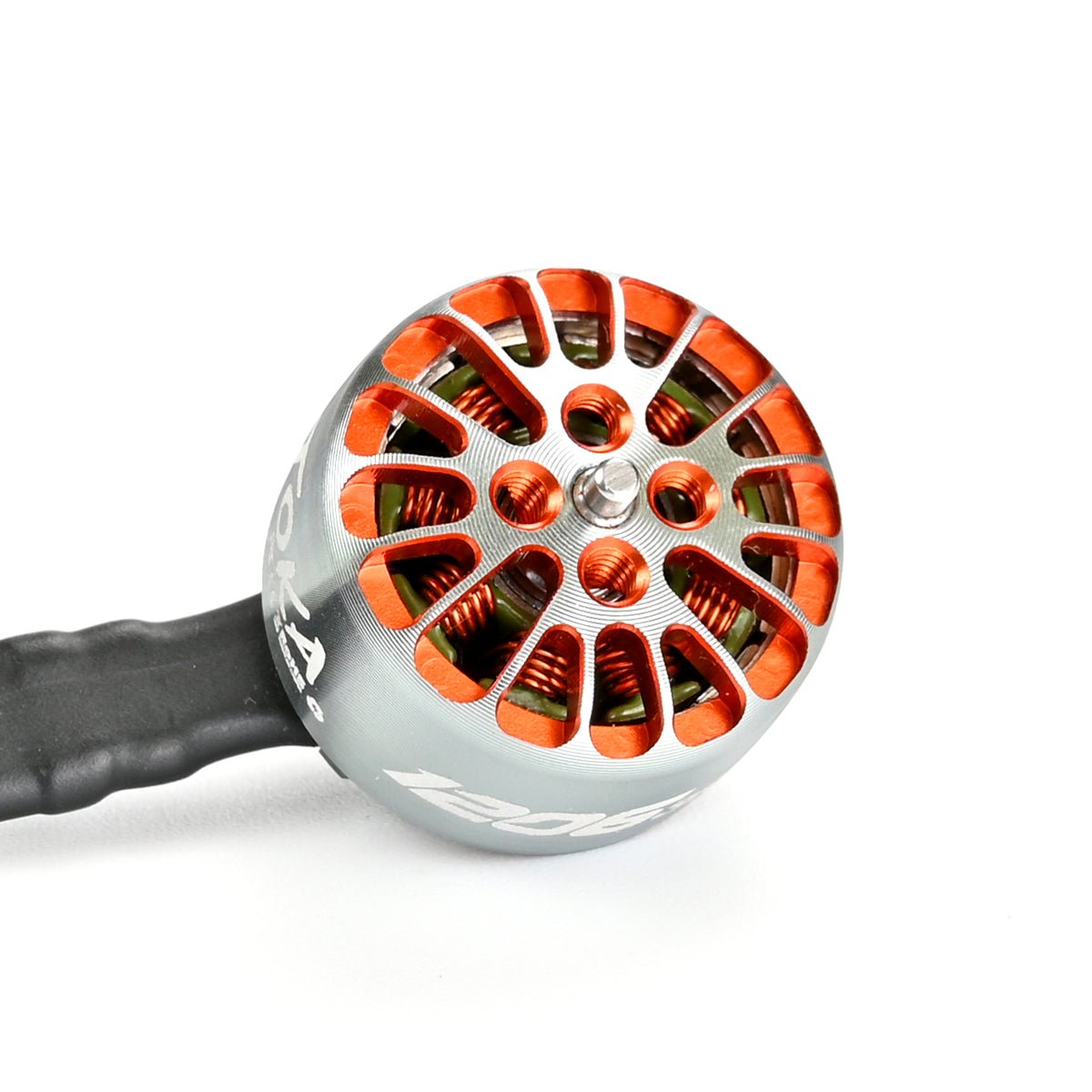

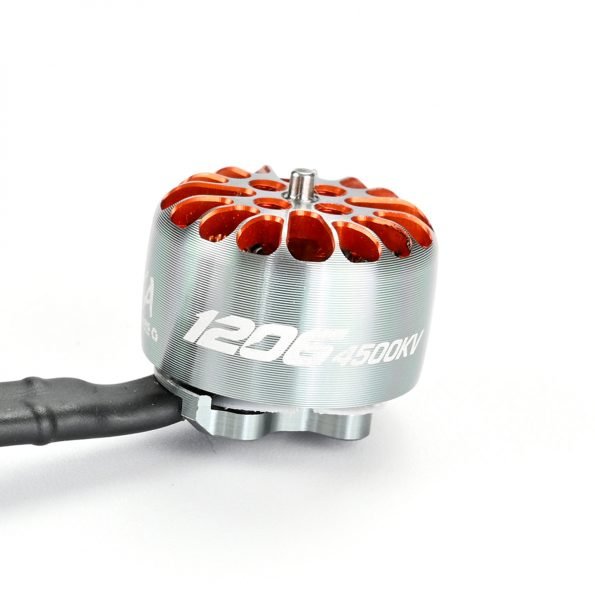

    MAMBA TOKA 1206 4500KV Racing motor
    • Overall Dimension: Φ17×13.4mm
    • prop mounting shaft diameter: 1.5mm
    • Installation hole position: 9×9mm, M2
    • Prop: 2inch ~ 3inch
    • Bearing: 5*2*2.5
    • Shaft Diameter: 2mm
    • Lead Wire Size: 24AWG × 150mm
    • Configuration: 9N12P
    • Magnet Wire: 240℃ Enameled Wire
    • Stator Diamter: 12mm
    • Stator Height: 6mm
    • Rated Voltage: 3~4S (12.6V ~ 16.8V)
    • Peak Current: 10.7A
    • ldle Current: 6V/0.6A
    • Maximum Power: 128W
    • Internal Resistance: 168Ω
