Diatone Mamba Toka 1206 – 4500KV Motor
AVAILABILITY: Out Of Stock
$19.40
Brand: Diatone
Out of stock
-  Delivery & Return
Domestic Shipping
- Estimate Domestic delivery options can be calculated at the Shopping Cart.
 - Home delivery orders are delivered on weekdays by Australia Post.
 - 4 - 7 business days for delivery to metro locations.
 - 7 - 10 business days to regional locations including WA, QLD and NT.
 - This delivery time frame is subject to changes in circumstances.
 - All orders dispatched within 2 to 3 business days.
 - See the Delivery Policy for details on shipping methods, costs and delivery times.

International Shipping
- Estimate International delivery options can be calculated at the Shopping Cart.
 - International Orders will be shipped via Australia Post.
 - Any customs or import duties and associate fees may impose on your destination country.

Returns And Exchanges
- Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
 - 7 days return policy for all unopened items.
 - See conditions and procedure in our Returns Policy.

 - Ask a Question

The Mamba Toka 1206 Motor is a new series of motors by Diatone that is best suited for CineWhoops, or any 3″-4″ builds! Choose within these three KVs to best fit your FPV needs: 3600KV, 4500KV and 7500KV.

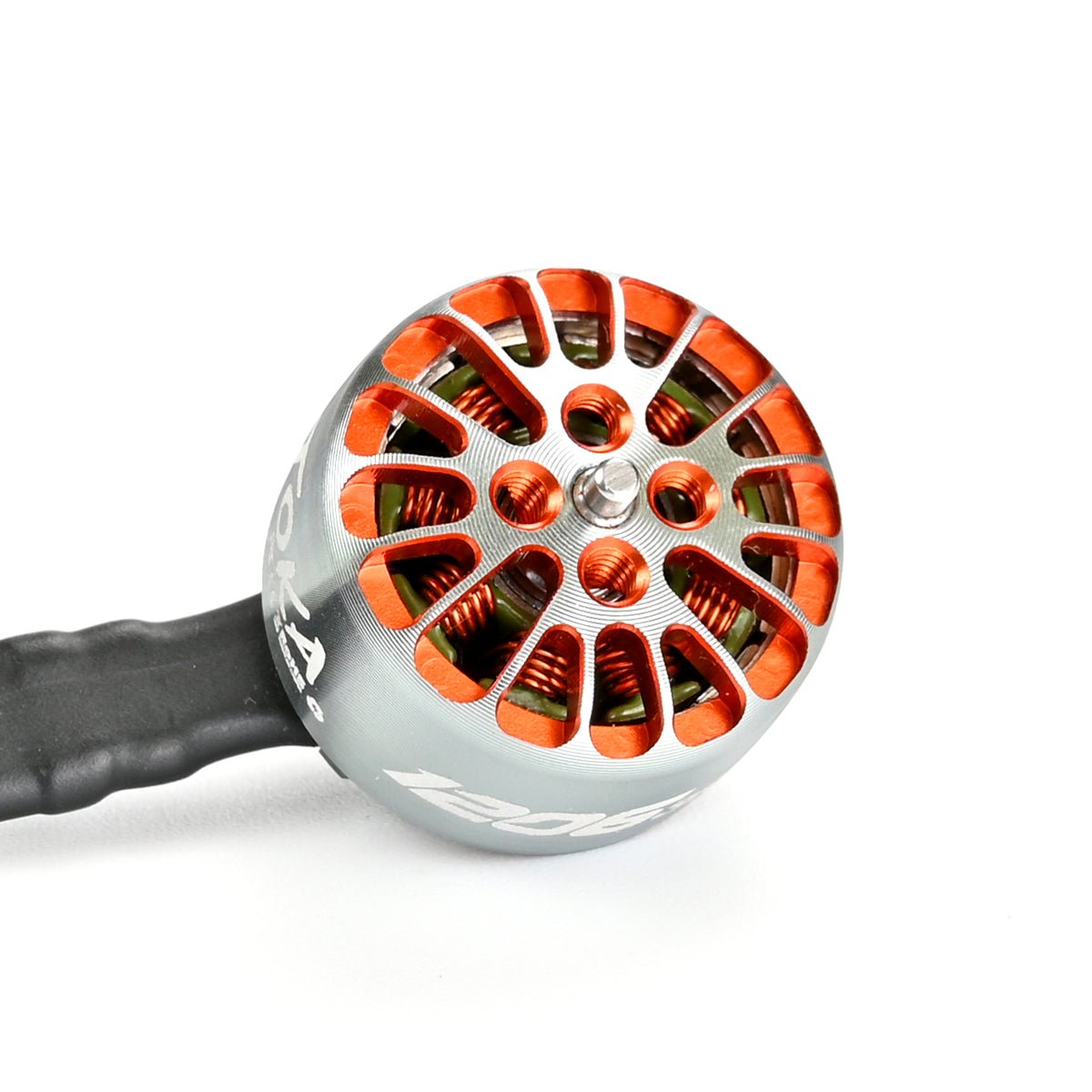

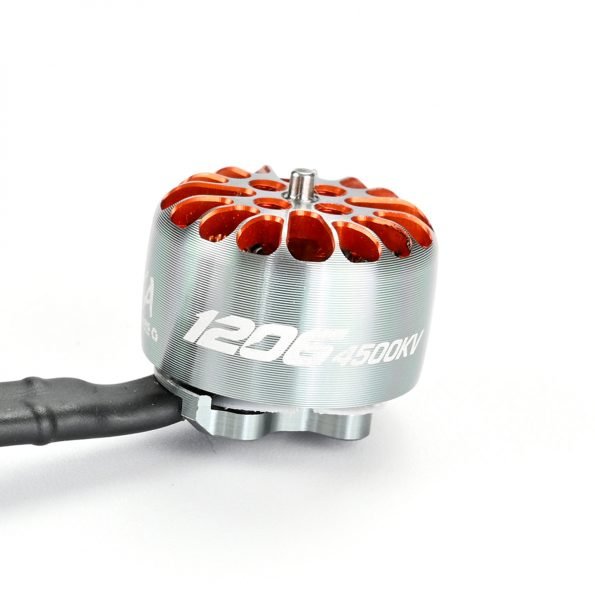

MAMBA TOKA 1206 4500KV Racing motor
- Overall Dimension: Φ17×13.4mm
 - prop mounting shaft diameter: 1.5mm
 - Installation hole position: 9×9mm, M2
 - Prop: 2inch ~ 3inch
 - Bearing: 5*2*2.5
 - Shaft Diameter: 2mm
 - Lead Wire Size: 24AWG × 150mm
 - Configuration: 9N12P
 - Magnet Wire: 240℃ Enameled Wire
 - Stator Diamter: 12mm
 - Stator Height: 6mm
 - Rated Voltage: 3~4S (12.6V ~ 16.8V)
 - Peak Current: 10.7A
 - ldle Current: 6V/0.6A
 - Maximum Power: 128W
 - Internal Resistance: 168Ω
