The SpeedyBee F7 Mini Flight Controller has come to change the way you deal with electronics. Flash, update, configure, all without having to plug into any computer. With the SpeedyBee app, you can change almost any parameter wirelessly!

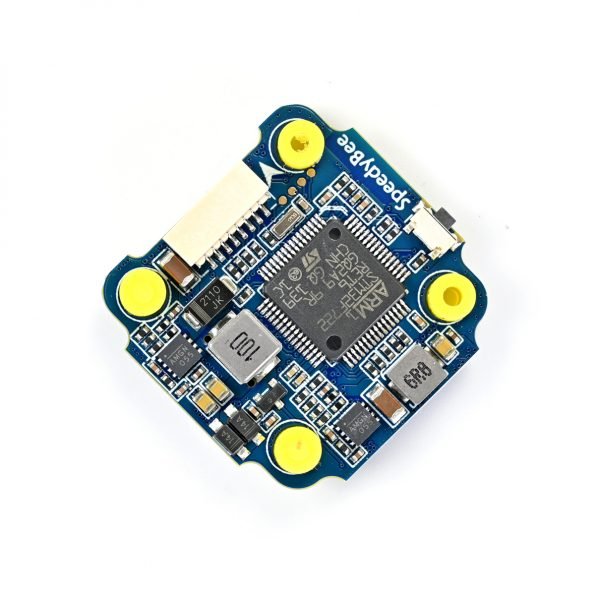

SpeedyBee F7 Mini FC
- MCU: STM32F722
- IMU(Gyro): BMI270
- USB Port Type: Type-C
- Barometer: N/A
- OSD Chip: AT7456E Chip
- BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART 6)
- Flash FC Firmware Wirelessly: Not supported. Please update firmware for this FC on the PC
- Download/Analyze Blackbox: Not supported. Please download and analyze Blackbox data on the PC
- DJI Air Unit Soldering Pads: Supported
- Flash (for BlackBox): 8MB
- Current Sensor: Supported, Scale=250 Offset=-500
- BetaFlight Camera Control Pad: Yes (CC pad)
- Power Input: 3S - 6S Lipo
- 5V Output: 6 groups of 5V output, five +5V pads and 1 BZ+ pad ( used for Buzzer). The total current load is 2.5A.
- 9V Output: 2 groups of 9V output, the total current load is 2A.
- 3.3V Output: Supported. Up to 500mA current load.
- ESC Signal Pads: M1 - M4
- UART: Full UART * 3 (UART1, UART2, UART3)
- ESC Telemetry UART: R4 (UART4)
- I2C: Not supported
- LED Pad: Used for WS2812 LED
- Buzzer: BZ+ and BZ- pad used for 5V Buzzer
- BOOT Button: Used to enter DFU mode
- RSSI Input: Not supported
- SmartPort: Use any TX pad of UART for the SmartPort feature.
- Supported Flight Controller Firmware: BetaFlight (Default), EMUFlight, INAV
- Firmware Target Name: SPEEDYBEEF7MINIV2 for current batches (Gyro: BMI270).
- Mounting: 20 x 20mm, 3.5mm hole diameter
- Dimension: 30 x 30 x 7.5mm
- Weight: 5.7g
- 1 x F7 Mini Flight Controller
- 1 x Manual and App Download Card
- 1 x 8pin JST Cable
- 5 x M2 Grommets
- 5 x M3 Grommets
