The F405 Wing APP Flight Controller is SpeedyBee’s first flight controller specifically designed for fixed-wing applications. It is built on the STM32 F405 chipset with 168MHz and 1MB of storage. This versatile flight controller works with both iNav and Ardupilot, making it suitable for a variety of fixed-wing models.
The F405 Wing FC has several unique features, including a built-in battery voltage checker with LEDs, four separate LED ports with an inbuilt LED driver, and built-in Wi-Fi and Bluetooth connectivity. The Wi-Fi and Bluetooth features allow you to connect the flight controller to your phone or computer wirelessly, making it easier to make crucial firmware changes while out in the field.

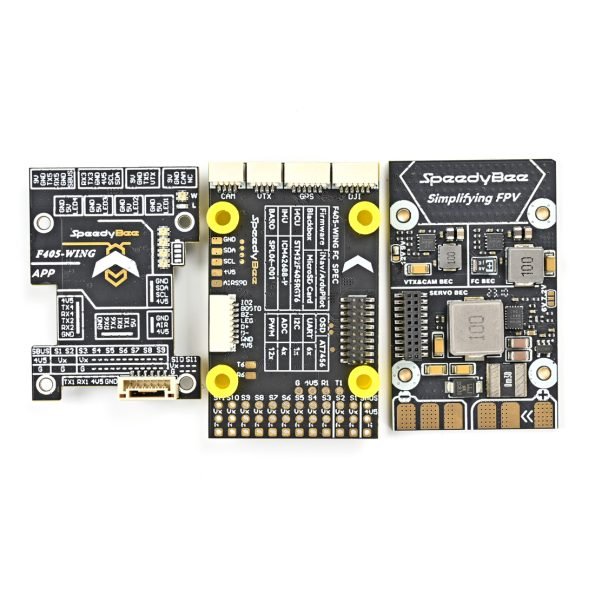

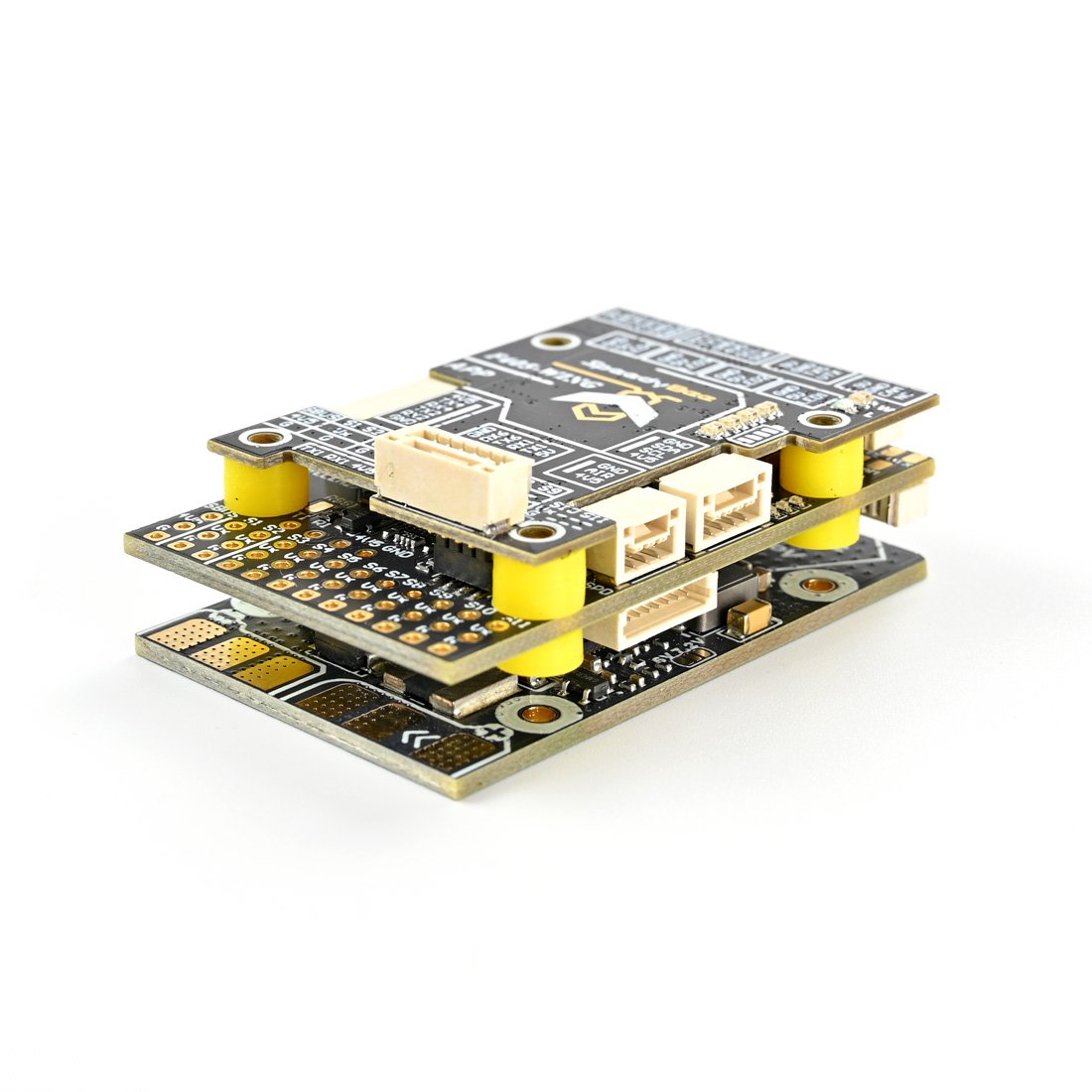

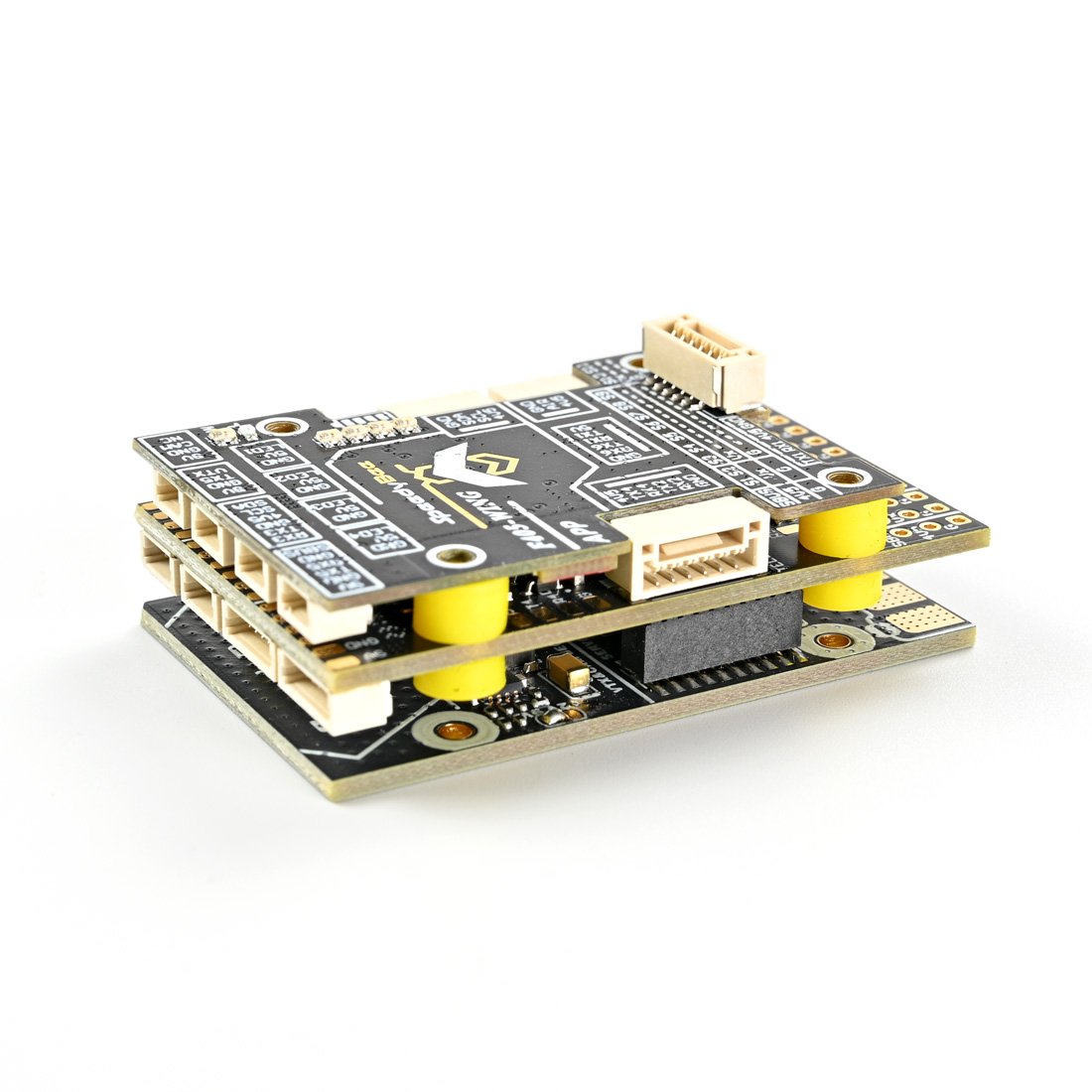

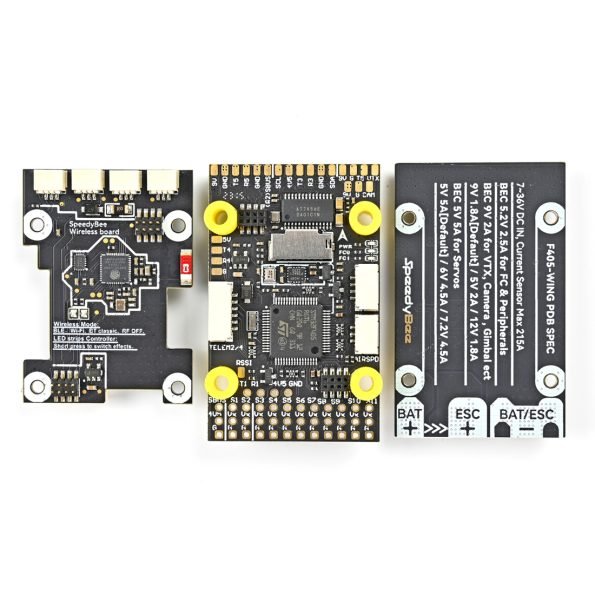

The SpeedyBee F405 Wing flight controller consists of separate boards, including:
- TOP Board: SpeedyBee F405 WING Wireless Board
- Middle Board: SpeedyBee F405 WING FC Board
- Bottom Board: SpeedyBee F405 WING PDB Board
- Additional Board: SpeedyBee F405 WING USB extender
| Product Name | SpeedyBee F405 WING FC board |
| MCU | STM32F405,168MHz,1MB Flash |
| IMU(Gyro&Accelerometer) | ICM-42688-P |
| Barometer | SPL006-001 |
| OSD Chip | AT7456E |
| Blackbox | MicroSD Card Slot |
| UART | 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection)) |
| I2C | 1x Used for magnetometer, digital airspeed sensor |
| ADC | 4x (VBAT, Current, RSSI, Analog AirSpeed) |
| PWM | 12x (11+1“LED”pad) |
| ELRS/CRSF receiver | Supported,connected to UART1 |
| SBUS | Built in inverter for SBUS input (UART2-RX) |
| LED | 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB |
| RSSI | Supported,Named as RS . |
| Supported FC Firmware | INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING |
| Weight | 8.9g |
| Product Name | SpeedyBee F405 WING PDB board |
| Input voltage range | 7~36V (2~6S LiPo) |
| Battery Voltage Sensor | Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot) |
| Battery Current Sensor | 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot) |
| TVS Protective diode | Yes |
| FC BEC output | Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip |
| VTX BEC output | Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera. |
| Servo BEC output | Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos. |
| Weight | 11.4g |
| Product Name | SpeedyBee F405 WING Wireless board |
| Wireless Configuration (long press BOOT button for 6 seconds to switch modes) | BLE mode, connect to Speedybee APP |
| Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc. | |
| Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner | |
| LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) | 4x WS2812 LED strip connectors, adjustable colors and flashing modes |
| Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads | |
| On-board battery level indicator | 4x RGB indicator LED for battery level display by number of lights |
| Weight | 4.2g |
