The SpeedyBee BL32 50A ESC features 50A output for real performance with your toughest 6S motors and is equipped with a protective CNC heat sink for overheat protection. The ESC is built with TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. Supports up to 128KHz PWM frequency, and solder-free connectivity.

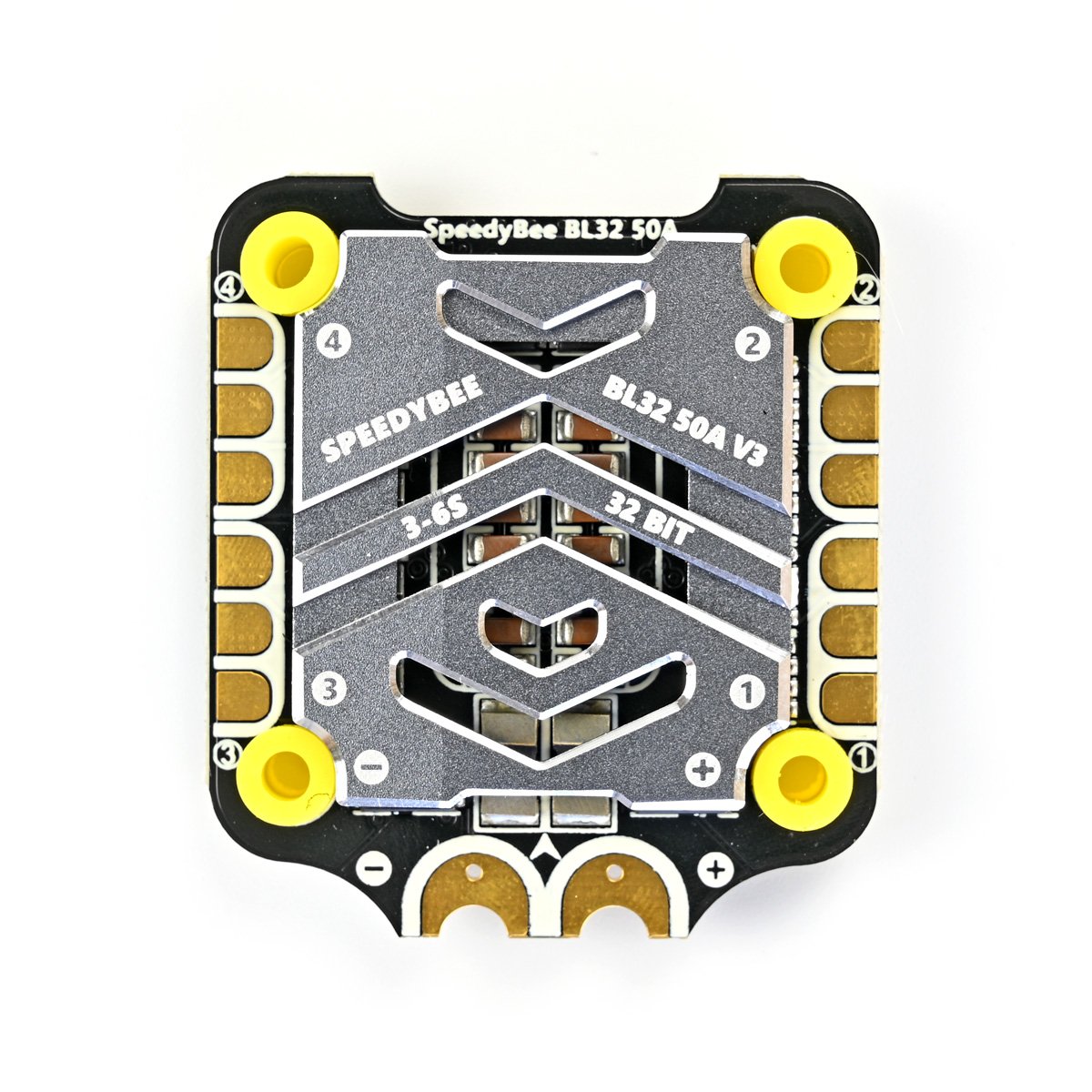

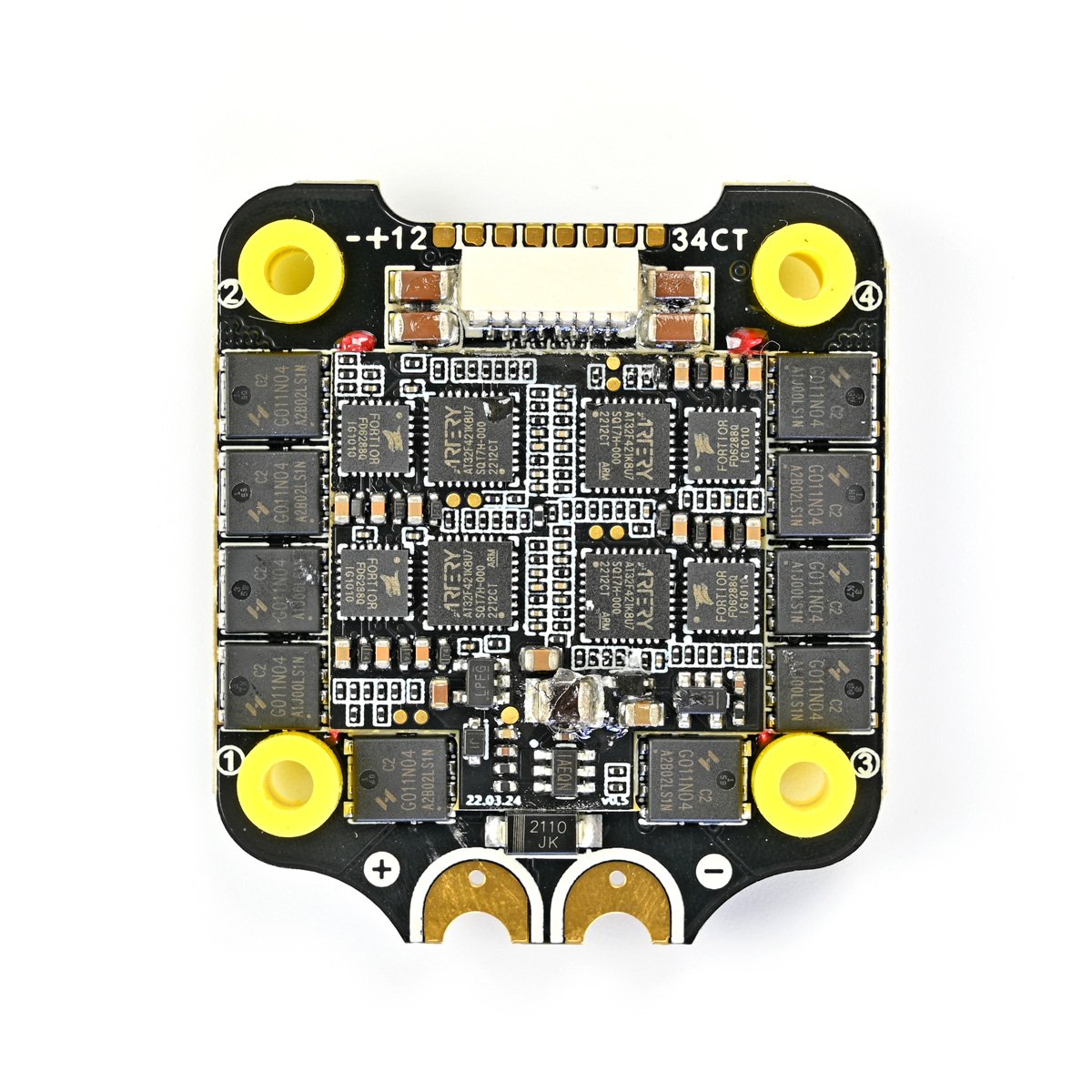

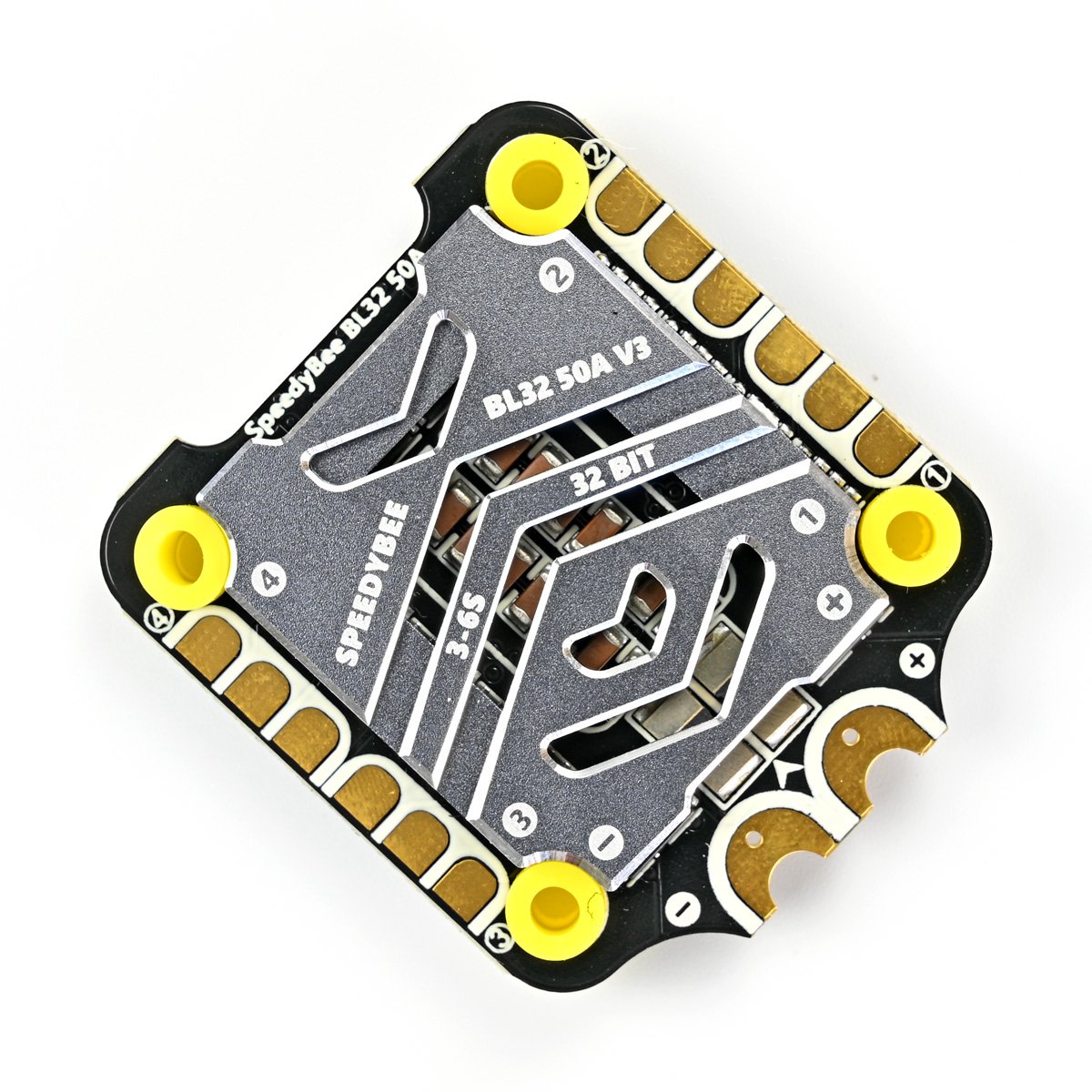

SpeedyBee BL32 50A ESC
- Firmware: SpeedyBee BL32 50A
- Configurator Download Link: http://github.com/bitdump/BLHeli/releases
- Continuous Current: 50A * 4
- Burst Current: 55A (5S)
- TVS Protective Diode: Yes
- Heat Sink: Yes
- External Capacitor: 1500uF Low ESR Capacitor (In the package)
- ESC Protocol: DSHOT300/600
- Power Input: 3-6S LiPo
- Power Output: VBAT
- Current Sensor: Support (Scale=490 Offset=0)
- Mounting: 30.5 x 30.5mm ( 4mm hole diameter)
- Dimension: 45.6(L) * 40(W) * 8.8mm(H)

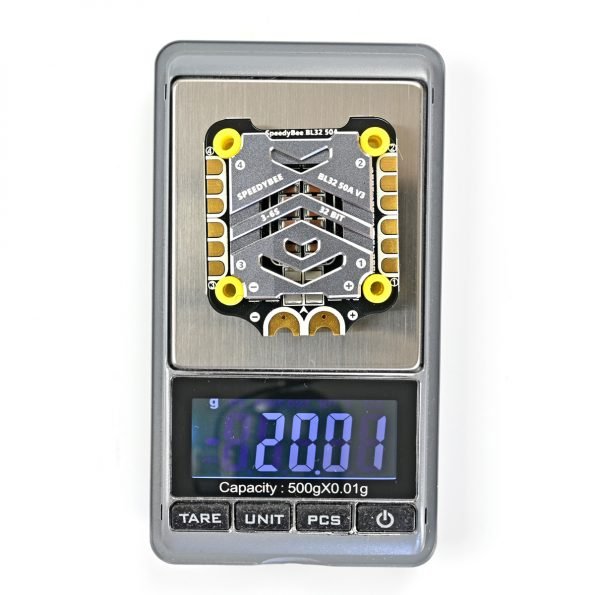

- Weight: 19.2g with heat sink
- 1 x SpeedyBee 50A BLHeli_32 ESC
- 1 x 35V 1500uF Low ESR Capacitor
- 5 x M3 8.1mm Silicone Grommets
- 1 x SH 1.0mm 8-Pin Cable - 30mm
- 5 x M3 Silicone O-Ring
- 1 x XT60 Power Cable
