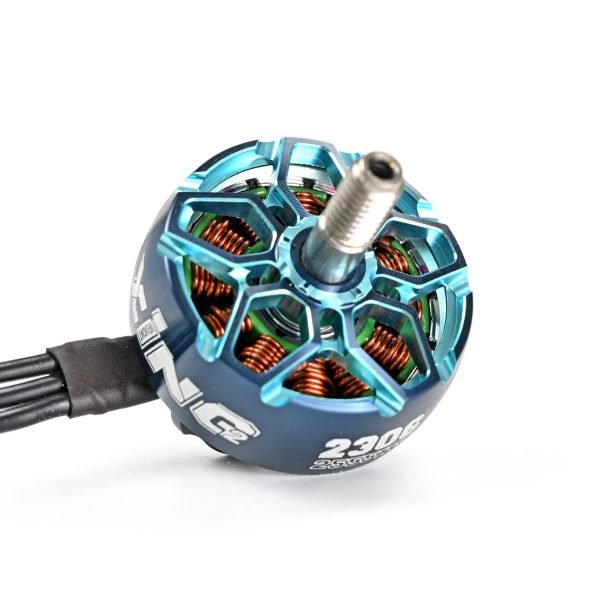

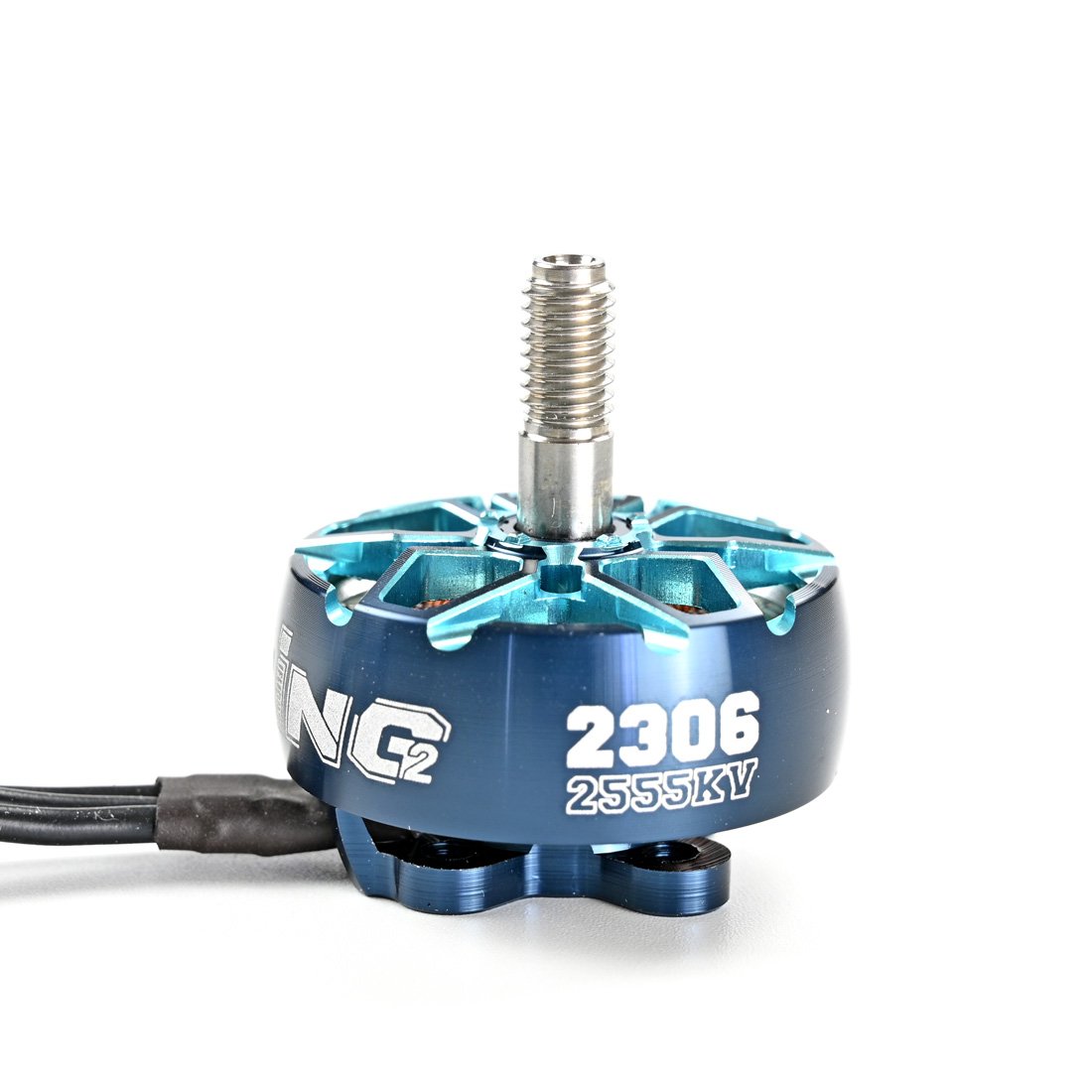

iFlight Xing2 2306 – 2555KV Motor

AVAILABILITY: In Stock (15 items)


Brand: iFlight

15 in stock

   Bulk Savings (Buy more save more)
  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question


iFlight is finally ready to announce its predecessor to the XING motor, the XING2! These smooth, reliable, and powerful XING motors have been upgraded with an even higher standard of performance and manufacturing. The XING2 motors offer a faster response to translate your PID loop quicker and get that locked-in feeling you have always been looking for!

Due to the high-quality materials used and the durable joint of the bell and shaft, iFlight has been able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!


  • 5mm titanium alloy shaft, our strongest prop shaft ever!
  • Smooth and long-lasting NSK 9x9x4 bearings
  • Center slotted N52H curved arc magnets
  • XING O-ring bearing gap protection
  • Crash resistant 7075 aluminum bell
  • Dynamically balanced
  • Motor wires protector

XING2 2306 2555KV

  • Model: XING2 2306 Motor
  • KV: 2555KV
  • Weight(included wire): 32.5g
  • Dimension: φ30*18.7mm
  • Interphase Resistance: 50mΩ
  • Input Volts: 16V
  • Peak Current: 51.3A
  • Max Watt: 820.8W
  • Mounting Holes: 16*16 φ3mm
  • Rotor Specifications: Unibell
  • Shaft Diameter: 5mm
  • Shaft Protruding Length: 13.5mm
  • Lead: 160mm/20AWG
  • Magnet: N52H Curved
  • Configuration: 12N14P
  • Bearing Type: NSK
  • Bearing Specification: φ9*φ4*4
  • Winding: Single Strand copper winding


  • 1 x XING2 2306 Brushless Motor
  • 4 x M3 * 6 screws
  • 1x M5 Flanged Nylon Insert Lock Nut
