iFlight Xing2 2207 – 1855KV Motor

AVAILABILITY: In Stock (1 items)

$34.00

Brand: iFlight

1 in stock

   Bulk Savings (Buy more save more)
  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

  Share

The XING2 2207 is iFlight predecessor of their current XING series.

Due to the high quality materials used and the durable joint of bell and shaft, they were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!

Features

  • Center slotted N52H curved arc magnets
  • XING O-ring bearing gap protection
  • Motor wires protector
  • Dynamically balanced
  • 5mm titanium alloy shaft, our strongest prop shaft ever!
  • Crash resistant 7075 aluminum bell
  • Smooth and long-lasting NSK 9x9x4 bearings

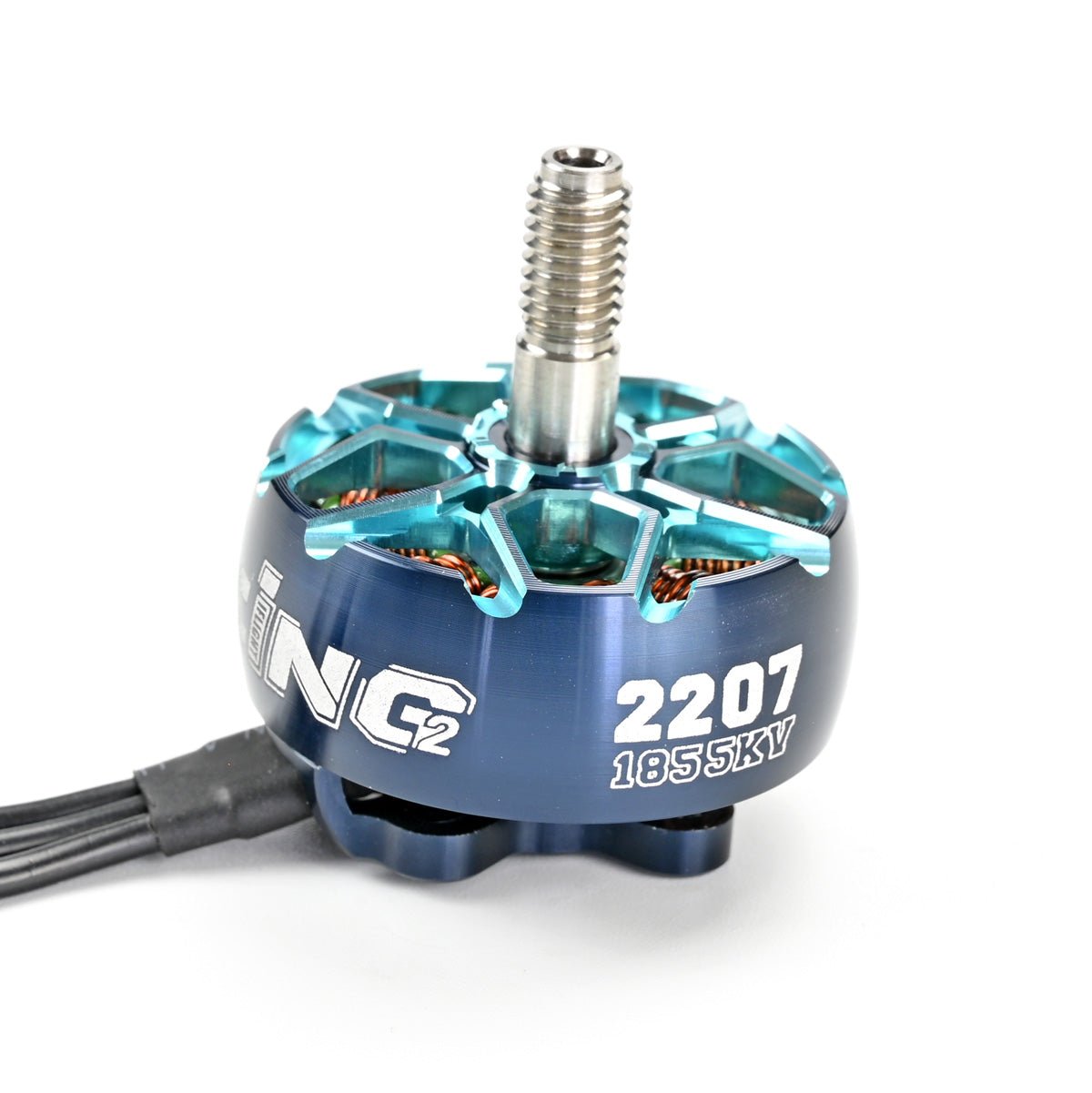

XING2 2207 - 1855KV

  • KV: 1855KV
  • Version: CW Screw Thread
  • Input Voltage: 3 ~ 6S Lipo
  • Max Continuous Power (W) 180s: 841.92W
  • Internal Resistance: 50mΩ
  • Max Current (60s): 35.08A
  • Configuration: 12N14P
  • Stator Diameter: 22mm
  • Stator Length: 7mm

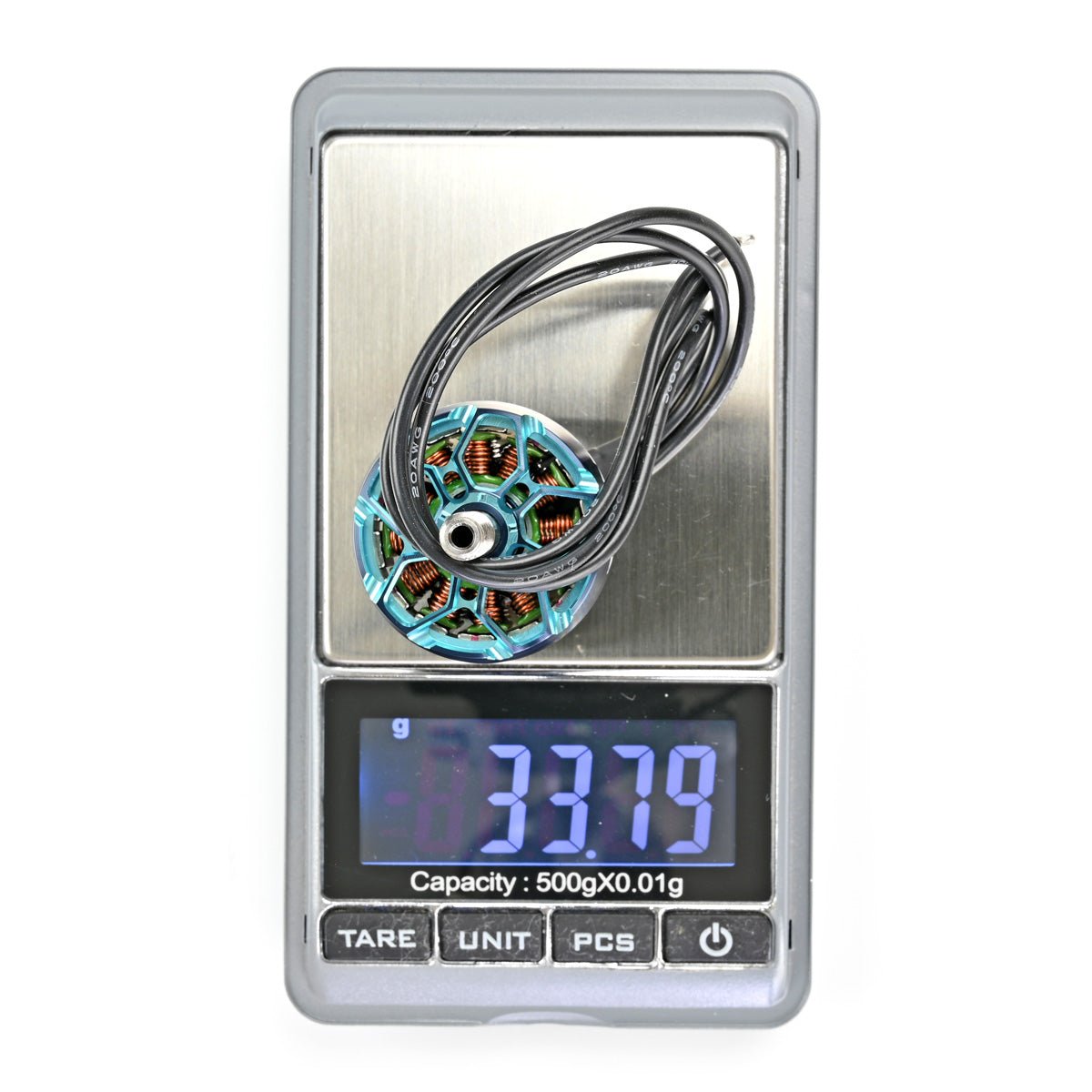

  • Weight: 31.6g with short wire
  • Wire Length: 20AWG 160mm
  • Mounting Pattern: 16 * 16mm

Includes

  • 1 x XING2 2207 Brushless Motor
  • 4 x M3 * 6 screws
  • 1x M5 Flanged Nylon Insert Lock Nut
