Holybro Tekko32 F4 45A ESC



Brand: Holybro

Out of stock

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

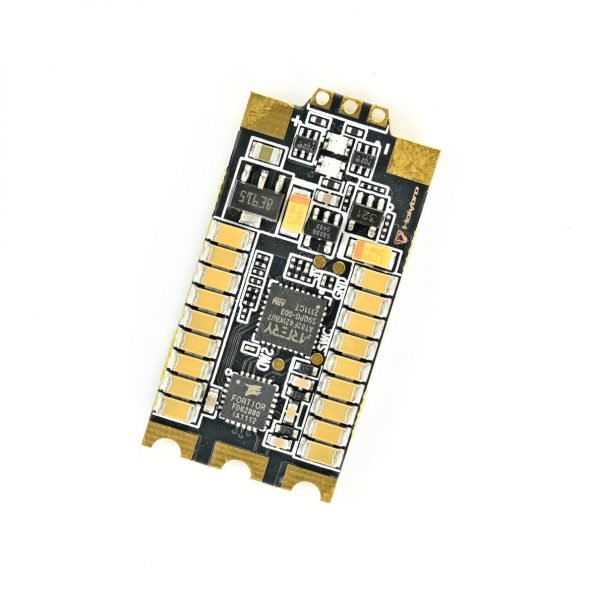

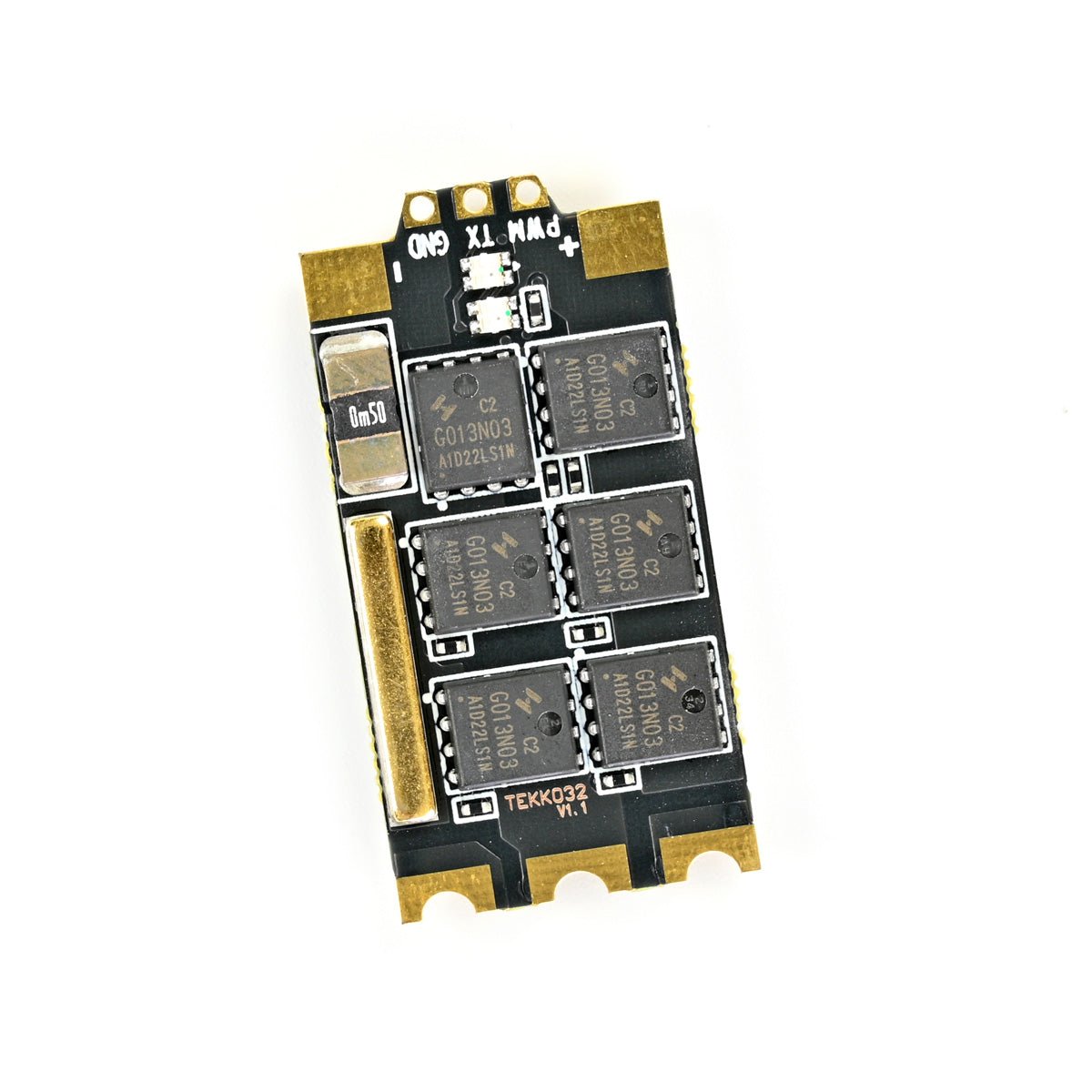

Tekko32 F4 45A ESC is the latest BLHeli32 ESC from HolyBro. The Tekko32 ESC runs in conjunction with an ARM 32bit compatible F4 MCU. It can run input signals with lower latency, at faster rates, smooths out the RPM band, is capable of both voltage and current monitoring and limiting, as well as offering customization of the brake on stop force.

The Tekko32 ESC has a lot of room to grow and wide compatibility range with future products.


  • F4 MCU with BLHELI32 firmware Dshot1200 up to 32kHz
  • PWM up to 48k
  • Small size & light weight
  • Auto Timing Feature
  • On-Board RGB LED
  • Build in current sensor
  • Smooth response
Tekko32 F4 45A ESC
  • 2-6s LIPO input
  • Ext. cap recommended for 6s (330uf 35v for 6s usage.)
  • 45A designed
  • Size: 17.3 * 34.3 * 4.5mm

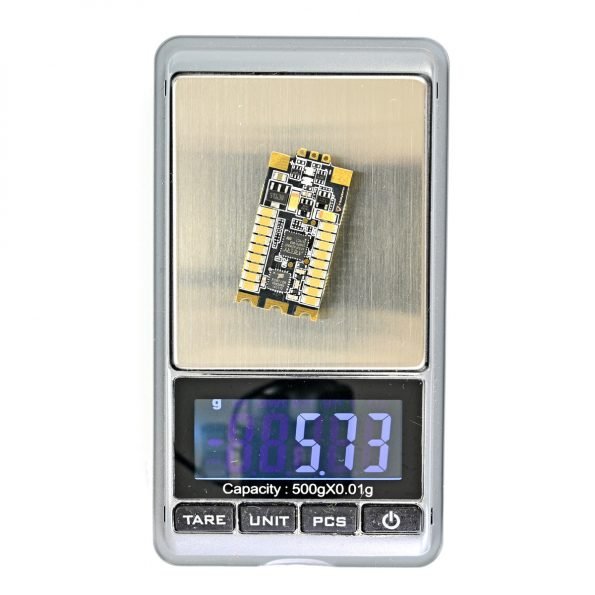

  • Weight: 5.8g

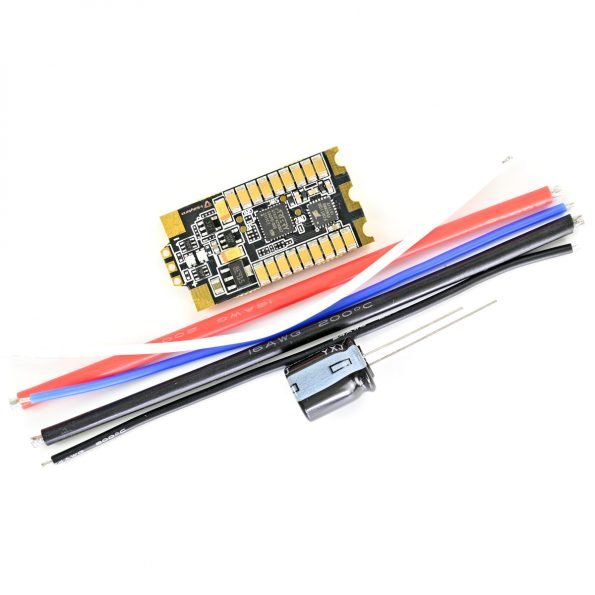

  • 1 x Tekko32 F4 45A ESC
  • 1 x Electrolytic capacitor: 330uF 35v
  • 1 x 24AWG 100mm Black wire
  • 1 x 24AWG 100mm White wire
  • 1 x 24AWG 100mm Blue wire
  • 1 x 16AWG 100mm Red wire
  • 1 x 16AWG 100mm Black wire
Manual Tekko32 F4 45A ESC
