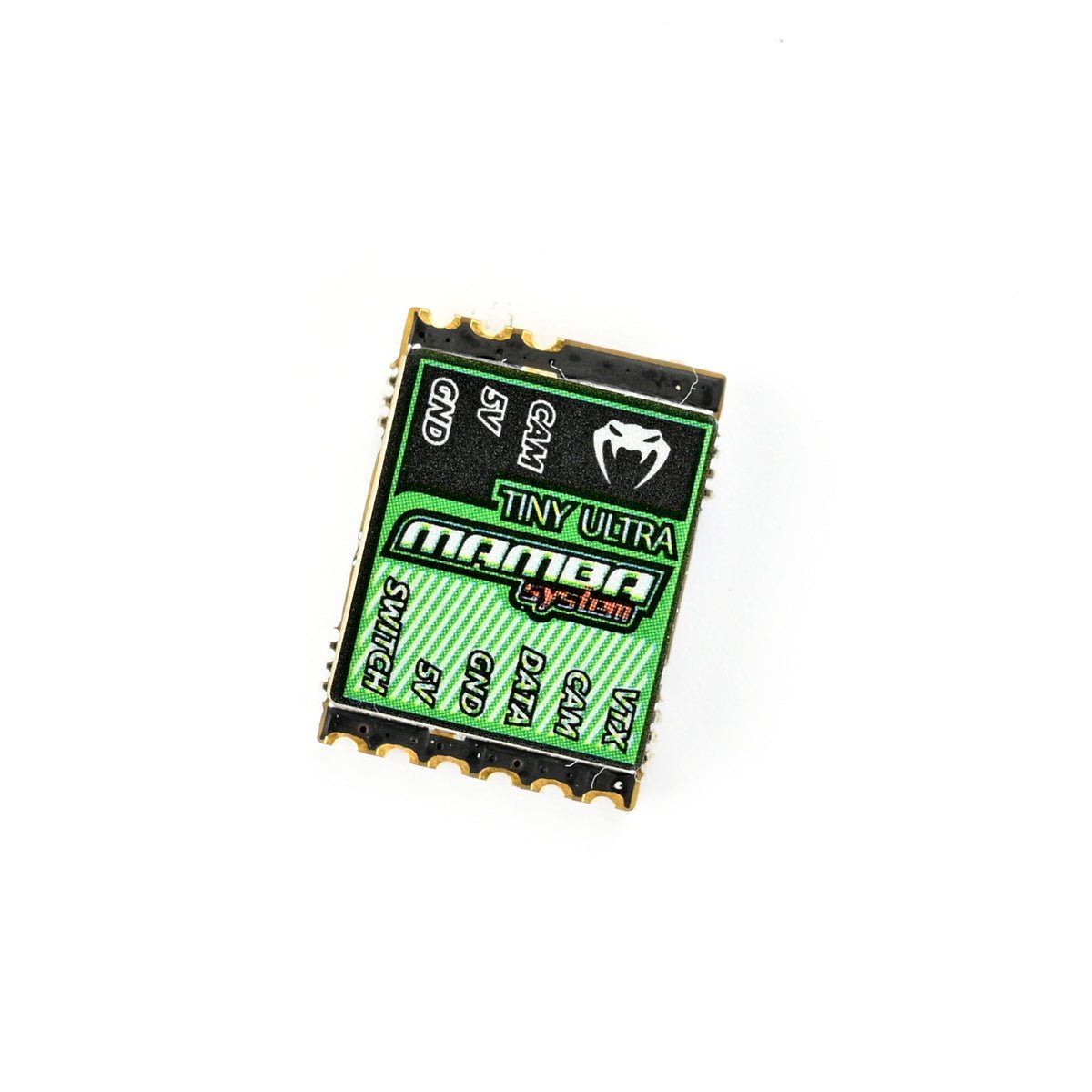

Diatone Mamba Ultra Tiny 5.8GHZ Video Transmitter



Brand: Diatone

Out of stock

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question


Small size but big power! The Diatone Mamba Ultra Tiny VTX is the VTX you need for your next Micro build. Small enough to fit into smallest frames, but enough power to get some signal through some of those dense trees. Switchable from 25mW up to 400mW with excellent power output stability.

PIT mode also allows you to power up your quad with pilots nearby without stomping on their frequency. Clean installation guaranteed, using one of their adapters to stack on 16x, 20x, and 25x size boards.

Mamba Ultra Tiny VTX
  • Output Power: 25 mW, 100 mW, 200 mW, 400 mW
  • Antenna Connector: IPEX (U.FL)
  • Input Voltage: 4.5 - 5 volts
  • Working Current: 380mA (5V / 400 mW)
  • Working Temperature: 80℃
  • Video Imput Impedance: 75Ω
  • Dimensions: 12.2 x x 17 x 4.5mm
  • 1 x Mamba Ultra Tiny VTX
  • 1 x Set of wires
  • 1 x Ipex Antenna
  • 1 x Ultra Tiny PDB20mm board
  • 1 x Ultra Tiny PDB16/20/25.5mm board
