    Diatone Mamba Toka 2203.5 - 1650KV Motor

    Diatone Mamba Toka 2203.5 - 1650KV Motor


    Ask a Question

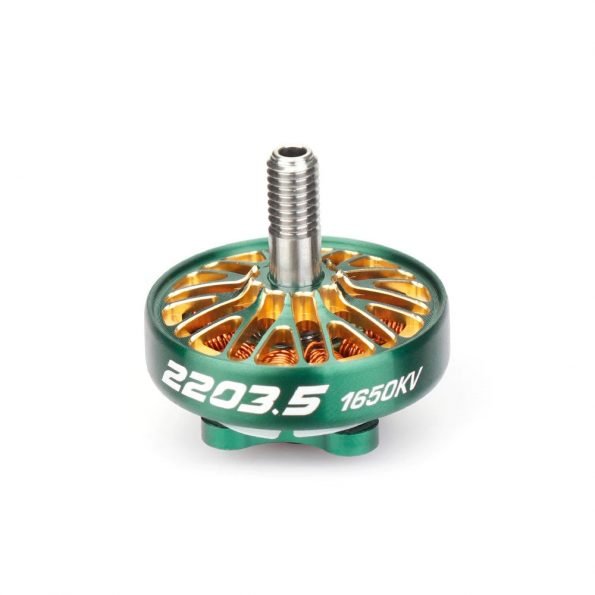

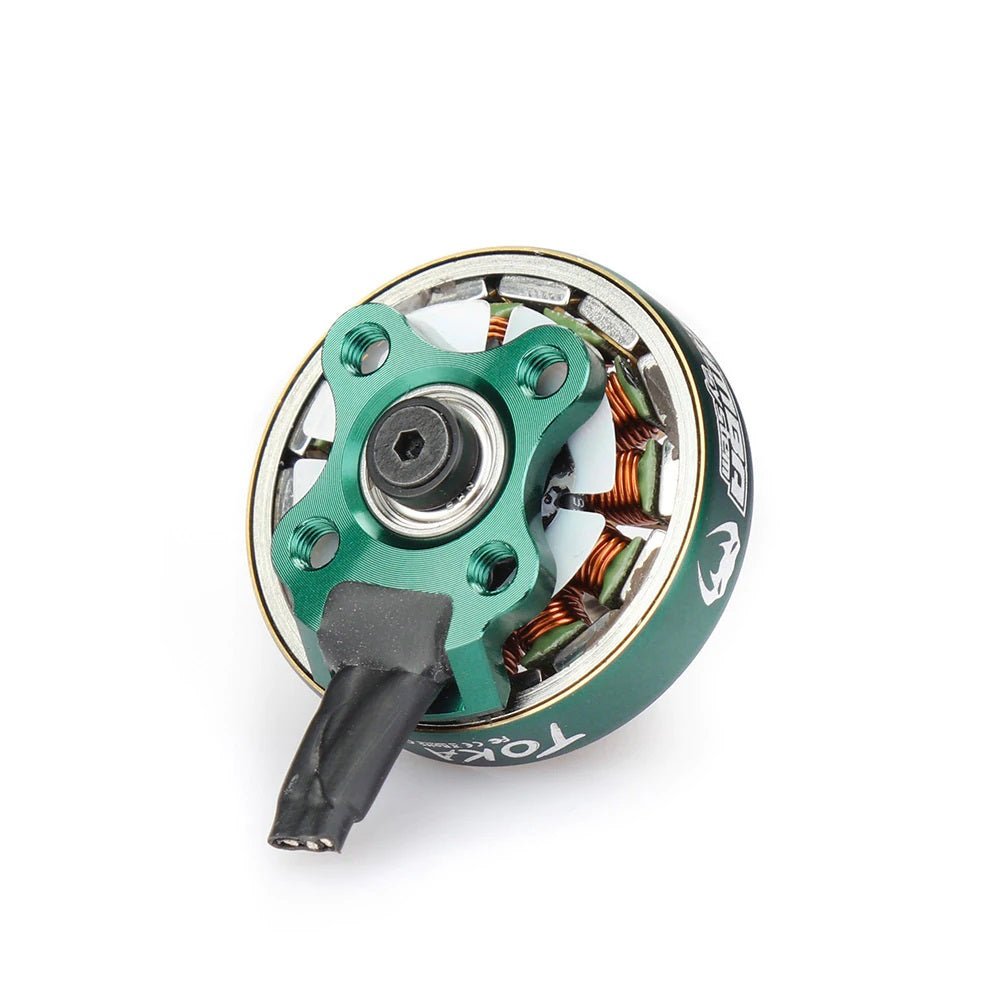

    The Mamba Toka 2203.5 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3″-4″ builds!

    MAMBA TOKA 2203.5 1650KV Racing Motor
    • Overall Dimension: φ28.9×29.4mm
    • Prop mounting shaft diameter: 5mm
    • Installation hole position: 16×16mm, M3
    • Prop: 5inch
    • Bearing: 9*4*4
    • Shaft Diameter: 4.0mm
    • Lead Wire Size: 24AWG × 190mm
    • Configuration: 12N14P
    • Magnet Wire: 240℃ Enameled Wire
    • Stator Diamter: 22mm
    • Stator Height: 3.5mm
    • Rated Voltage: 4S ~ 6S (16.8V ~ 25.2V)
    • Peak Current: 15.59A
    • ldle Current: 10V/0.3A ~ 1.0A
    • Maximum Power: 380.8W
    • Internal Resistance: 232mΩ
    • Weight: 20.8g
