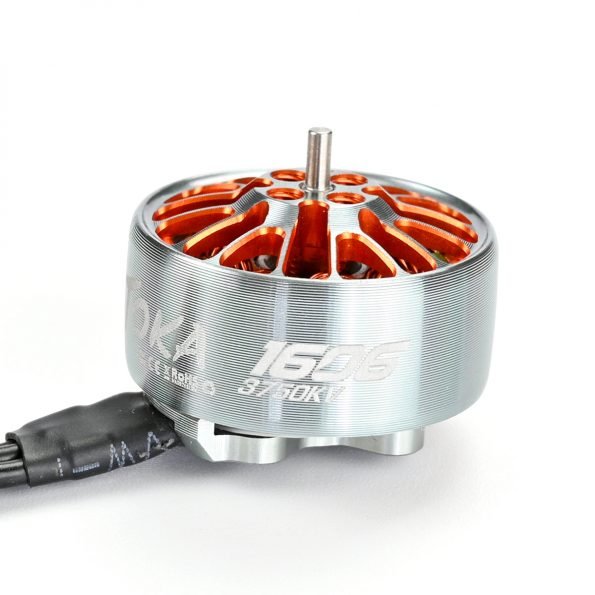

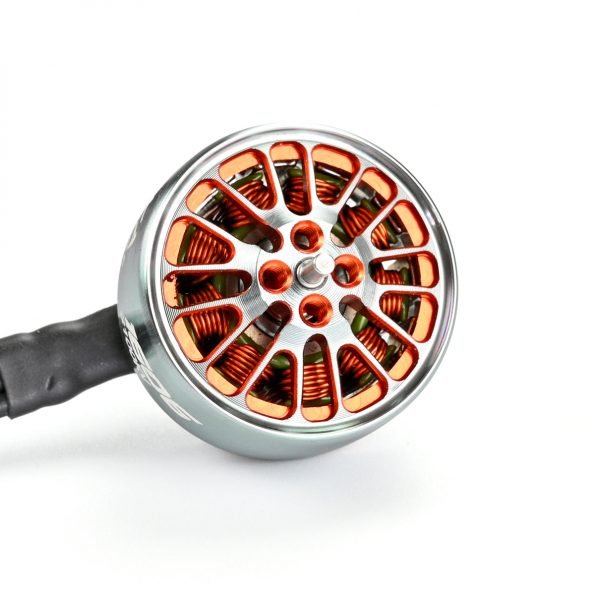

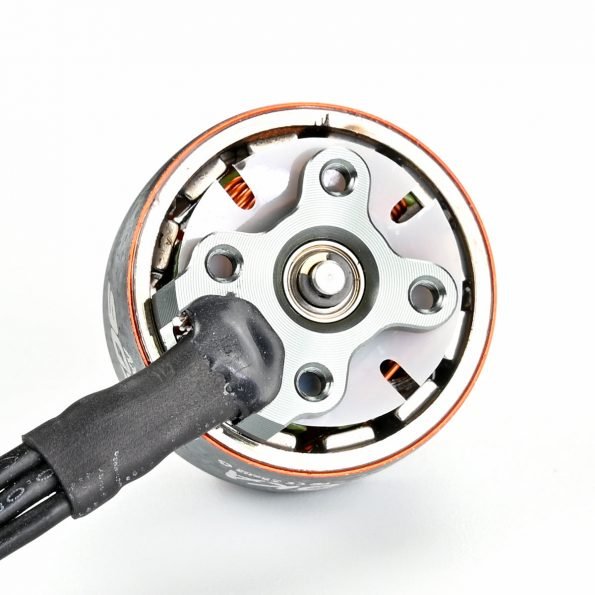

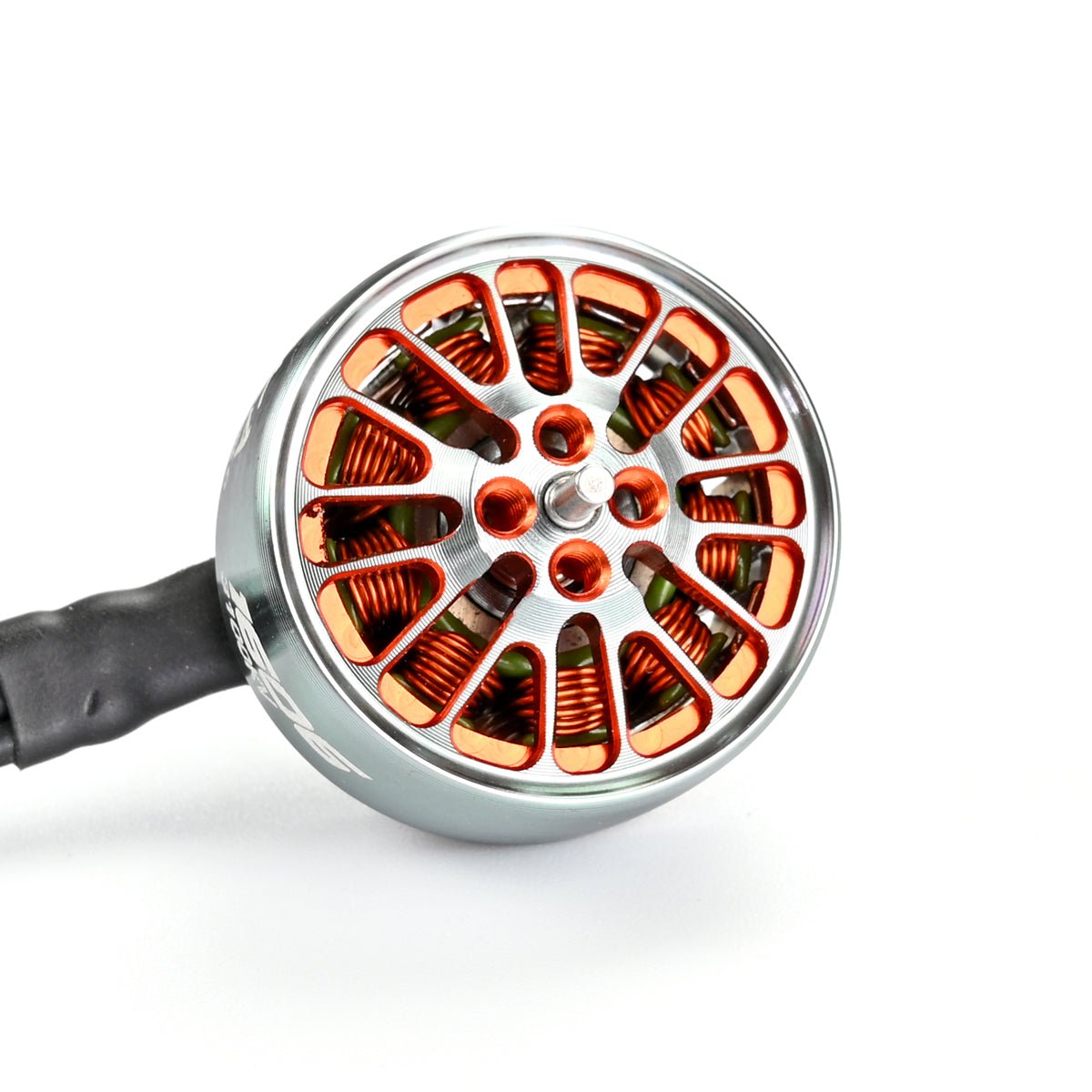

The Mamba Toka 1606 Motor is a new series of motors by Diatone that is best suited for CineWhoops, or any 3″-4″ builds! Choose within these three KVs to best fit your FPV needs: 3100KV, 3750KV and 4300KV.

MAMBA TOKA 1606 3750KV Racing Motor
  • Overall Dimension: Φ22.2×15mm
  • prop mounting shaft diameter: 1.5mm
  • Installation hole position: 12×12mm, M2
  • Prop: 3inch ~ 4inch
  • Bearing: 5*2*2.5
  • Shaft Diameter: 2mm
  • Lead Wire Size: 24AWG × 150mm
  • Configuration: 9N12P
  • Magnet Wire: Class H, 220℃ Enameled Wire
  • Stator Diamter: 16mm
  • Stator Height: 6mm
  • Rated Voltage: 3~4S (12.6V ~ 16.8V)
  • Peak Current: 21.1A
  • ldle Current: 9V/0.8A
  • Maximum Power: 338W
  • Internal Resistance: 114Ω
