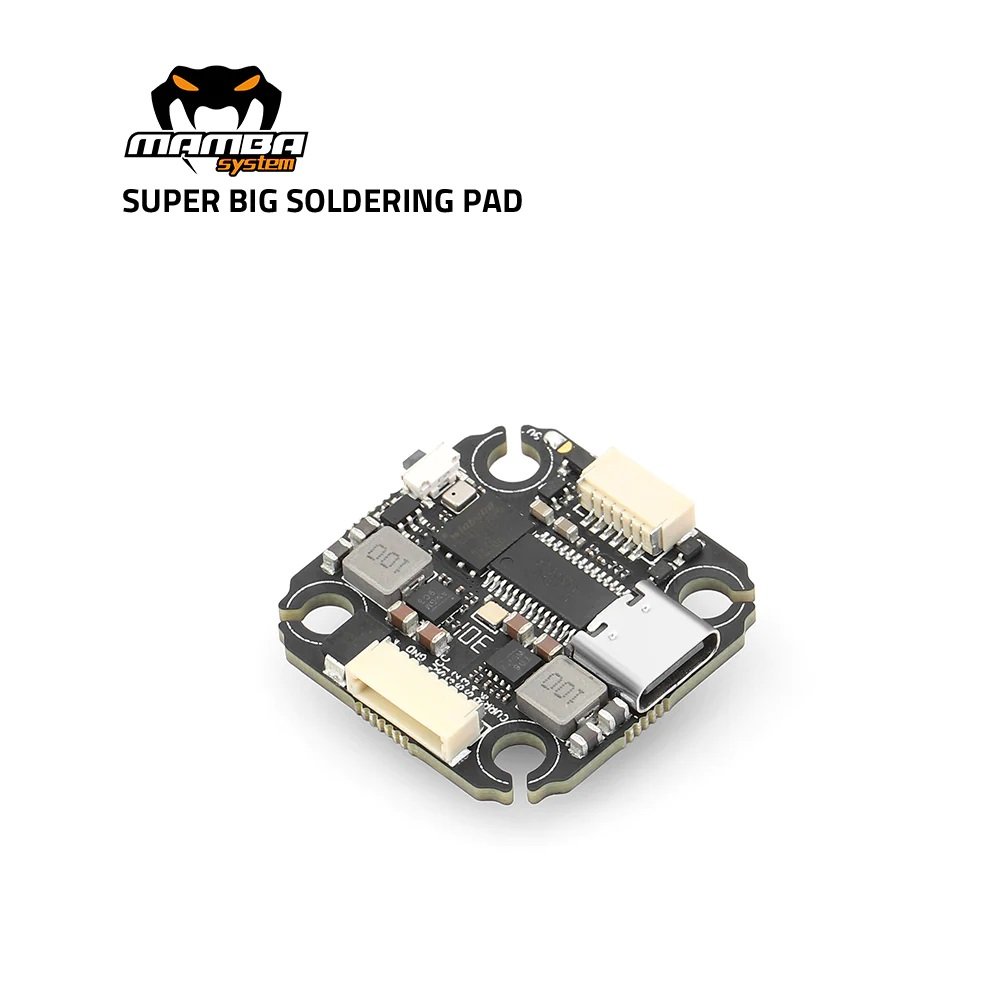

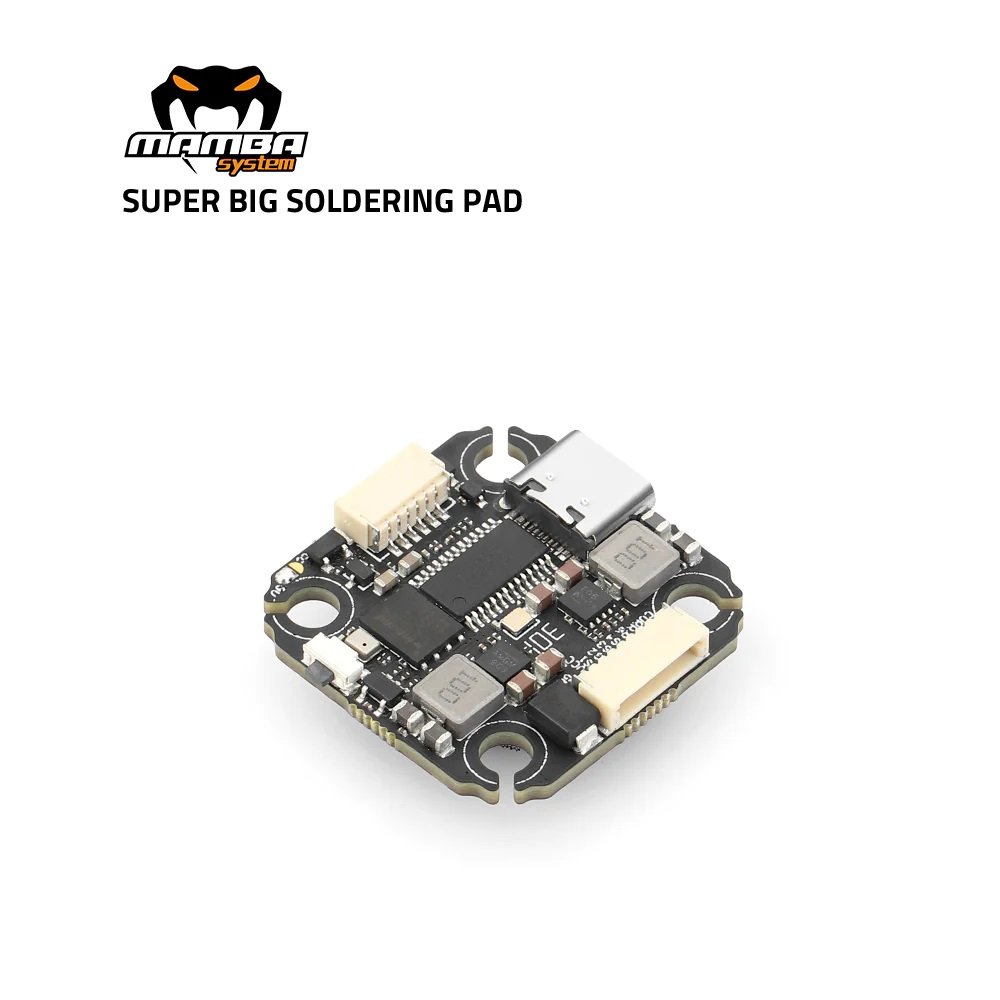

This Mamba MK4 F722 Mini by Diatone is a flight controller with an ICM42688 Gyro, making this FC the perfect addition to your FPV build.

MK4 UPDATES

  • Upgraded the twisted pair anti-jamming cable, and the reinforcement process

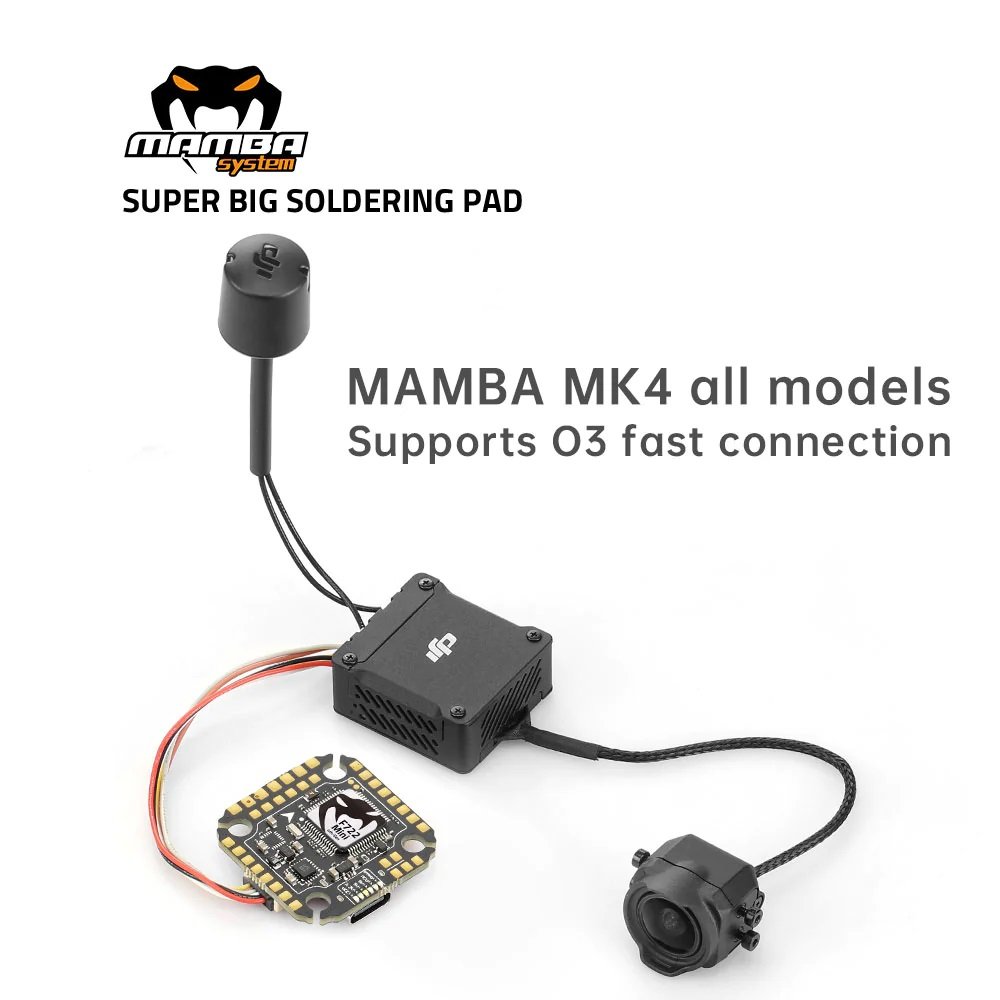

  • MINI series upgraded DJI interface and 5V 15W/9V 18W 2 set BEC
  • Miniseries FC use 2mm and 3mm fixing holes
  • The entire series supports 6 set uart and |2C
  • A full range of integrated Flash and Baro
  • MP9943 synchronous rectifier BEC
  • The pad area increased by 30%
  • Pad spacing increased by 100%
  • The whole series uses Type-C
  • 32Bit ESC all support 128K
  • 4 set power protection

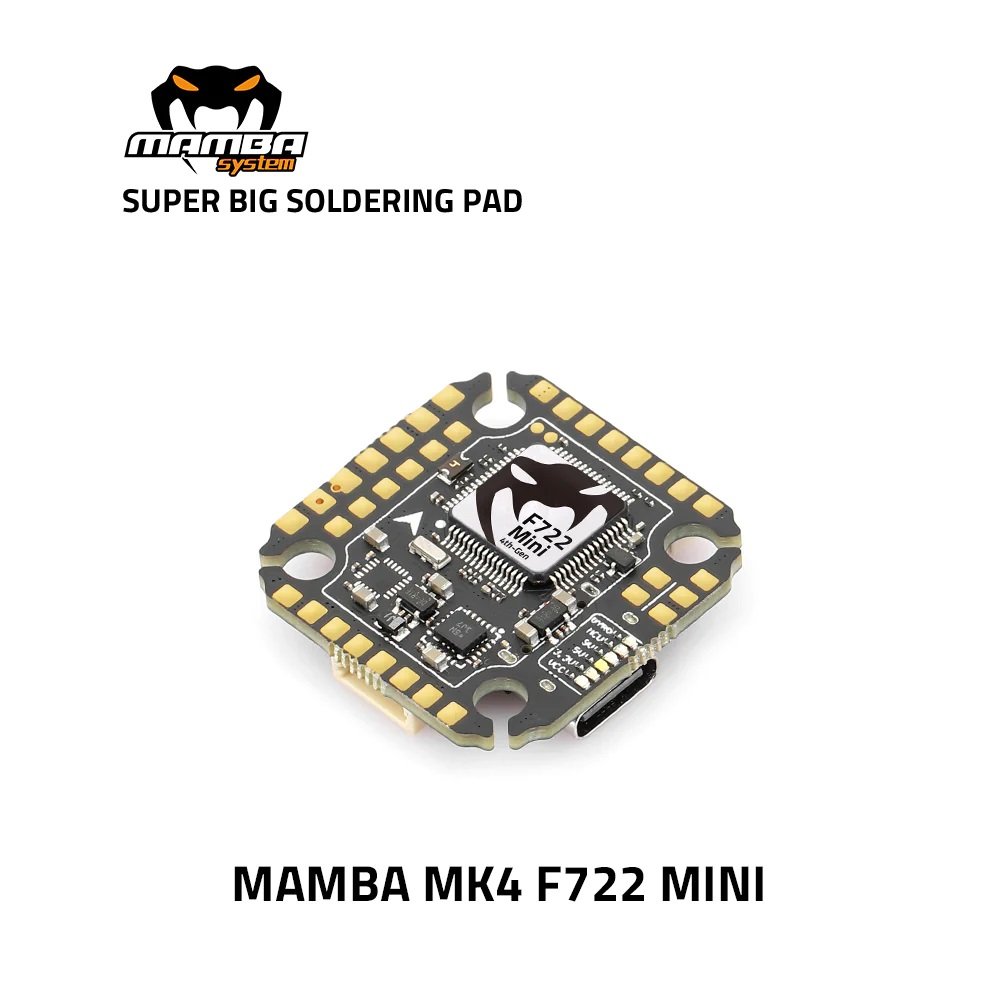

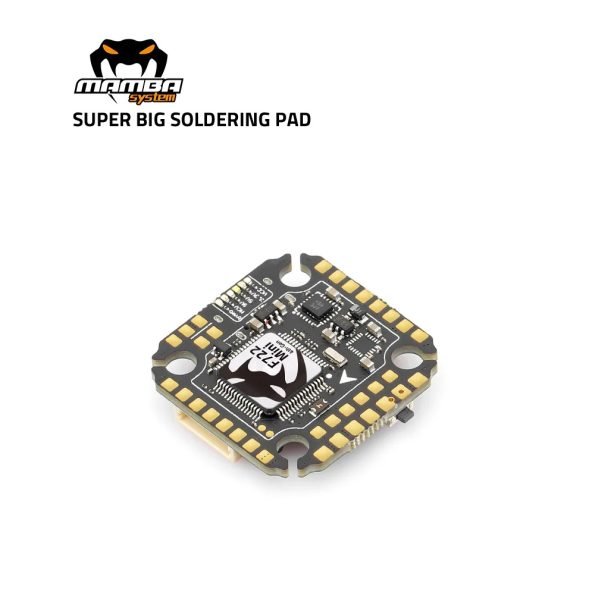

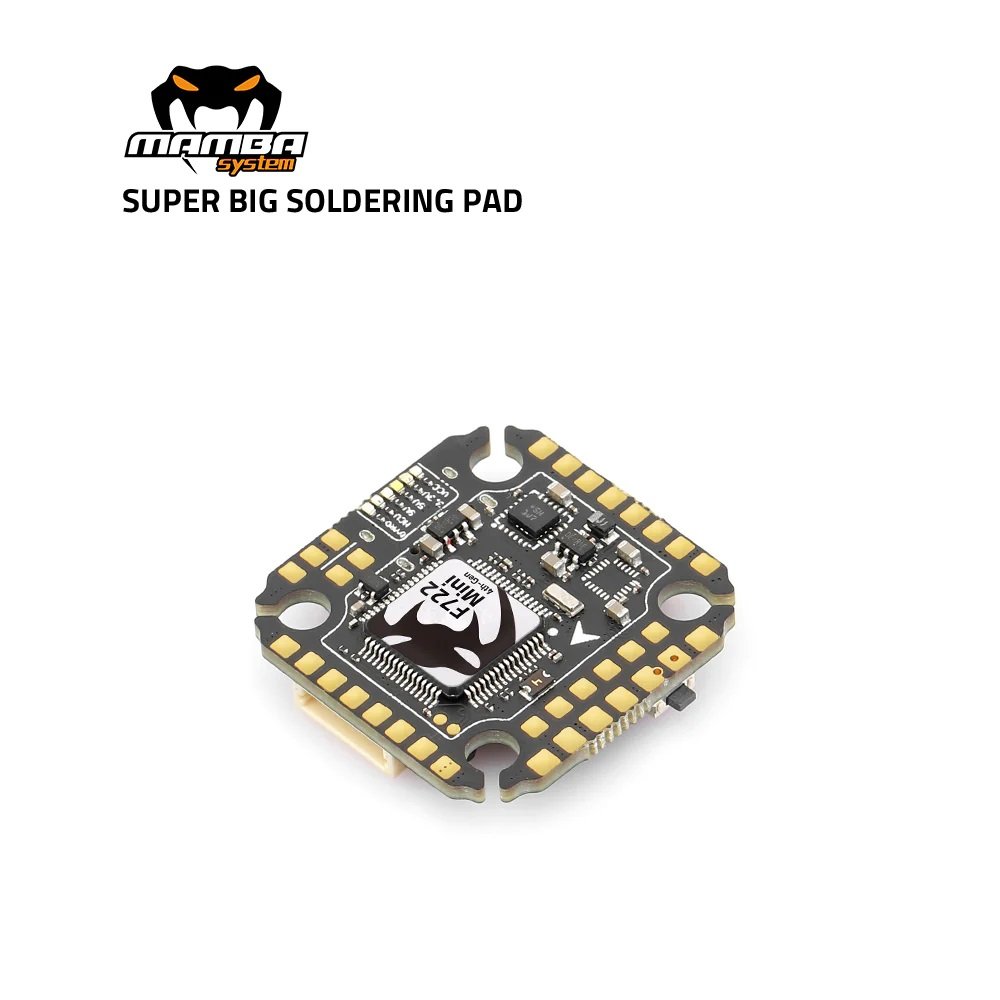

Mamba MK4 F722 Mini

  • MCU: 216MHz STM32F722
  • GYRO: ICM42688P
  • OSD: AT 7456E
  • Black box: 16M flash memory
  • UARTS: 6
  • Receiver: TBS/SBUS/IBUS/DSM
  • I2C: Yes
  • F.Port: Yes
  • Buzzer Pad: Yes
  • Pad CURR: Yes
  • ESC signal: 8 sets
  • BEC 3.3V: 0.5V
  • 5V BEC: 2.5A
  • BEC 9V: 2A
  • MB-LED: Yes
  • BF LED: Yes
  • Air Unit Port: Yes
  • VTX Switch: Yes
  • BEC Protection: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • Input: Lipo 6S
  • Software: Betaflight
  • Mounting: 20x20mm/M2
  • Size: 29x29.5x6.5mm
  • Weight: 6.0g

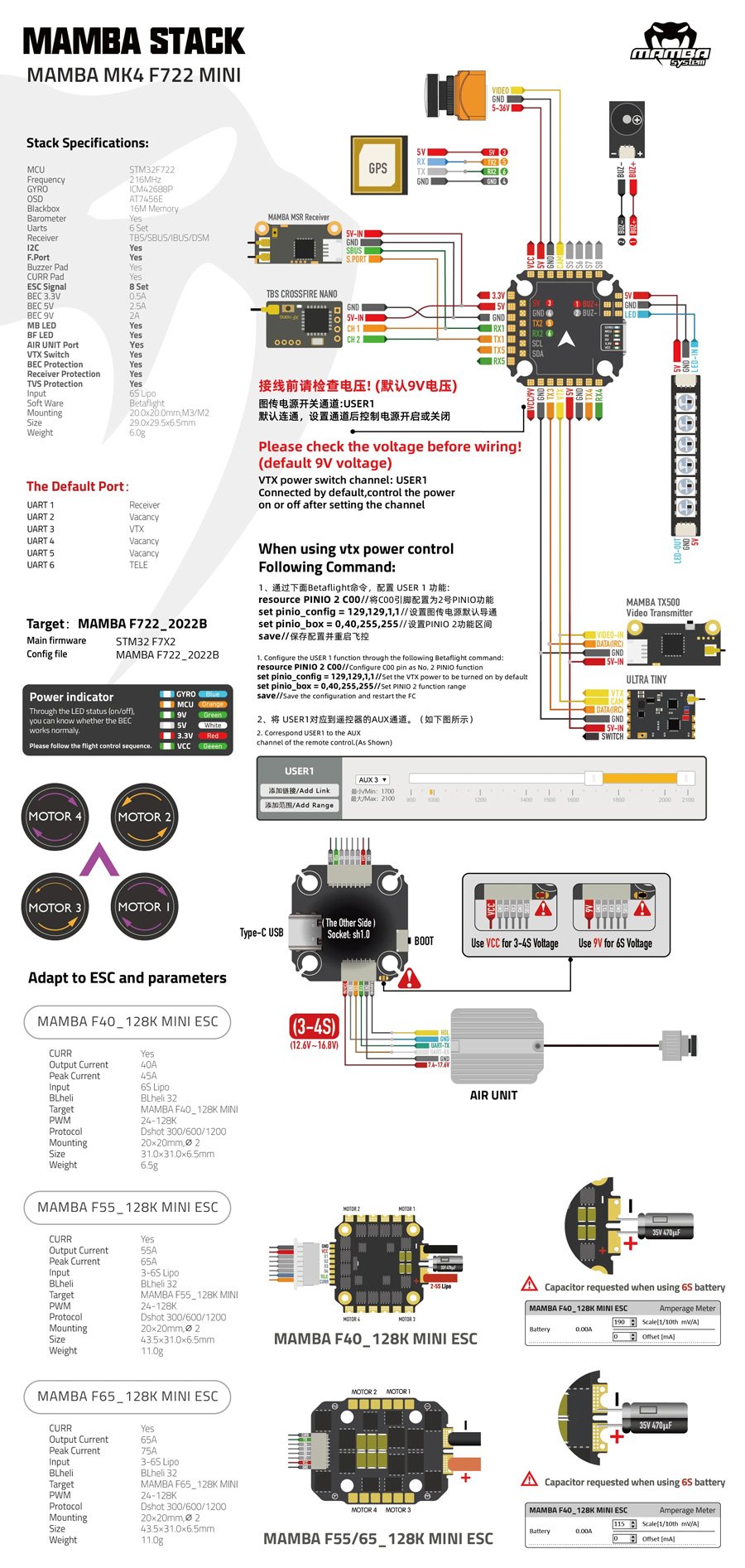

Mamba MK4 F722 Mini Wiring Diagram
