Diatone Mamba MK4 F722 App + F55 55A 128K Stack

AVAILABILITY: In Stock (5 items)

$155.00

Brand: Diatone

5 in stock

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

  Share

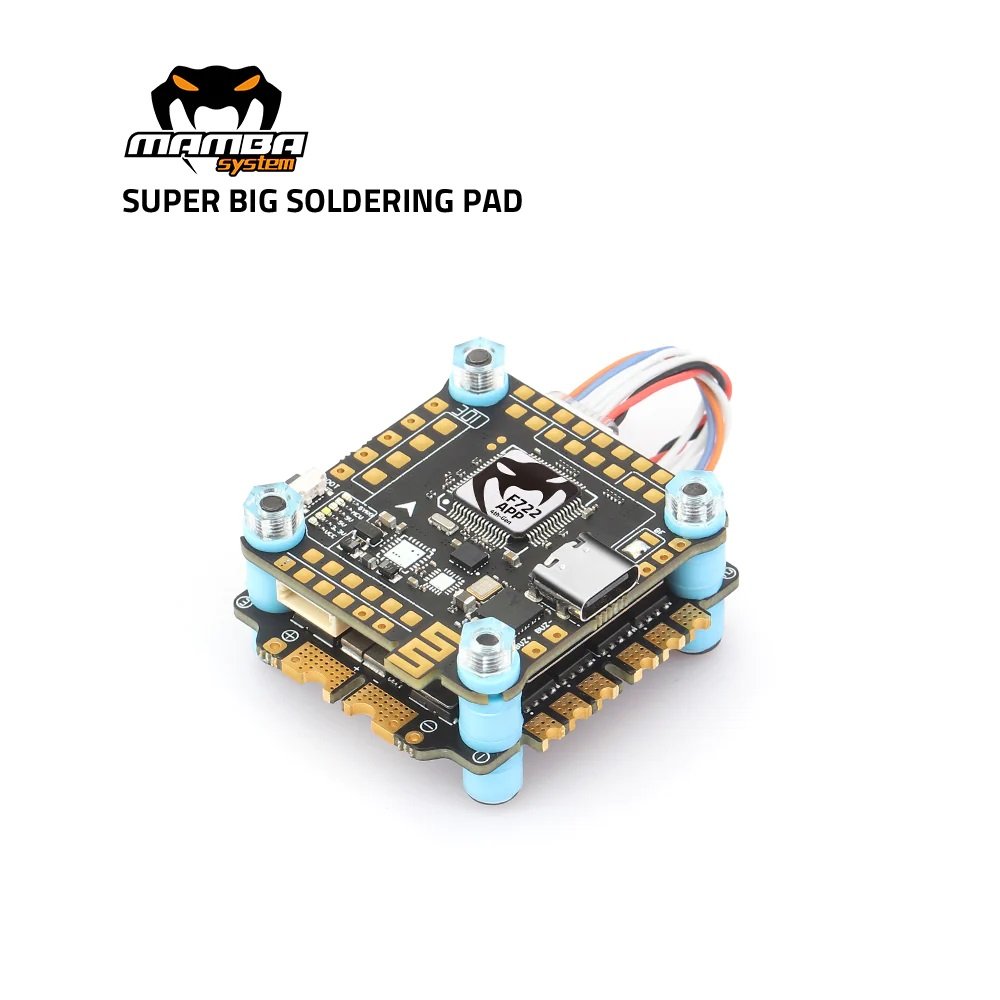

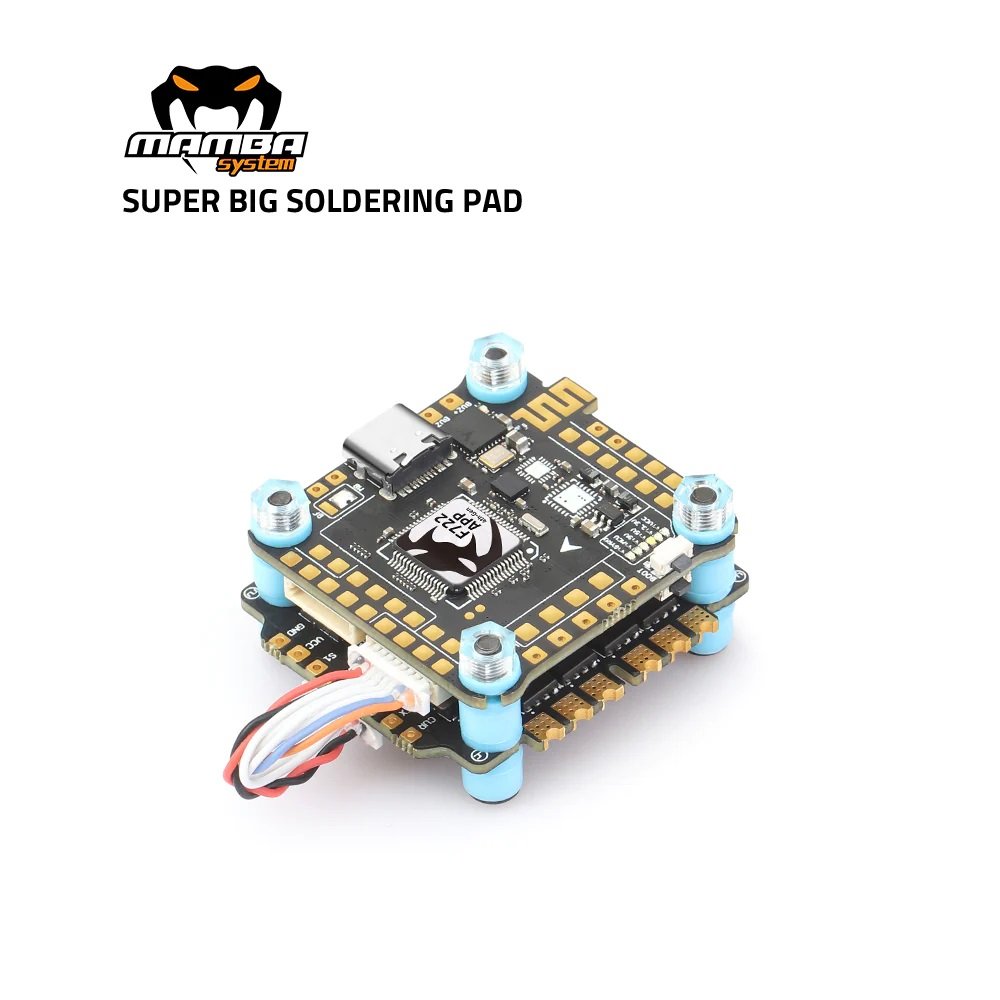

The Diatone Mamba MK4 F722 App + F55 55A 128K Stack is a top-of-the-line flight controller and ESC combo designed for high-performance FPV racing drones. The F722 App flight controller boasts an advanced STM32F722 processor, integrated Bluetooth module, and supports Betaflight and Cleanflight firmware. The F55 55A 128K ESC features high-quality MOSFETs for efficient power delivery and smooth motor control. This stack offers unparalleled reliability, ease of use, and performance for professional FPV racers and drone enthusiasts.

NOTE !!!
This stack comes with ICM42688P GYRO on the Flight Controller

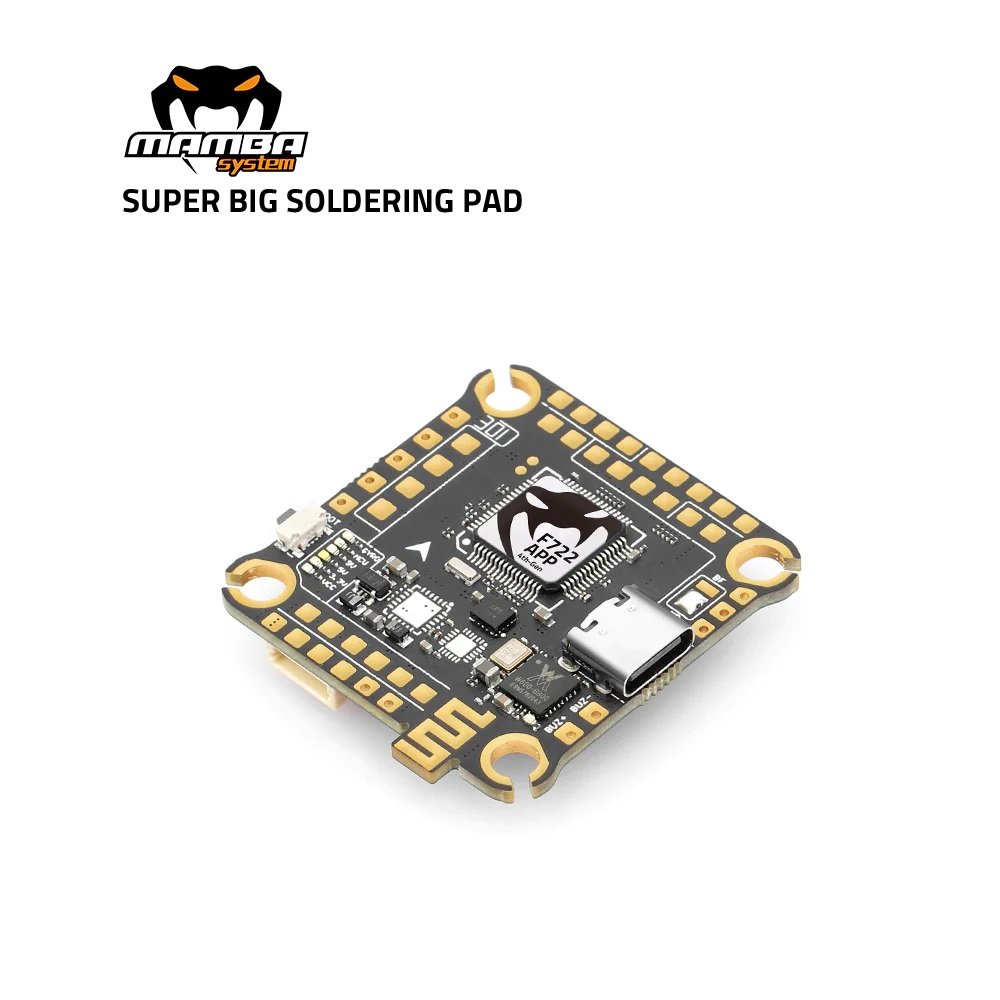

Mamba MK4 F722 APP Flight Controller

  • MCU: 216MHz STM32F722
  • IMU: Dual ICM42688P
  • Baro: SPL06
  • OSD: AT7456E
  • Blacbox: 16M Flash Memory
  • Uarts: 6 Set
  • Receiver: TBS/PPM/SBUS/IBUS/DSM
  • I2C: Yes
  • S/F.Port: Yes
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 8 Set
  • BEC 3.3V: Yes/0.5A
  • BEC 5V: Yes/3.0A
  • BEC 9V: Yes/3.0A
  • MB LED: Yes
  • BF LED: Yes
  • Air Unit Port: Yes
  • WIFI: SpeedyBee APP
  • VTX Switch: Yes
  • BEC Protection: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • Target: Mamba F722_2022A
  • Input: 6S Lipo
  • Mounting: 30.5 x 30.5mm/M3
  • Size: 38.0 x 40.5 x 8mm
  • Weight: 10.0g

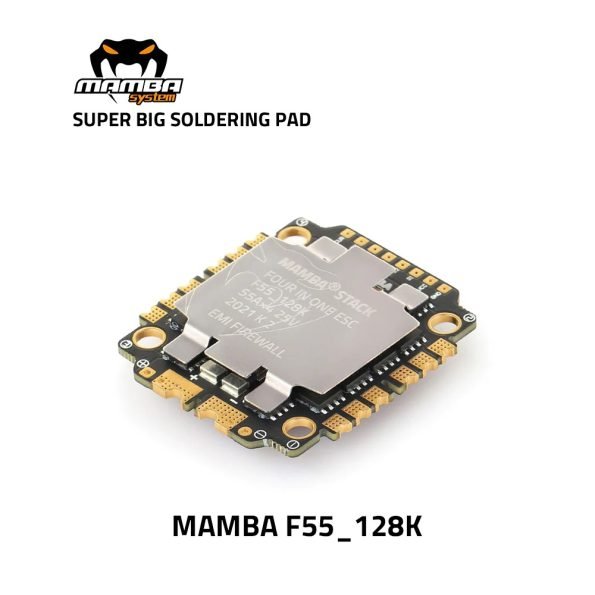

Mamba F55 128K 55A 4in1 ESC

  • INPUT VOLTAGE: 3 ~ 6S Lipo (12.6V ~ 25.2V)
  • CONTINUE CURRENT: 55A × 4
  • BURST CURRENT: 65A (10S)
  • BEC: No
  • Target: BLHeli_32 MAMBA F55_128K
  • SOFT: Dshot300/600/1200
  • PWM: 24 ~ 128K
  • TVS Protection: Yes
  • MOUNTING: 30.5mm/M3
