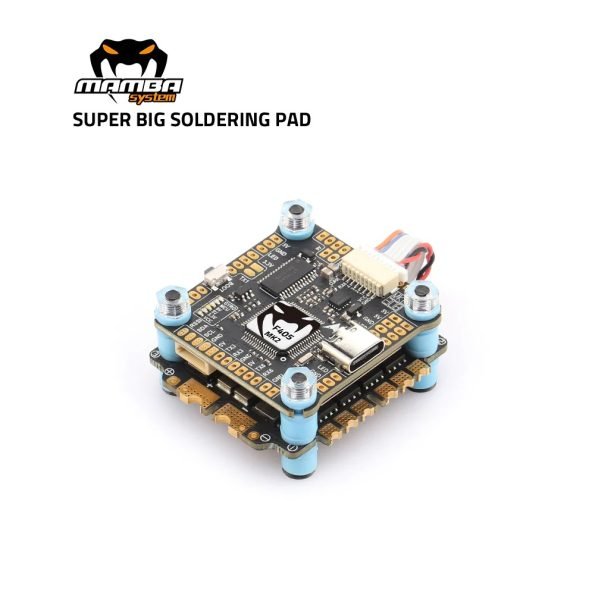

The Diatone Mamba F405 MK2 V2 + F55 55A BLS Stack is a high-performance flight controller and ESC stack designed for drone enthusiasts. The flight controller features an F4 MCU, 32KHz Gyro, and integrated Betaflight OSD, providing stable and precise flight control. The ESC stack includes four 55A brushless ESCs, offering reliable and efficient power delivery to the motors. With its compact size and lightweight design, this stack is perfect for FPV racing or freestyle drones. Whether you are a beginner or an experienced pilot, the Diatone Mamba F405 MK2 V2 + F55 55A BLS Stack is a must-have for enhancing your drone’s performance.

NOTE !!!
This stack comes with ICM42688P GYRO on the Flight Controller

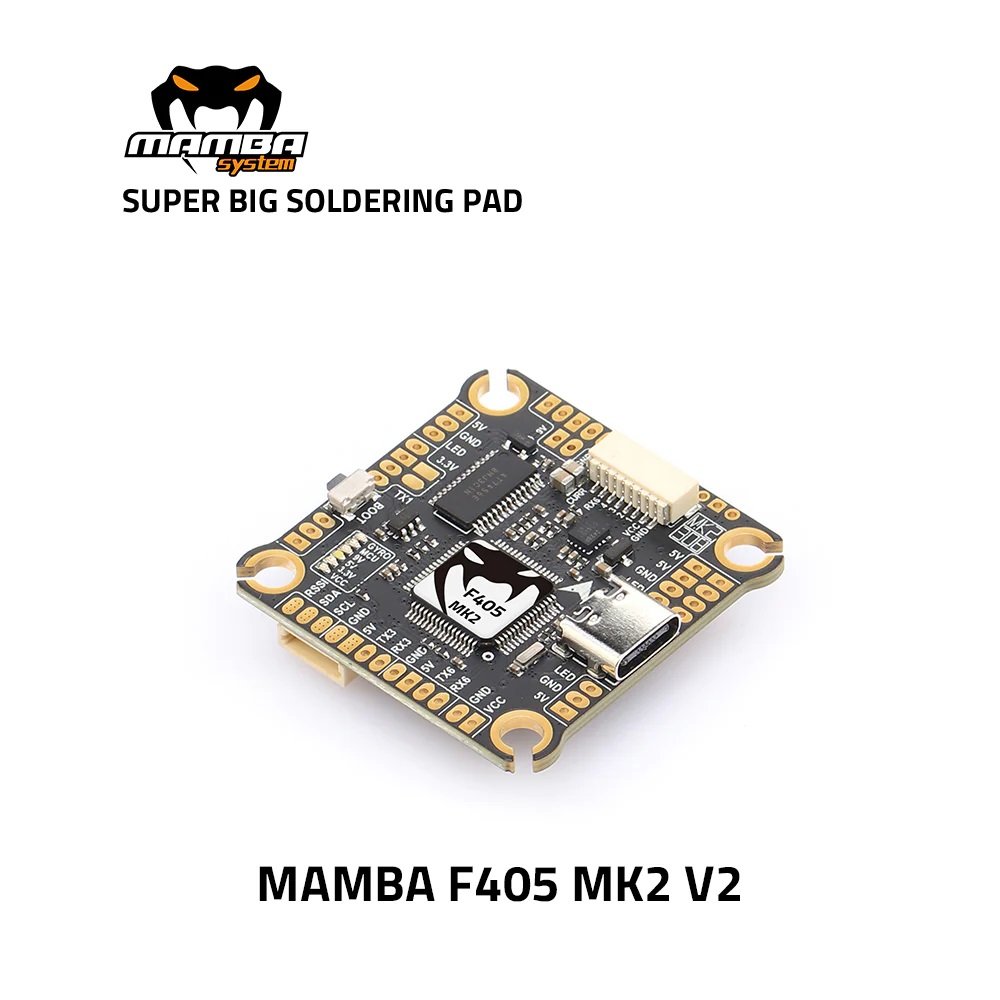

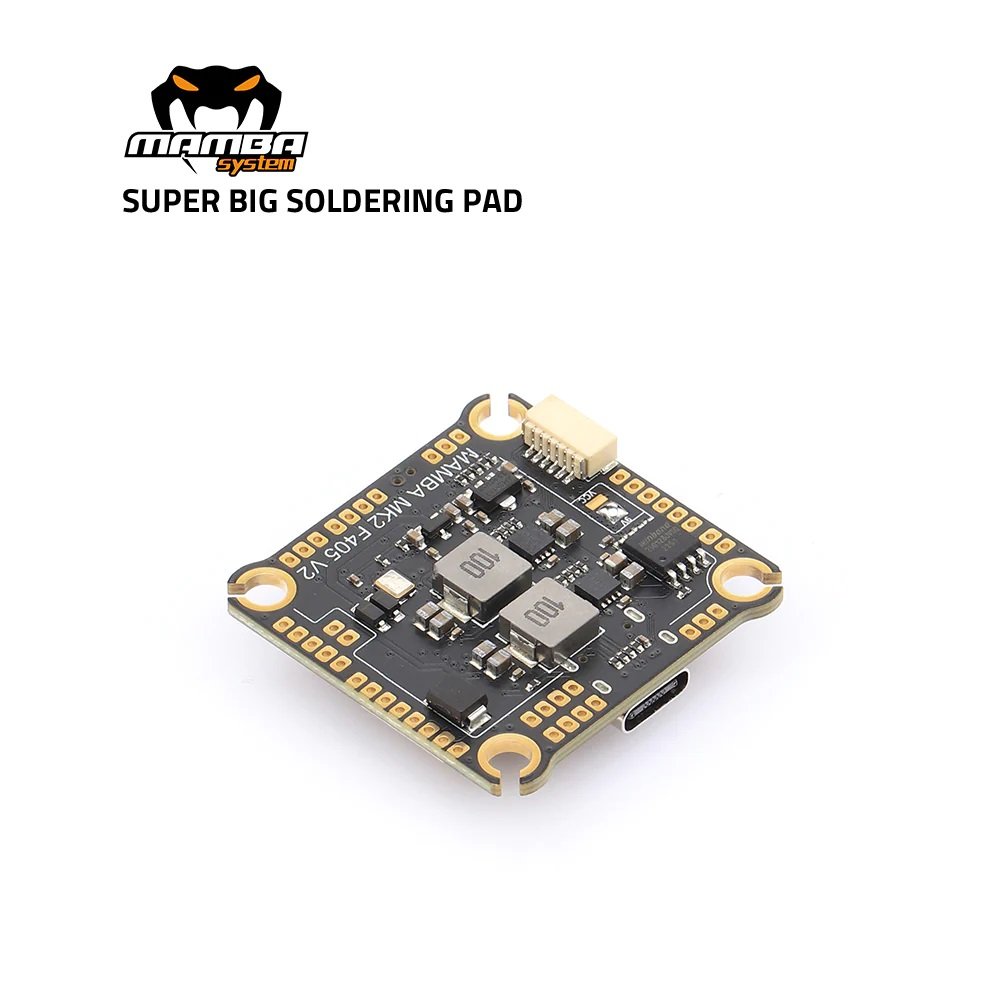

Mamba MK2 F405 V2

  • MCU: STM32F405
  • Frequency: 168MHz
  • GYRO: ICM-42688-P
  • OSD: AT7456E
  • Blacbox: 16M Flash Memory
  • Barometer: No
  • Uarts: 3 Set
  • I2C: Yes
  • F.Port: No
  • RSSI: Yes
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 4 Set
  • BEC 3.3V: 0.5A
  • BEC 5V: 2A
  • BEC 9V: 3A
  • BF LED: Yes
  • AIR UNIT Port: Yes
  • BEC Protection: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • Input: 3~6S Lipo (12.6~25.2V)
  • Mounting: 30.5mm x 30.5mm/M3
  • Size: 36 x 38 x 8mm

Mamba F55 BLS ESC

  • CURR: Yes
  • Telemetery: No
  • BEC: No
  • Output Current: 55A
  • Peak Current: 65A
  • Protocol: DShot 300/600
  • Input voltage: 3 ~ 6S
  • BL: BLHeli_S
  • Target: CH40
  • Mounting: 30.5 x 30.5mm, φ3
  • Size: 44.5 x 40.0 x 6.8mm
  • Weight: 14g
