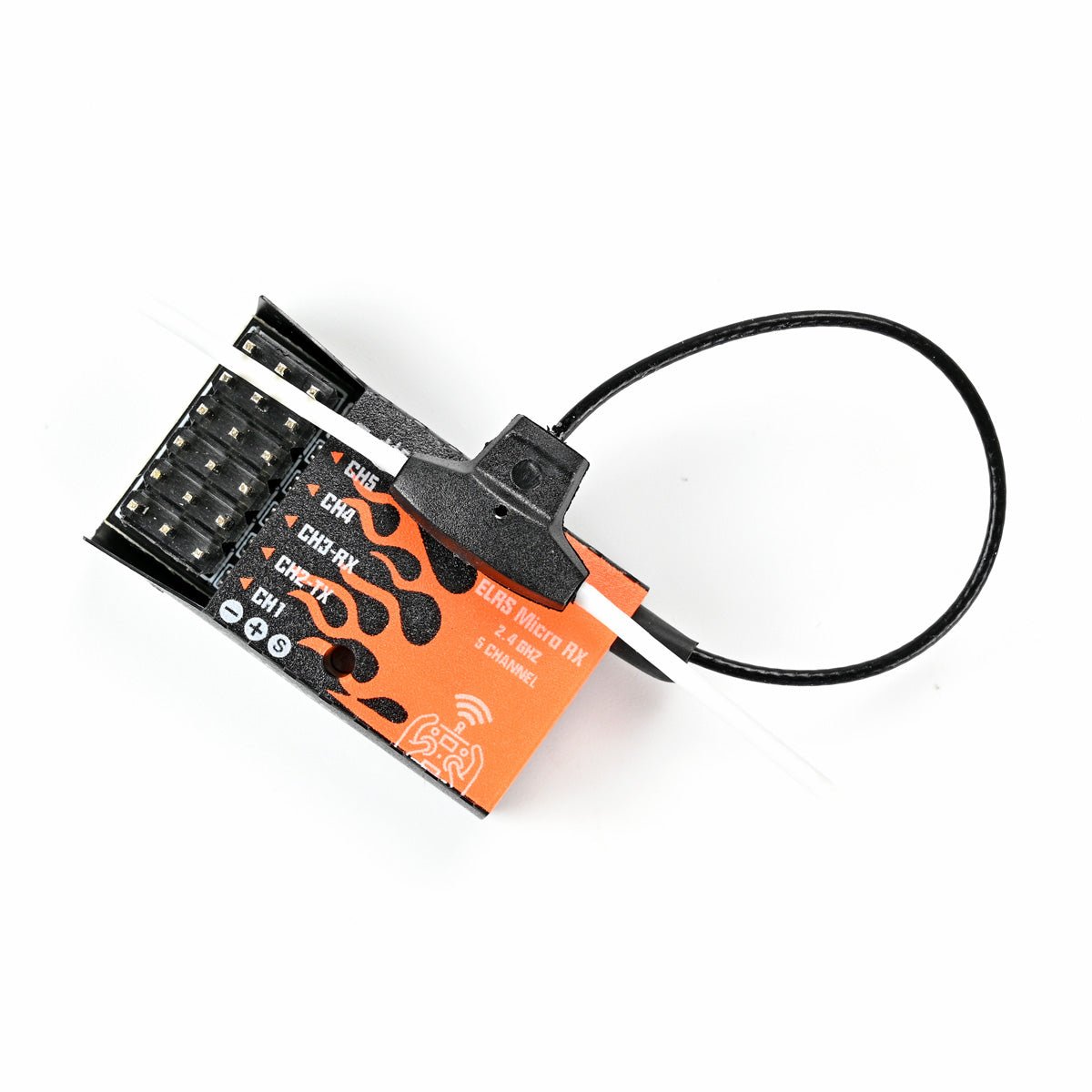

BETAFPV ELRS Micro 2.5GHz receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.
ExpressLRS PWM Receivers

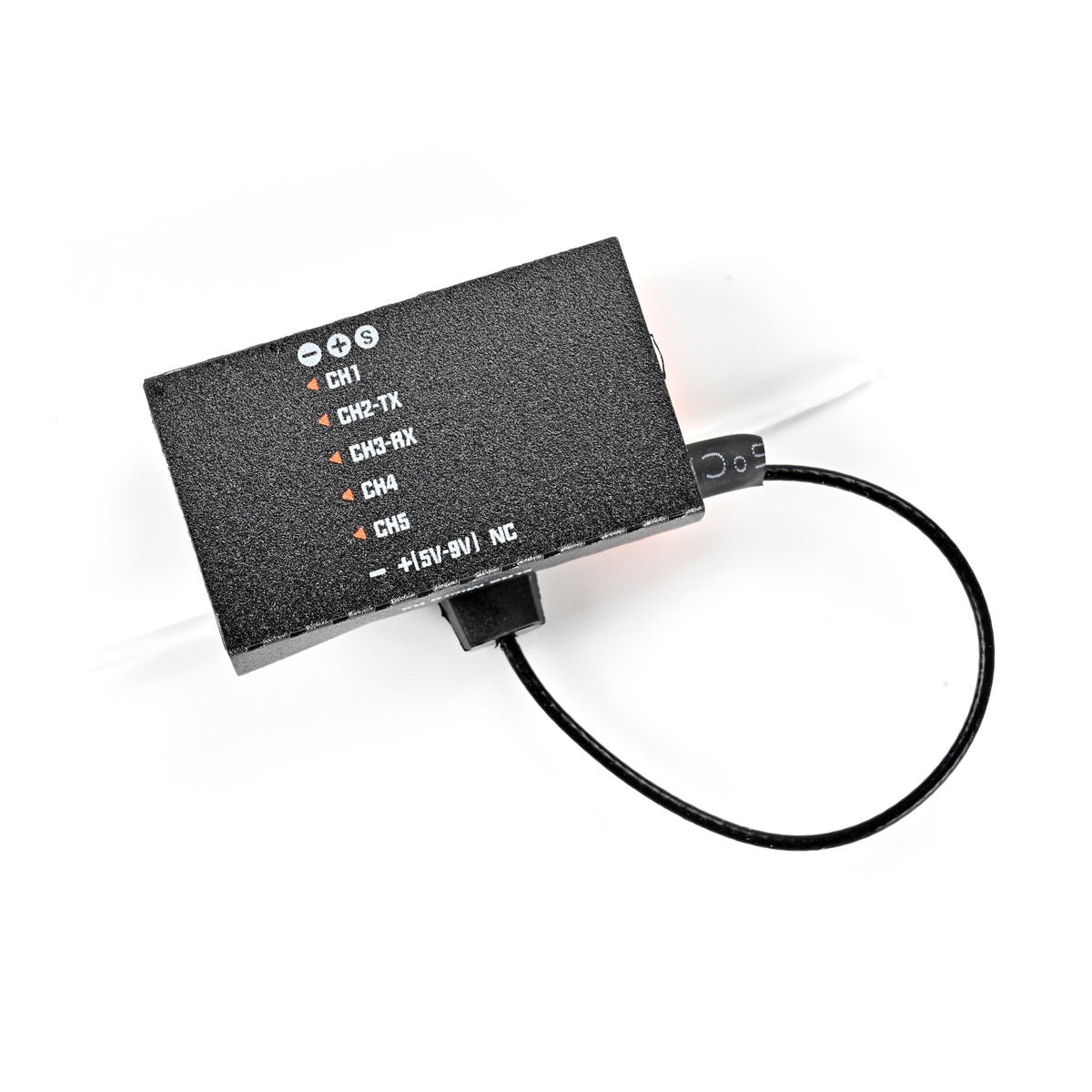

ExpressLRS now supports direct PWM output from receivers that have been specifically designed for this mode. BETAFPV ELRS Micro receiver features PWM output for the application of fixed-wing, helicopters, RC cars, boats and etc, and supports failsafe function, which can protect RC models from being out of control. Besides, the plug-and-play design makes it very easy and friendly to use.
Note: To work with PWM receiver, please make sure the TX and RX firmware is ELRS V2.0.0.
|SuperD RX||Micro RX||Nano RX||Lite RX|

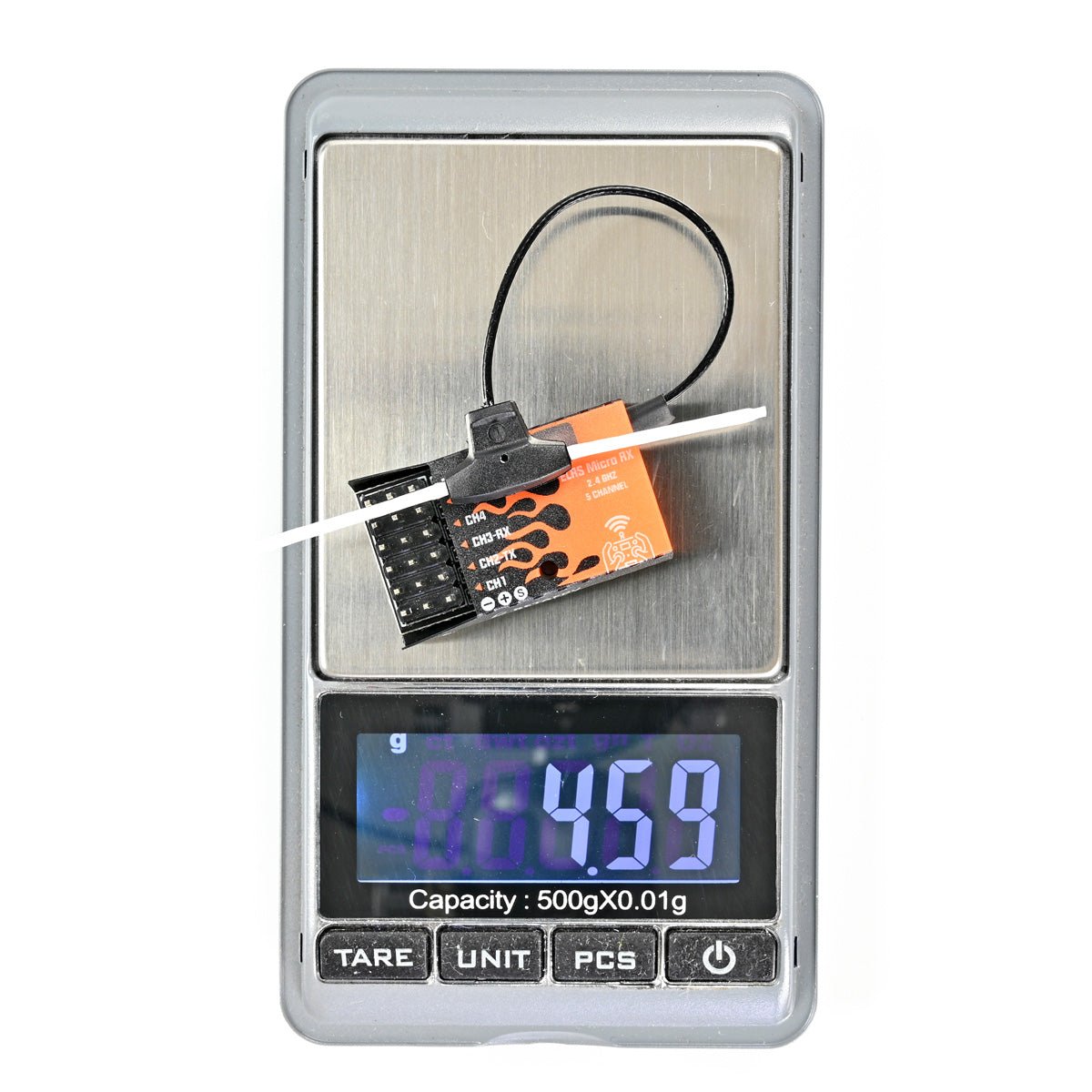

|Weight||1.1g (RX only)||3.5g (RX only)||0.7g (RX only)||0.47g (Tower), 0.53g (Flat)|
|Antenna||IPEX MHF + T antenna||IPEX MHF + T antenna||IPEX MHF + T antenna||SMD ceramic antenna|
|MCU||ESP32-PICO-D4, dual SX1280||ESP8285||ESP8285||ESP8285|
|RF Chip||Dual SX1280 + Dual PA||SX128X||SX1280 + PA, SX1276 + PA||SX128X|
|Frequency||2.4GHz ISM||2.4GHz ISM||2.4GHz ISM, 915MHz (FCC), 868MHz (EU)||2.4GHz ISM|
|Serial Output Protocol||CRSF||PWM or CRSF||CRSF||CRSF|
|Model Type||FPV Drone, Fixed-wing aircraft||Fixed-wing aircraft, Helicopter, RC Cars, RC Boats||FPV Drone||Whoop Drone|
