BetaFPV ELRS Lite 2.4GHz Recevier (Flat Antenna)
AVAILABILITY: Out Of Stock
$22.00
Out of stock
BETAFPV ELRS Lite receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.
Tower Antenna or Flat Antenna

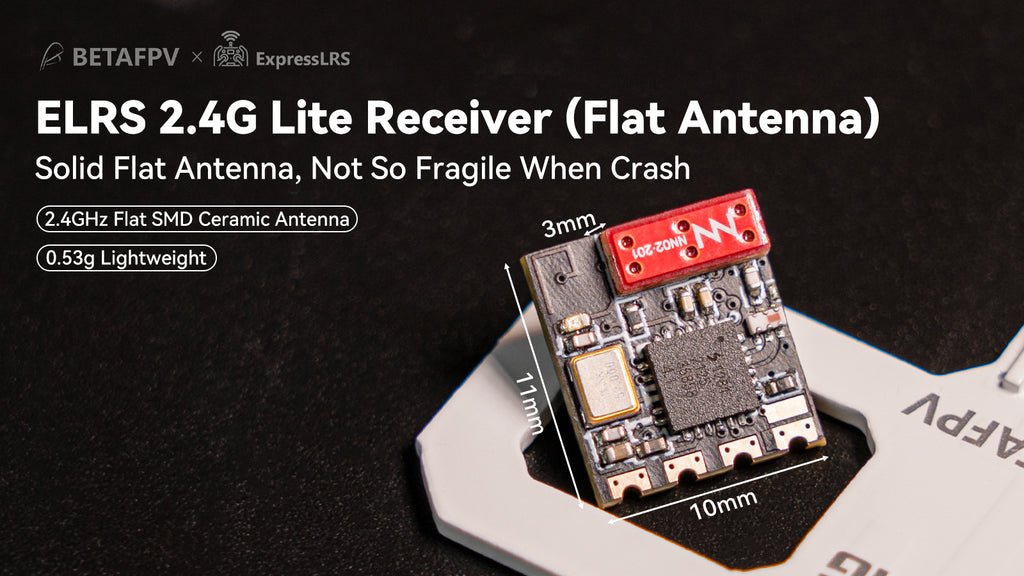

New lite receiver with a flat antenna features a 3mm extra-thin board and 0.53g lightweight, which requires less assembly space on drones with limited space. Besides, solid flat antenna without irregular parts can withstand crashes, making the receiver not so fragile.

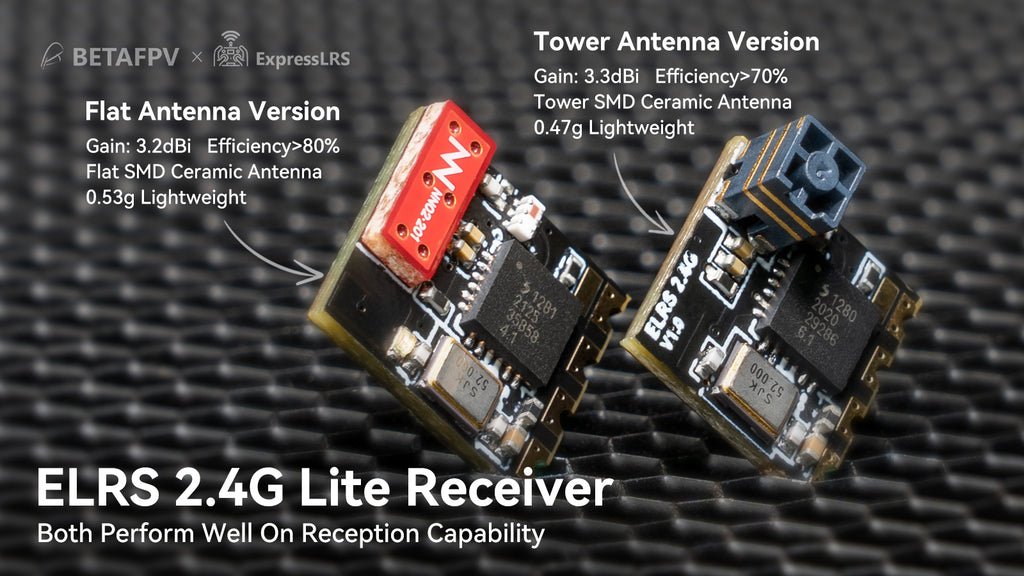

Whatever tower antenna or flat antenna, both versions perform well in control, range and stability, bringing a good flight experience to pilots. Below chart is the basic information for two antennas. It is shown that both antennas have almost the same performance in gain. However, the efficiency for flat antenna is better than tower antenna. In spite of that, tower antenna and flat antenna can reach the range of about 600m by using TX with the same output power and frequency.
| Tower Antenna | Flat Antenna | |
| Weight | 0.47g | 0.53g |
| Size | 10mm*10mm*6mm | 11mm*10mm*3mm |
| Gain | 3.3dBi | 3.2dBi |
| Radio Efficiency | >70% | >80% |
| Return Loss | <-7 | <-7 |
| Range (TX 100mW 150Hz) | About 600m | About 600m |
| SuperD RX | Micro RX | Nano RX | Lite RX | |
| Weight | 1.1g (RX only) | 3.5g (RX only) | 0.7g (RX only) | 0.47g (Tower), 0.53g (Flat) |
| Antenna | IPEX MHF + T antenna | IPEX MHF + T antenna | IPEX MHF + T antenna | SMD ceramic antenna |
| MCU | ESP32-PICO-D4, dual SX1280 | ESP8285 | ESP8285 | ESP8285 |
| RF Chip | Dual SX1280 + Dual PA | SX128X | SX1280 + PA, SX1276 + PA | SX128X |
| Frequency | 2.4GHz ISM | 2.4GHz ISM | 2.4GHz ISM, 915MHz (FCC), 868MHz (EU) | 2.4GHz ISM |
| Telemetry Power | 100mW | 17mW | 100mW | 17mW |
| Serial Output Protocol | CRSF | PWM or CRSF | CRSF | CRSF |
| Model Type | FPV Drone, Fixed-wing aircraft | Fixed-wing aircraft, Helicopter, RC Cars, RC Boats | FPV Drone | Whoop Drone |
