AOS 3.5 EVO Freestyle Frame

AVAILABILITY: In Stock (1 items)

$95.00

Brand: AOS

1 in stock

or 6 weekly interest-free payments from $15.83 with Laybuy what's this?

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

  Share

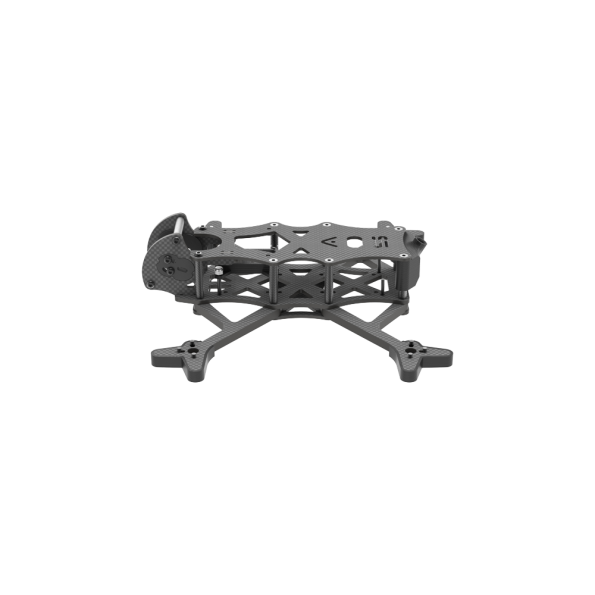

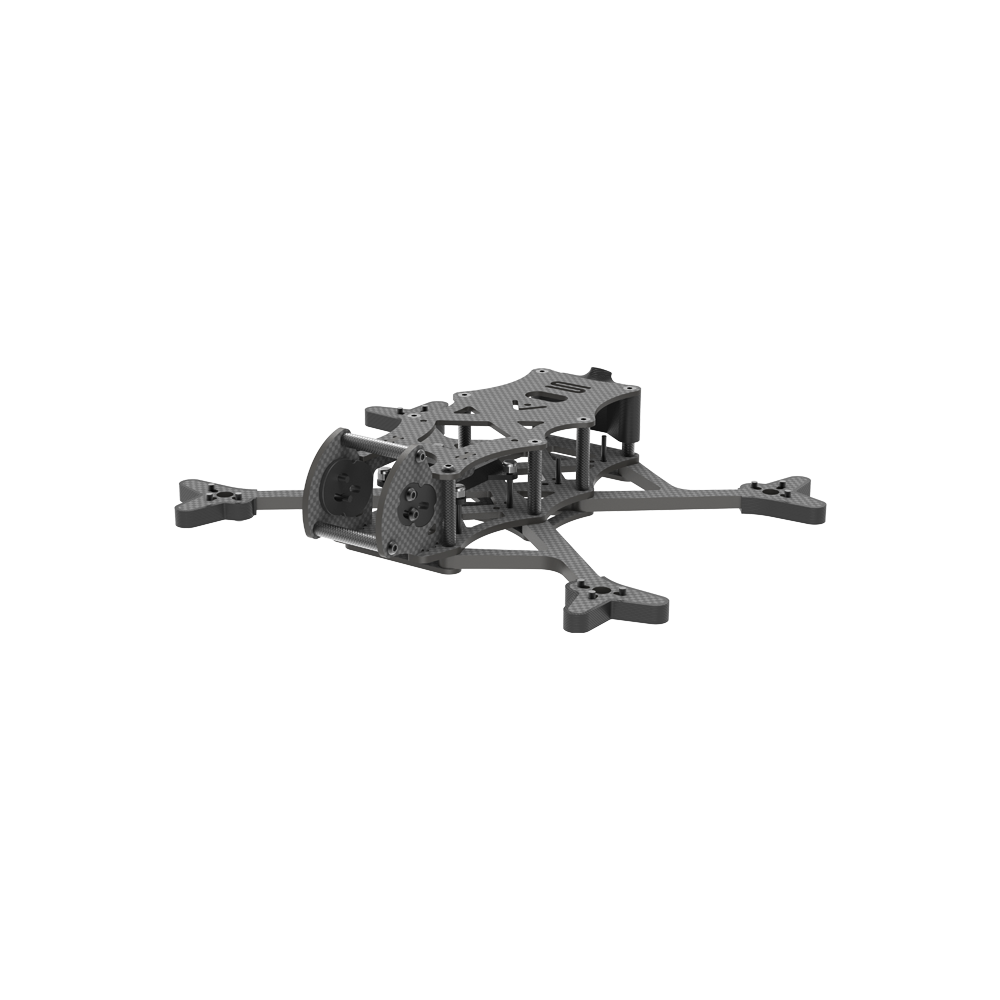

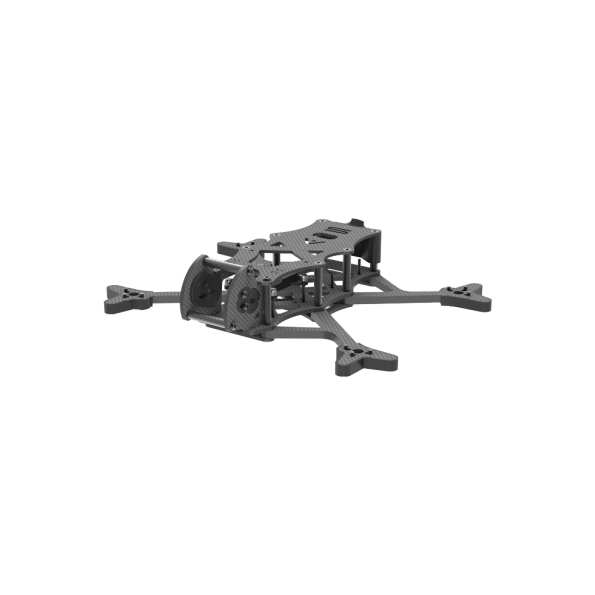

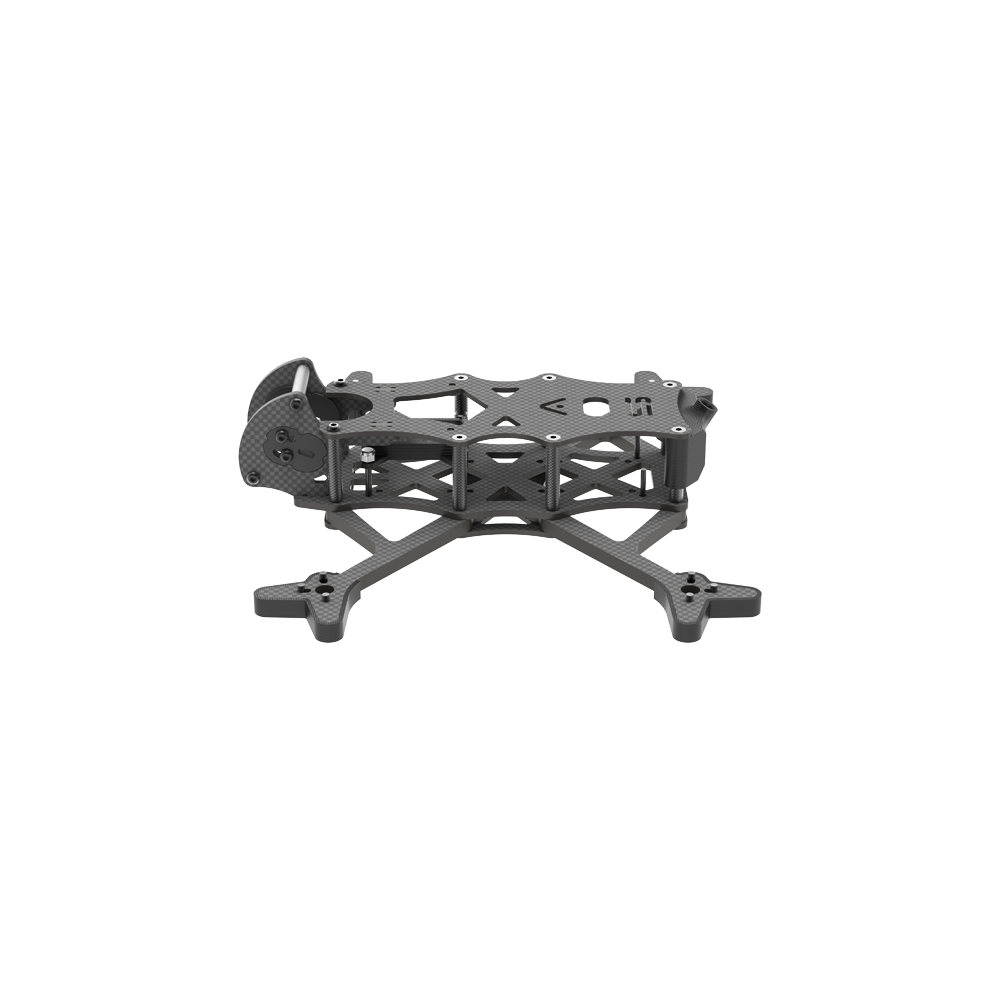

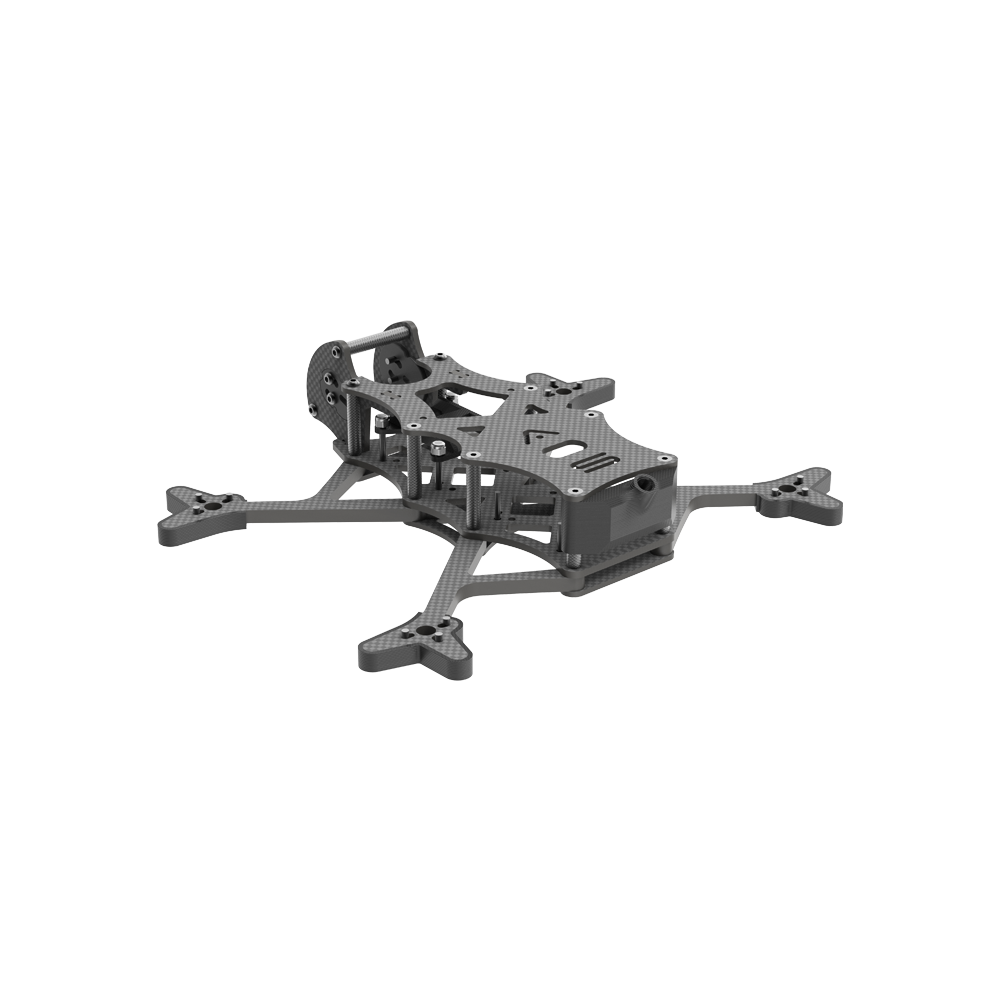

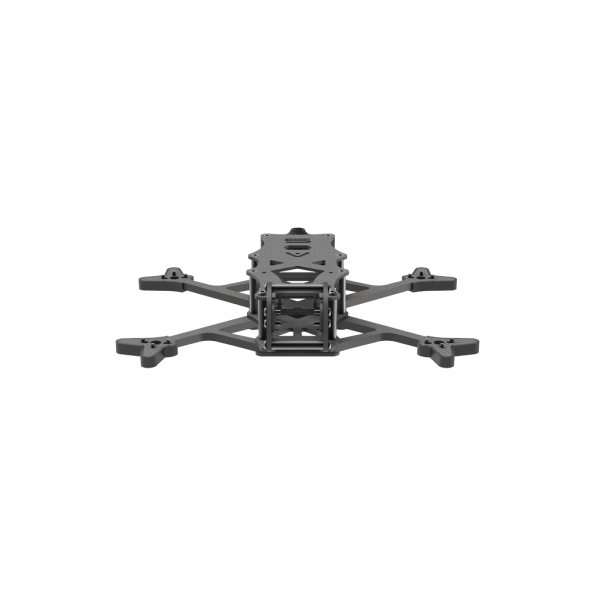

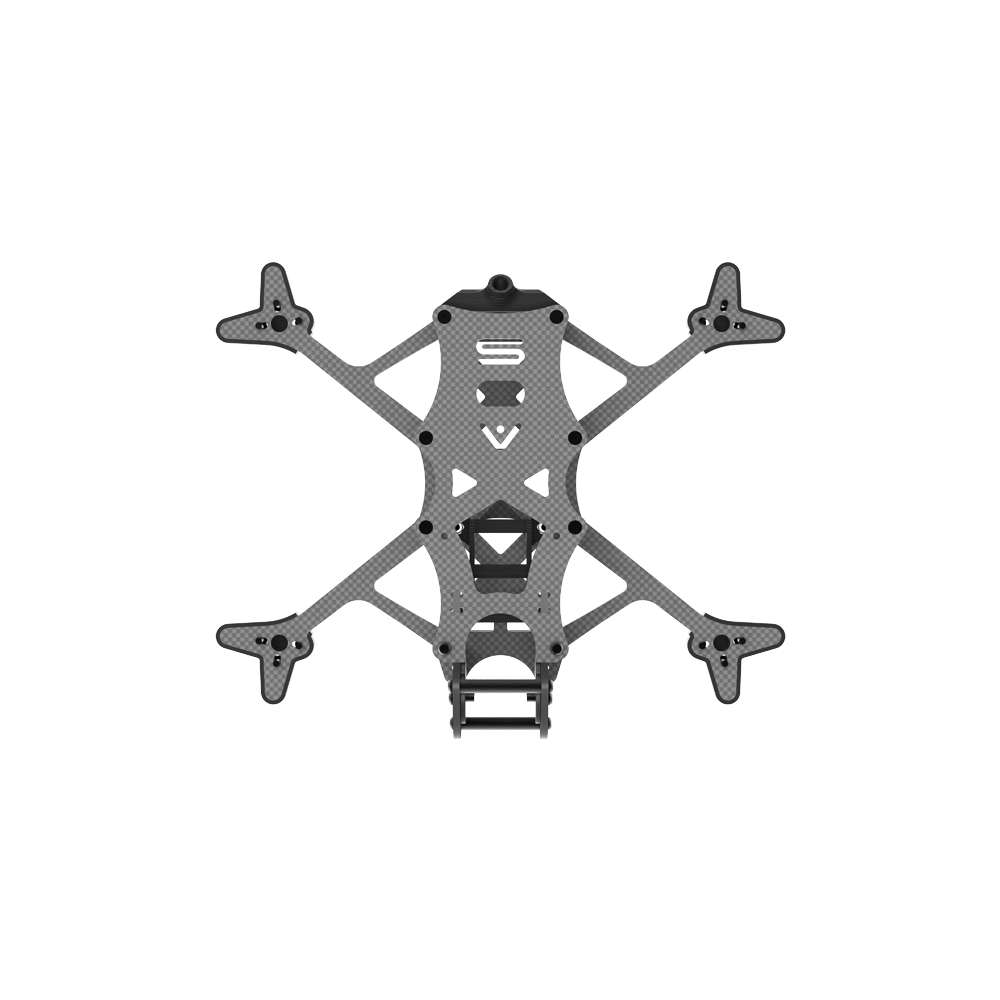

The AOS 03 EVO Frame Kit has been designed to deliver the ultimate freestyle flight experience. The unique arm geometry has been refined through topology optimization to deliver maximum strength and stiffness for minimum weight. The same technology is used to optimize aircraft, satellites, and race cars.

The new arm geometry provides even more stiffness in key directions as well as improved durability in a front impact. The 3-screw motor mounting reduces weight and removes the motor hole that can be a stress riser for compressive failure. This version has been specially designed to house the DJI O3 Air Unit.

Features

  • Approx. 50g with all hardware
  • Designed for up to 3.5 inch props
  • 160mm wheelbase
  • 4 mm Arms
  • One 25.5×25.5 or 20×20 mm stack in the front and one 25.5×25.5 or 20×20 mm stack in the rear OR
  • One 25.5×25.5 or 20×20 mm stack in the centre
  • Fits the DJI O3 Air Unit, Caddx Vista or HDZero Whoop VTX perfectly
  • Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras
  • Motor mounting 9×9 up to 12×12 (1404, 1504, 1505 recommended)
  • Standoffs, frame and screws included

Note: This is a frame kit only. All other parts are not included. Assembly required.

AOS 3.5 EVO Frame

  • Product Name: AOS 3.5 EVO Frame Kit
  • Frame wheelbase: 162mm
  • Frame Dimension: L94.5*W131*H29 mm
  • Arm Thickness: 4mm
  • Top Plate Thickness: 1.5mm
  • Bottom Plate Thickness: 2mm
  • Upper Plate Thickness: 1.5mm
  • Motor Mounting: 9x9mm-φ2mm
  • VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm

Includes

  • 1 x AOS 3.5 EVO Frame Kit
  • 1 x TPU Parts
  • 4 x Motor Wire Shield Tube
  • 1 x Screw Bag
  • 2 x Battery Strap
